Removal Procedure
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
- Inspect the fluid level in the brake master cylinder reservoir.
- If the brake fluid level is midway between the maximum-full point and the minimum allowable level, no brake fluid needs to be removed from the reservoir before proceeding.
- If the brake fluid level is higher than midway between the maximum-full point and the minimum allowable level, remove brake fluid to the midway point before proceeding.
- Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (ATS)Lifting and Jacking the Vehicle (ATS-V) .
- Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation (Non V-Series)Tire and Wheel Removal and Installation (V-Series) .
- Hold the ends of the brake pad spring down and carefully drive out the brake caliper pins (1) from the brake caliper.
- Remove the brake pad spring (1).
- Using a spreader tool, carefully push the brake caliper pistons into the caliper bores until fully seated.

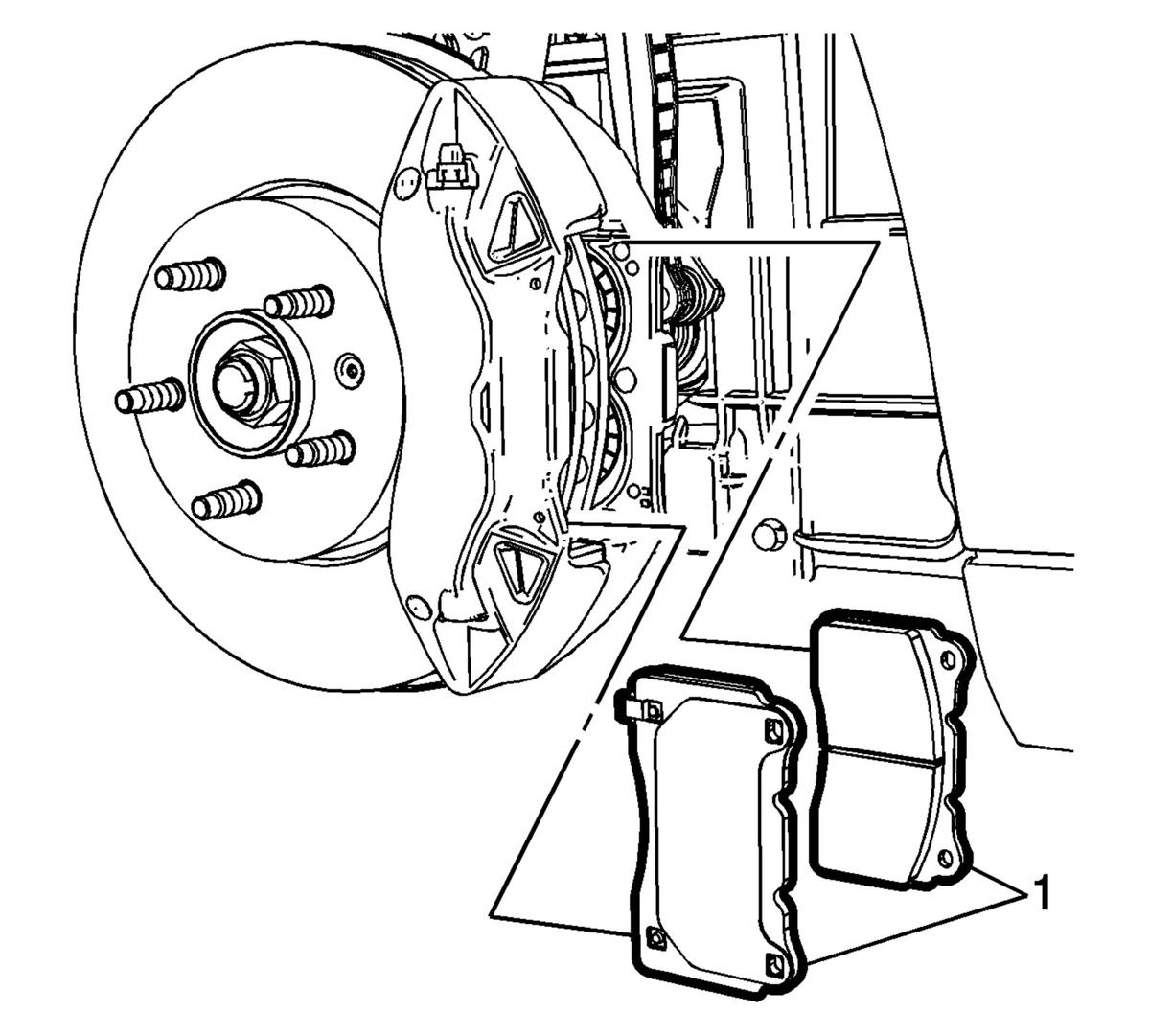

- Remove the brake pads (1).
