Removal Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
    WARNING:

    Refer to Brake Dust Warning .

  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (ATS)Lifting and Jacking the Vehicle (ATS-V) .
  2. Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation (Non V-Series)Tire and Wheel Removal and Installation (V-Series) .
  3. Remove the front brake rotor. Refer to Front Brake Rotor Replacement (JE5) Front Brake Rotor Replacement (J55) .

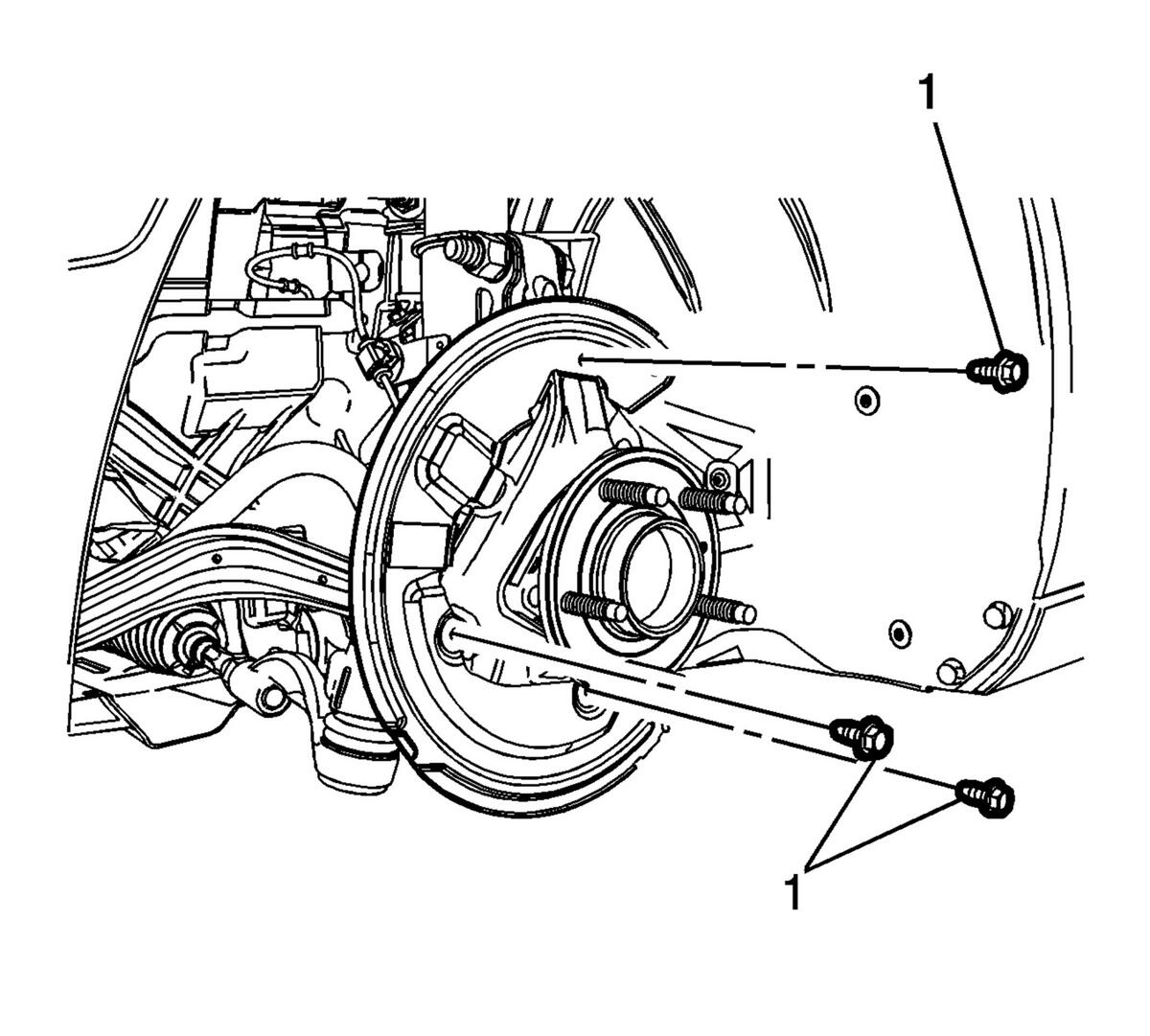

    4. Fig 1: Front Brake Shield Bolts
    GM2811297Courtesy of GENERAL MOTORS COMPANY
  4. Remove the front brake shield bolts (1).

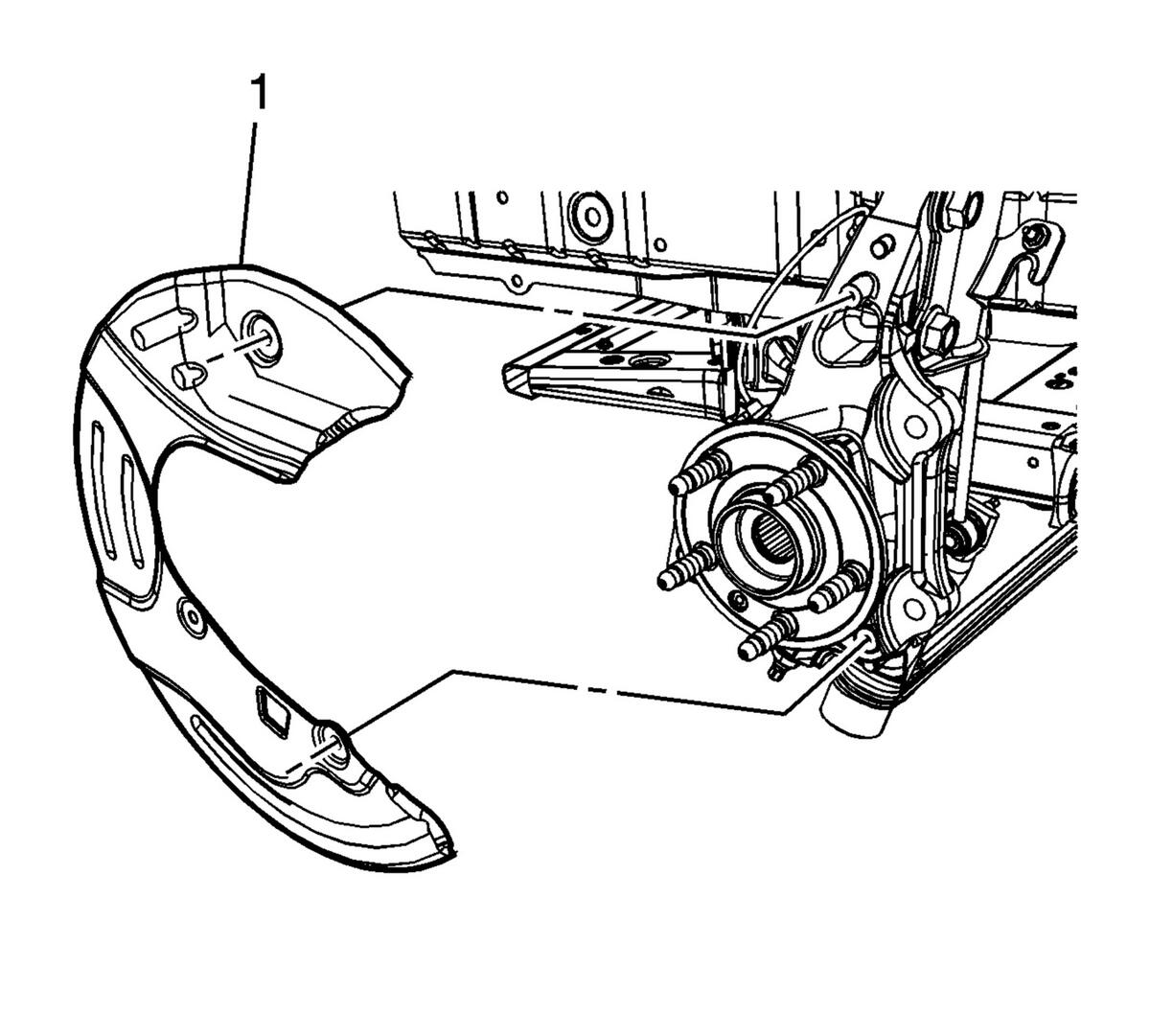

    5. Fig 2: Front Brake Shield
    GM2202090Courtesy of GENERAL MOTORS COMPANY
  5. Remove the front brake shield (1).
