Removal Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:

Brake Dust Warning

  1. Raise and support the vehicle. Lifting and Jacking the Vehicle (ATS)Lifting and Jacking the Vehicle (ATS-V)
  2. Remove Tire and Wheel.Tire and Wheel Removal and Installation (Non V-Series)Tire and Wheel Removal and Installation (V-Series)
  3. Remove Front Brake Rotor.Front Brake Rotor Replacement (J6G)

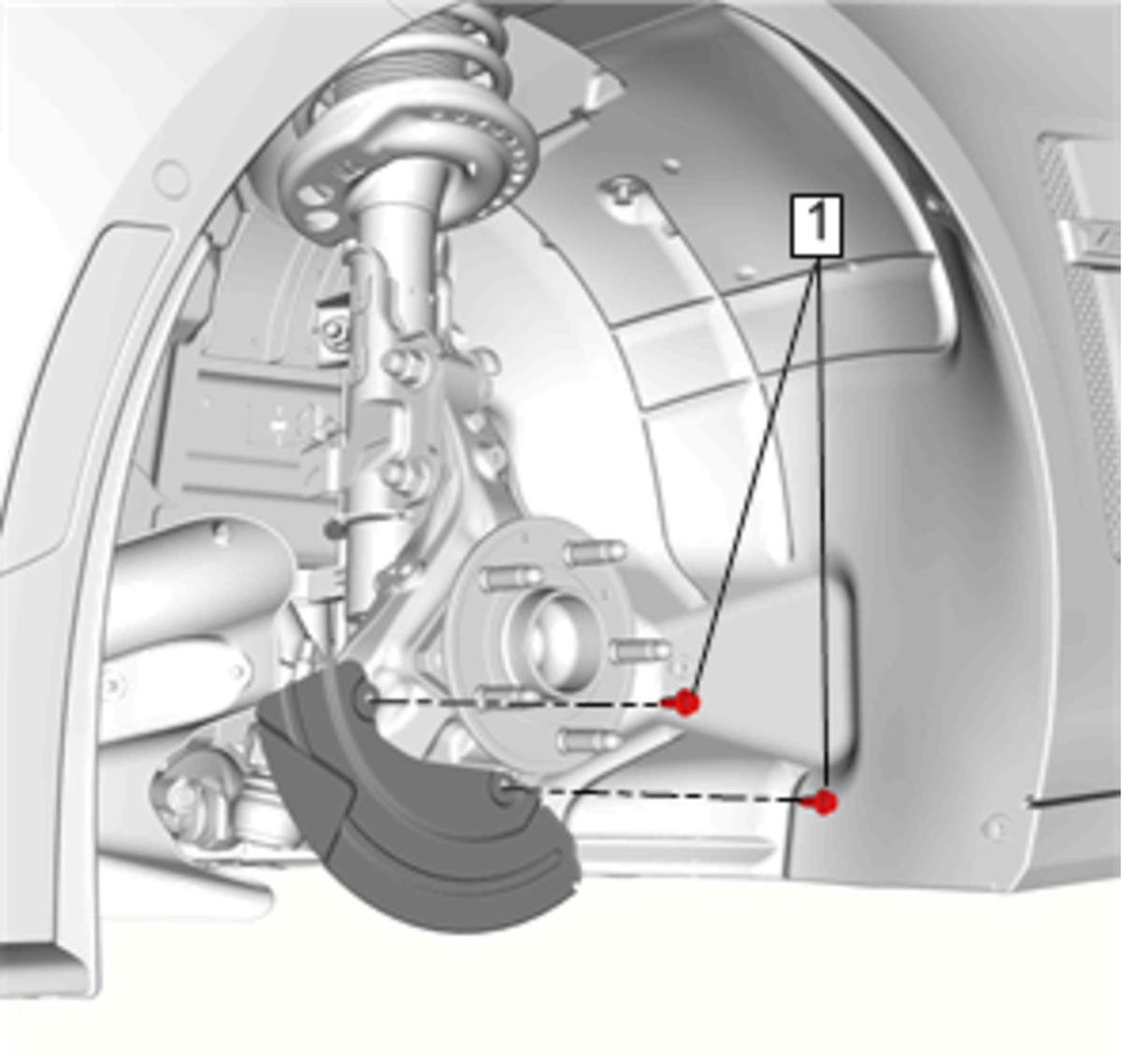

    4. Fig 1: Front Brake Shield Bolt
    GM4004112Courtesy of GENERAL MOTORS COMPANY
  4. Remove Front Brake Shield Bolt (1)

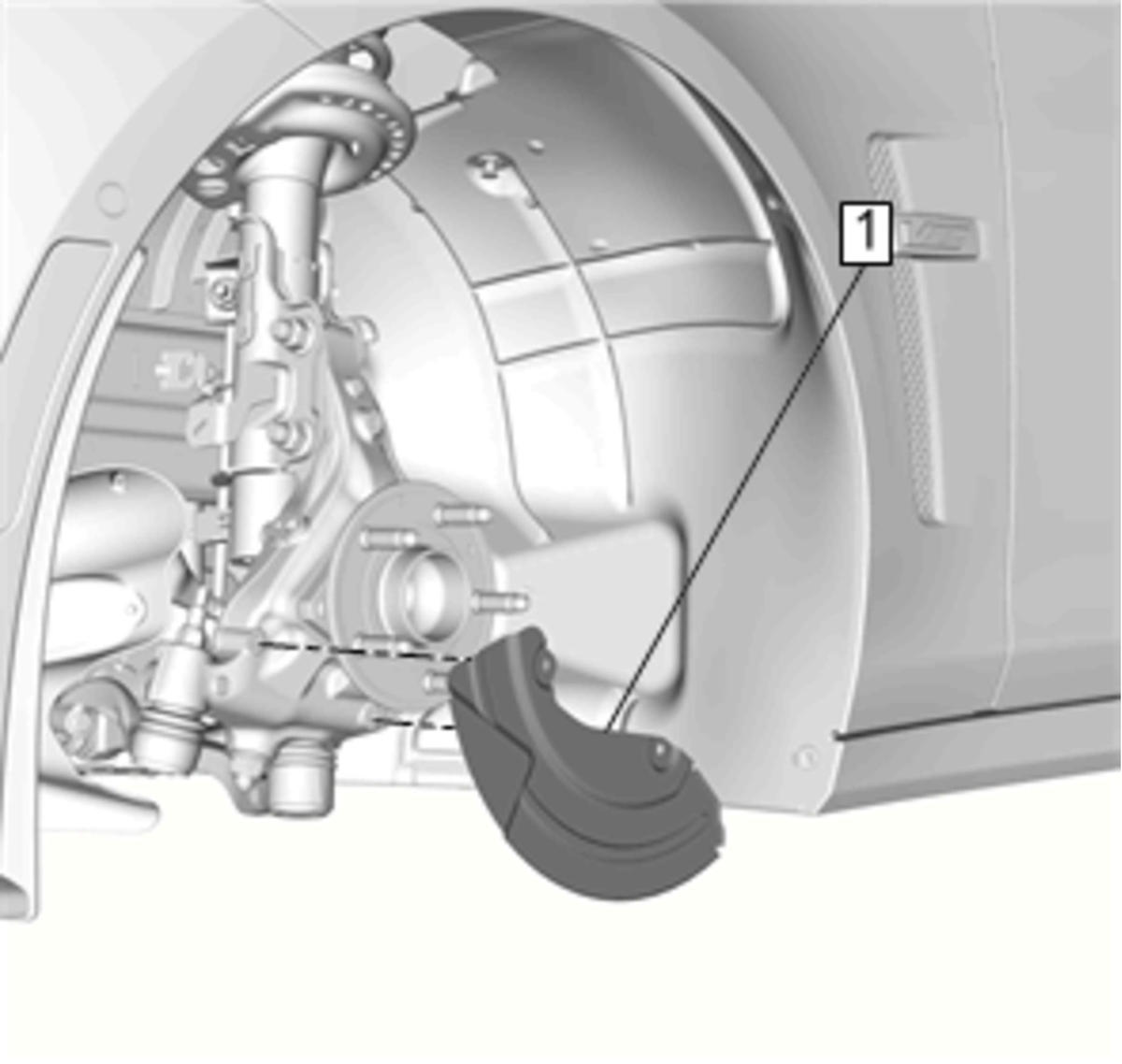

    5. Fig 2: Front Brake Shield
    GM4004116Courtesy of GENERAL MOTORS COMPANY
  5. Remove Front Brake Shield (1)
