Removal Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (ATS)Lifting and Jacking the Vehicle (ATS-V) .
  2. Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation (Non V-Series)Tire and Wheel Removal and Installation (V-Series) .

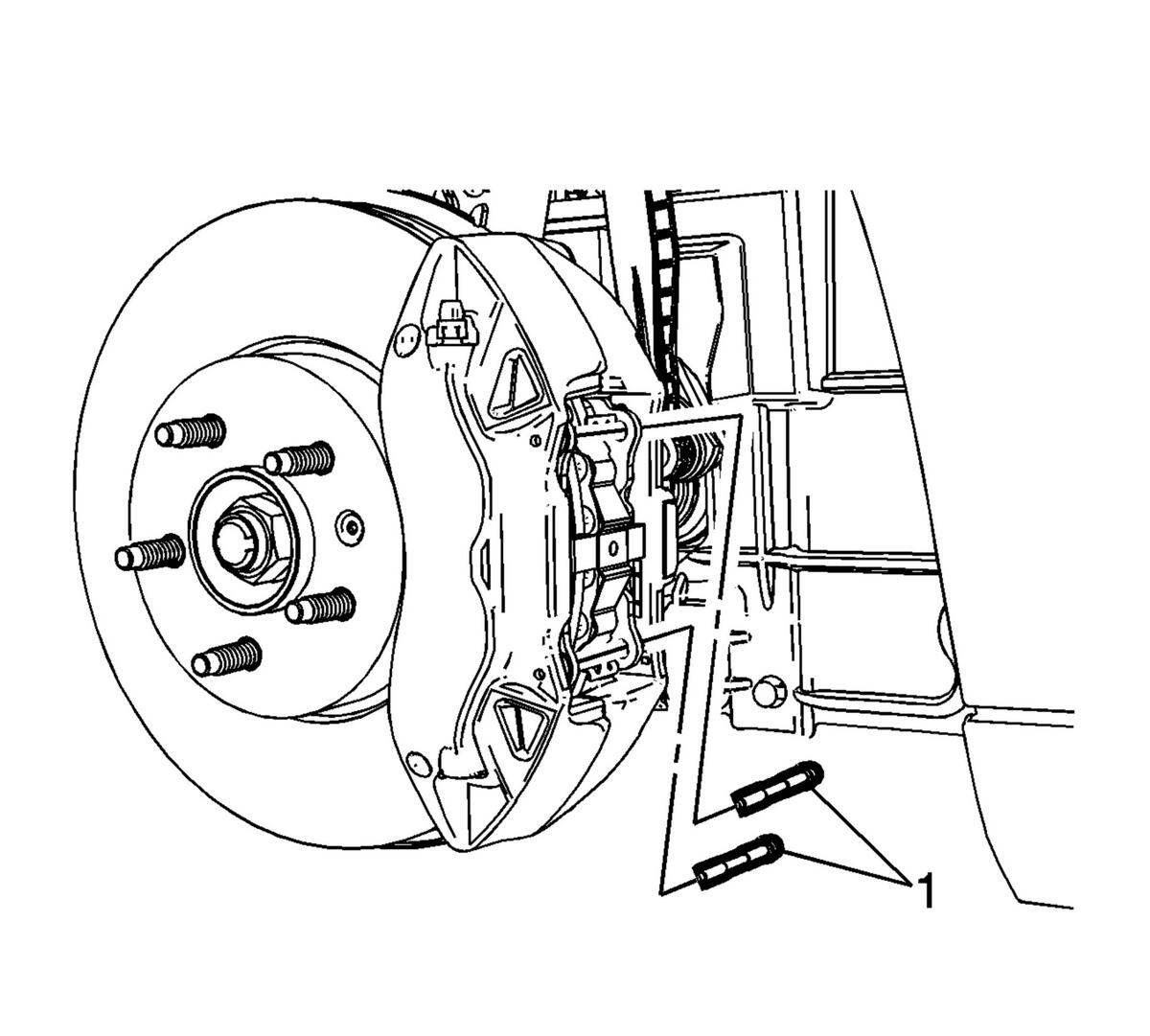

    3. Fig 1: Brake Caliper Pins
    GM2827318Courtesy of GENERAL MOTORS COMPANY
  3. Hold the ends of the brake pad spring down and carefully drive out the brake pad pins (1) from the brake caliper.

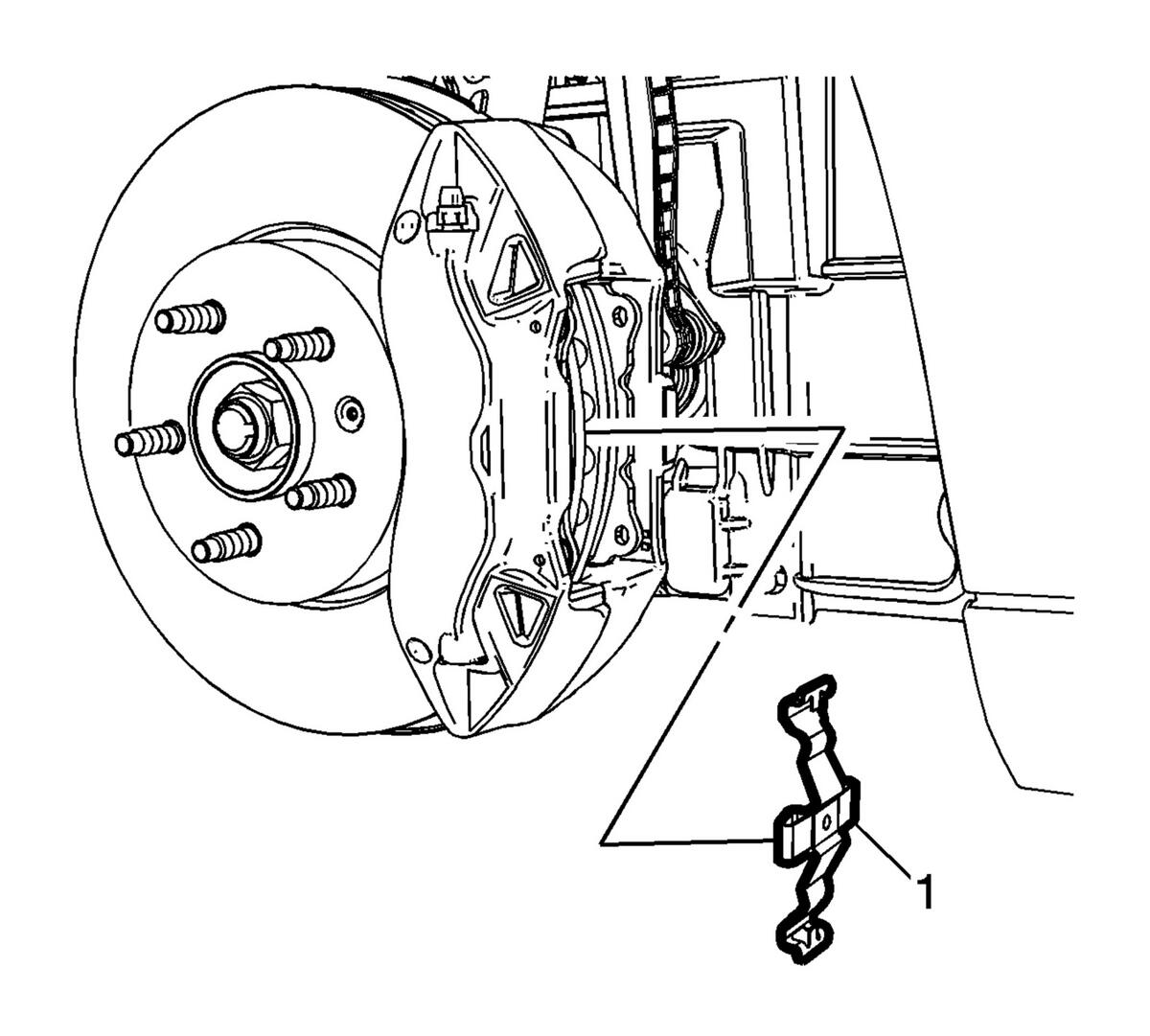

    4. Fig 2: Brake Pad Spring
    GM2827321Courtesy of GENERAL MOTORS COMPANY
  4. Remove the brake pad spring (1).
