Installation Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

Install the brake hose to the vehicle.

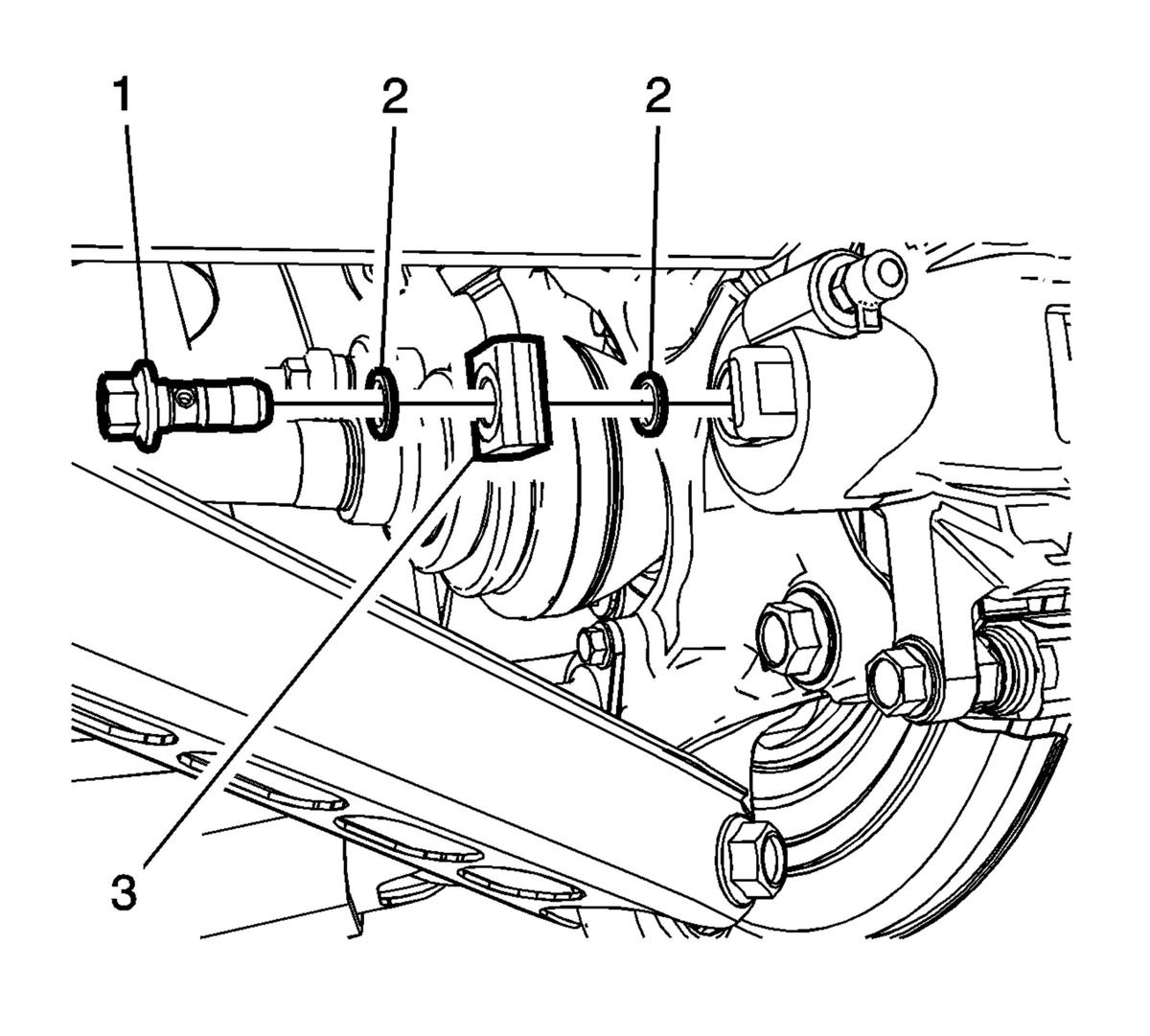

Fig 1: Brake Hose Fitting, Bolt And Gaskets

Courtesy of GENERAL MOTORS COMPANY

Assemble new brake hose fitting gaskets (1) to the brake hose fitting bolt (2) and the brake hose fitting (3).

CAUTION:

Refer to Fastener Caution .

Install the brake hose assembly to the brake caliper and tighten the brake hose fitting bolt to 49 N.m (36 lb ft).

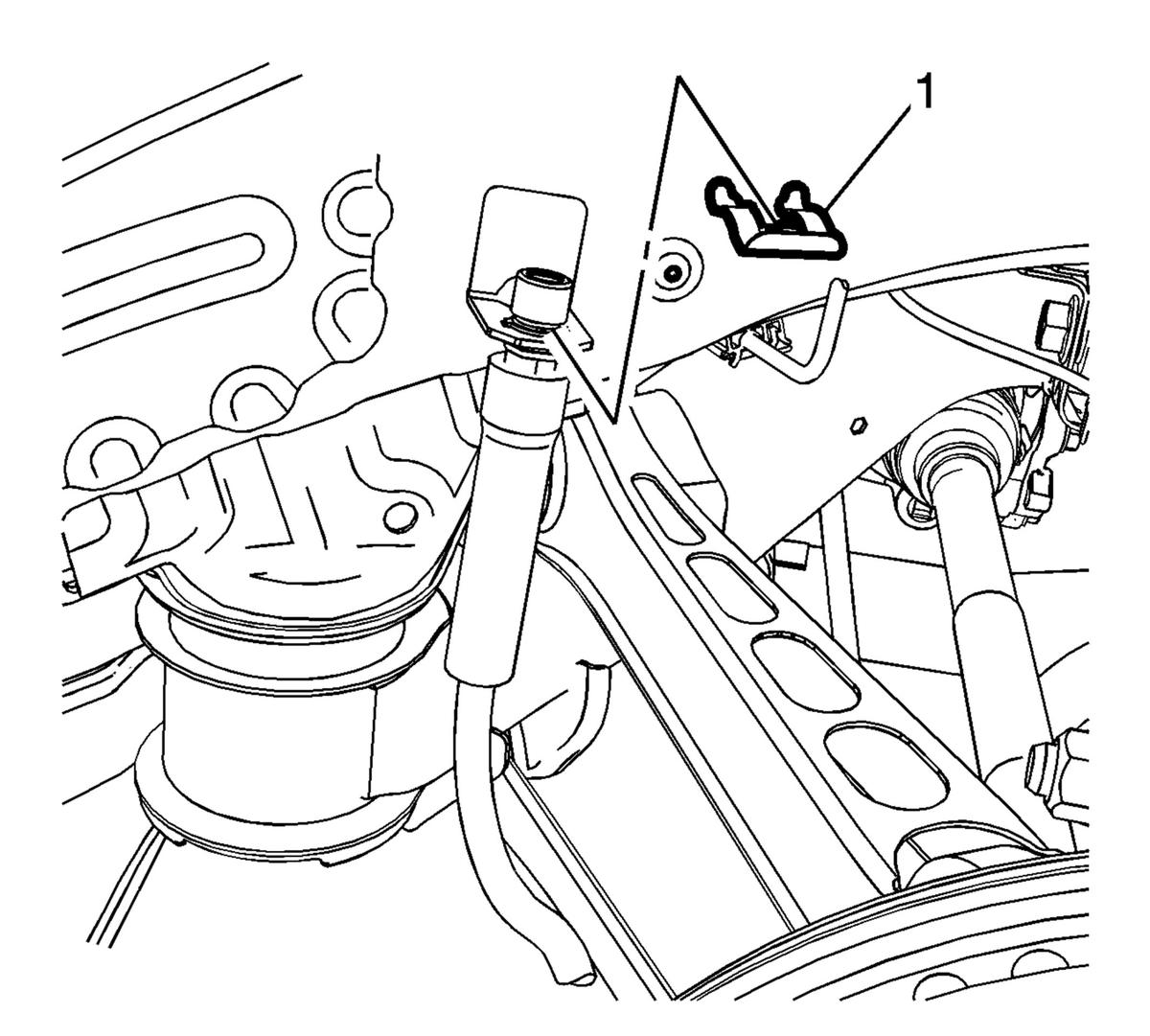

Fig 2: Brake Hose Retaining Clip

Courtesy of GENERAL MOTORS COMPANY

Install the brake hose retaining clip (1).

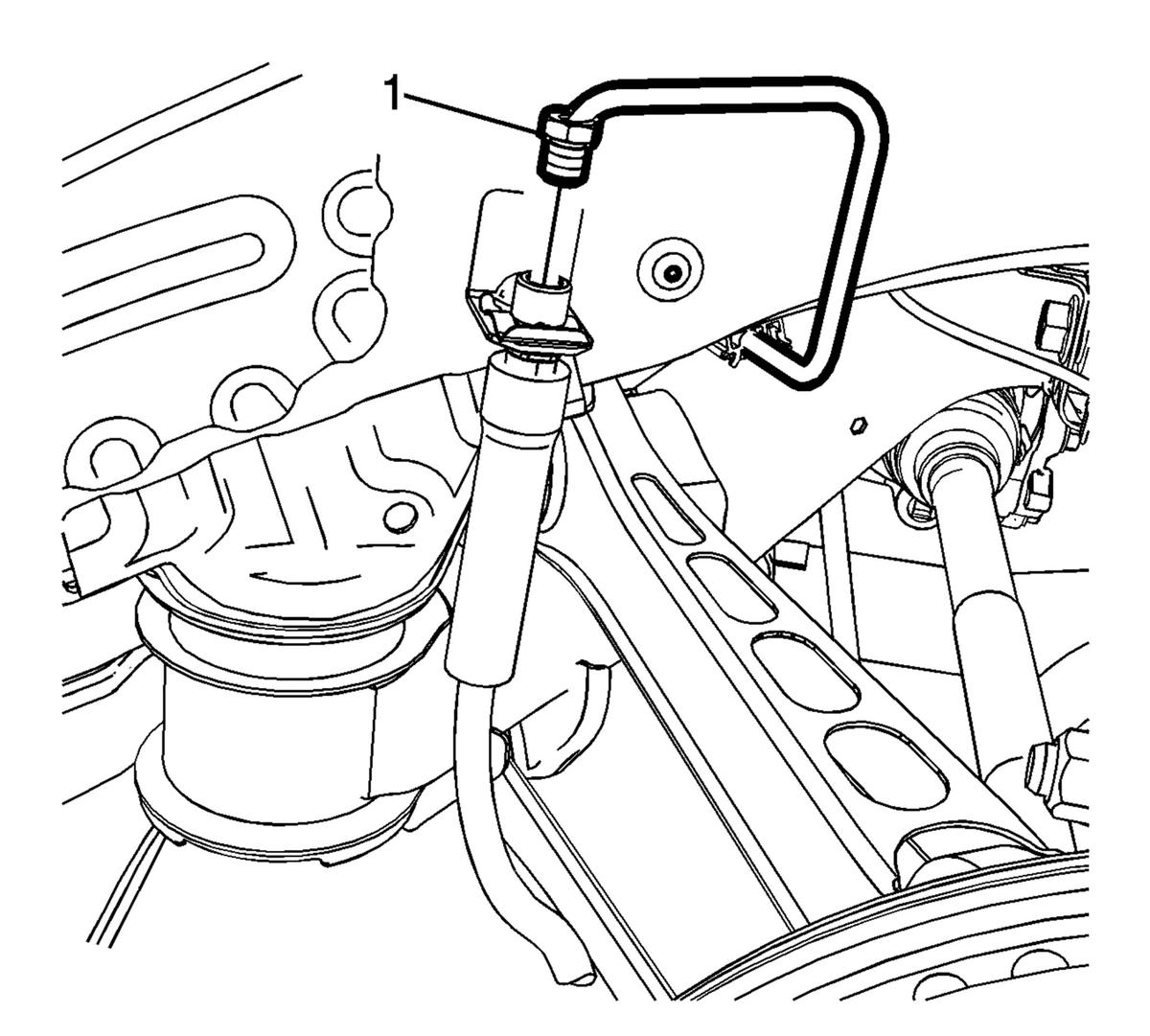

Fig 3: Brake Pipe Fitting At Brake Hose

Courtesy of GENERAL MOTORS COMPANY

Connect the brake pipe fitting (1) to the brake hose.
Tighten the brake pipe fitting to 18 N.m (13 lb ft).
Bleed the hydraulic brake system. Refer to Hydraulic Brake System Bleeding (Manual) Hydraulic Brake System Bleeding (Pressure) .
Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation (Non V-Series)Tire and Wheel Removal and Installation (V-Series) .
