Installation Procedure
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
- Install Rear Brake Hose

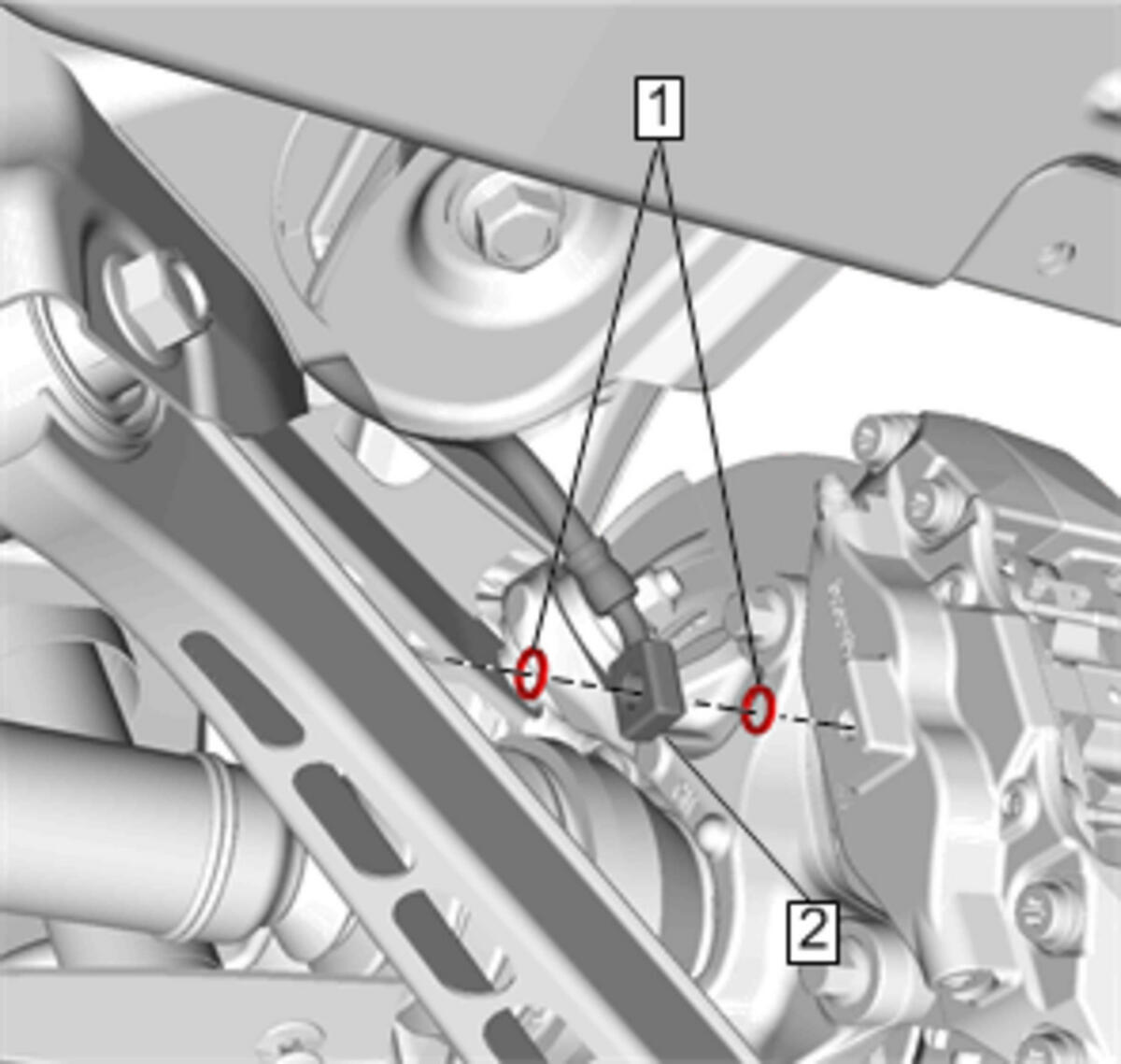

- Install Brake Hose Fitting Gaskets (1) (Qty: 2) @ Rear Brake Hose (2)

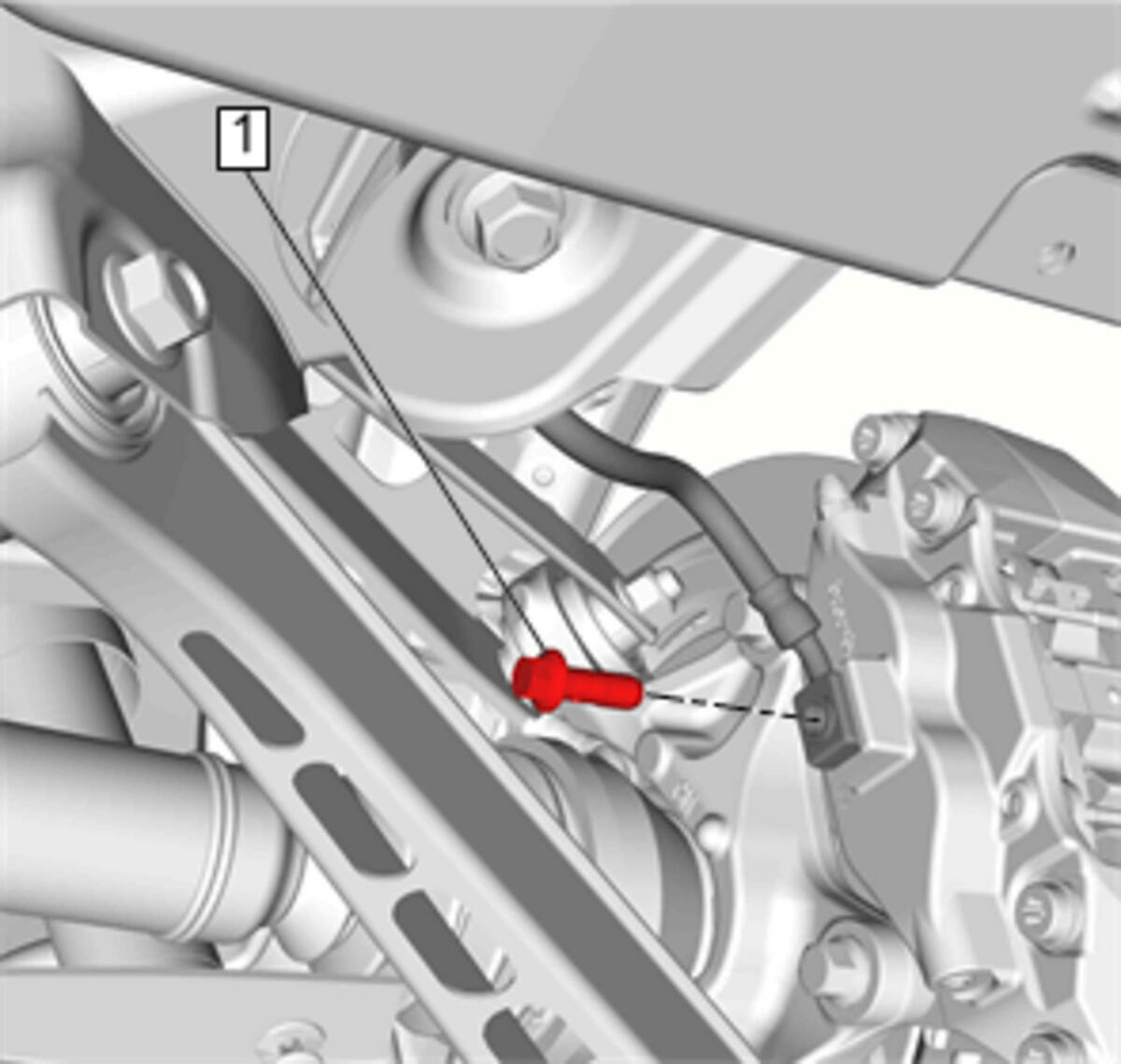

- Install Brake Hose Fitting Bolt (1) 52 N.m (38 lb ft)

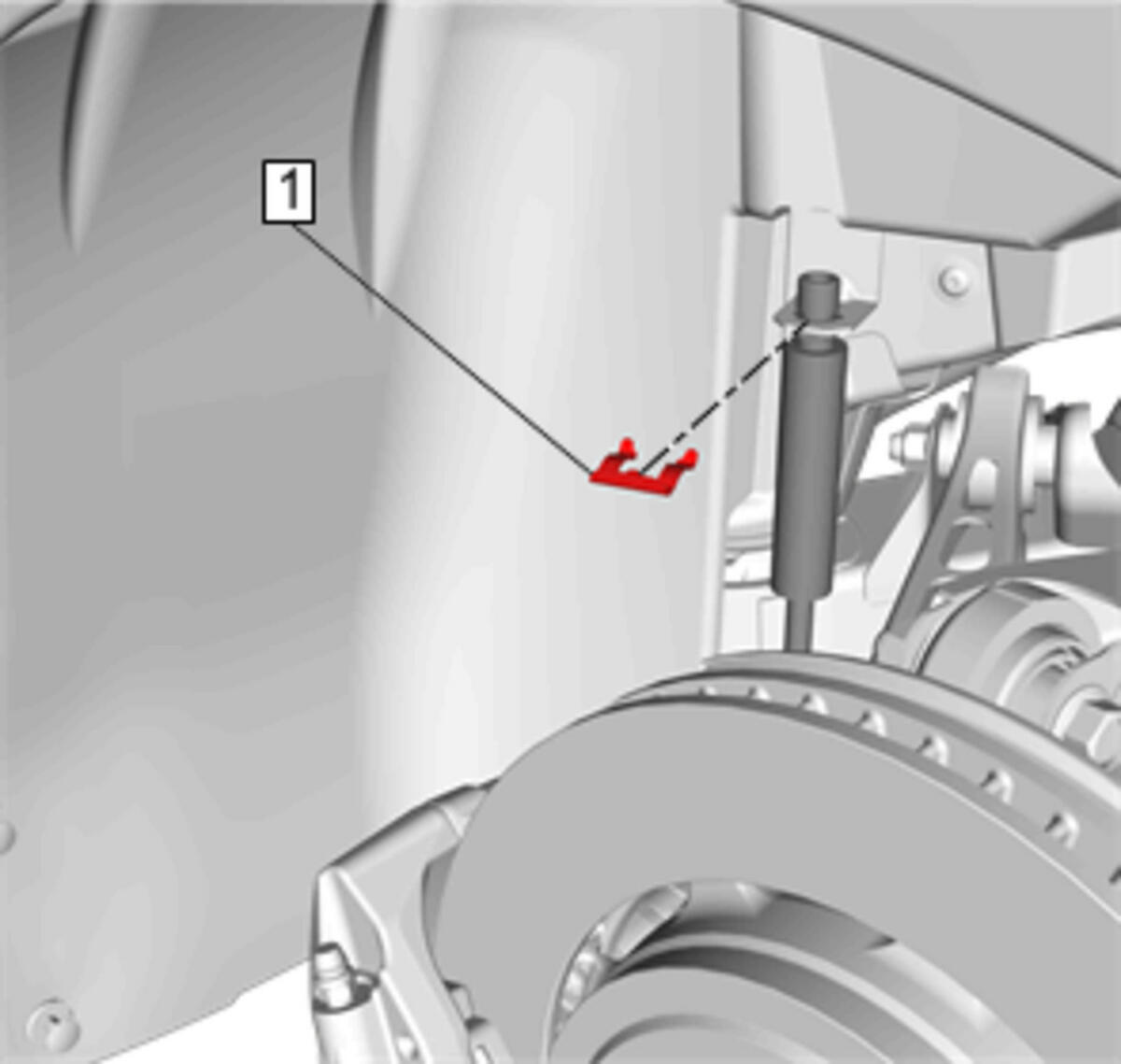

- Install Brake Hose Retainer (1)

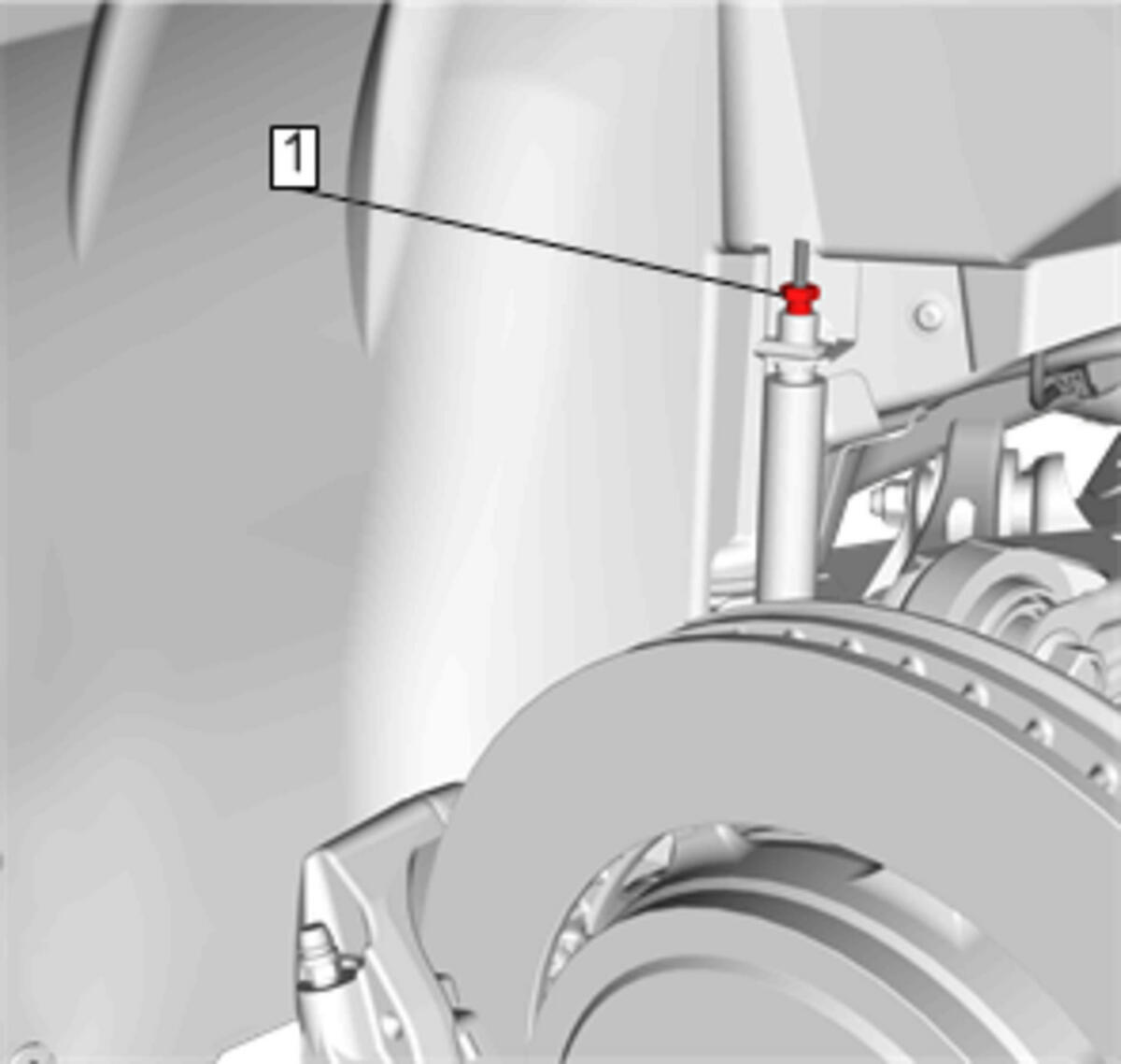

- Install Brake Pipe Fitting (1) 18 N.m (13 lb ft)
- Bleed the brake system. Refer to Hydraulic Brake System Bleeding (Manual) Hydraulic Brake System Bleeding (Pressure)
- Install tire and wheel assembly. Refer to Tire and Wheel Removal and Installation (Non V-Series)Tire and Wheel Removal and Installation (V-Series)
CAUTION:
Refer to Fastener Caution .
