Removal Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply the brake pedal several times until the pedal becomes firm to deplete the vacuum reserve in the brake booster.
  2. Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement .
  3. Remove the outer fuel pump insulator. Refer to Fuel Pump Insulator Replacement (Outer) .
  4. Disconnect the power brake booster vacuum sensor electrical connector.

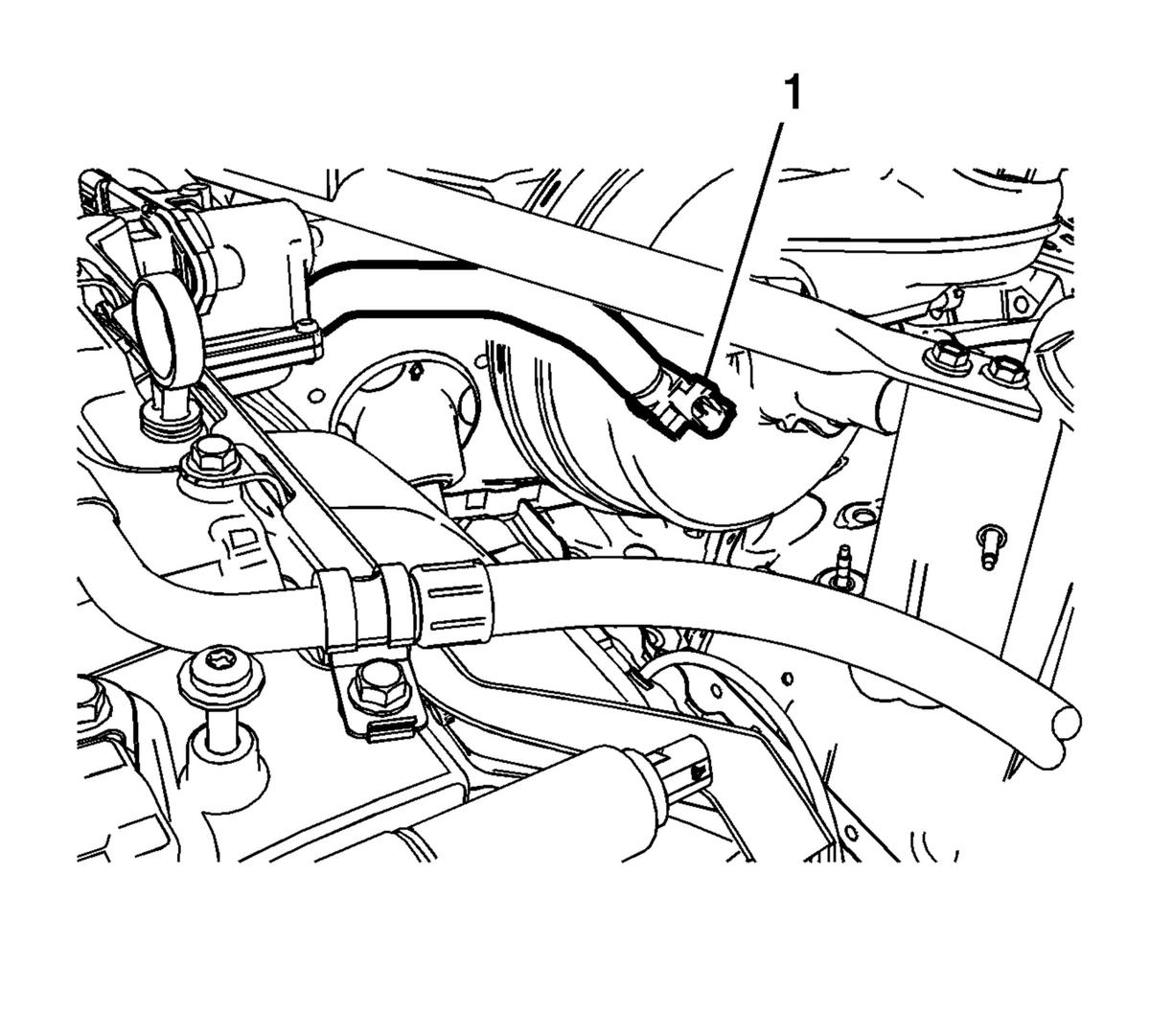

    5. Fig 1: Power Brake Booster Vacuum Sensor And Hose
    GM2835114Courtesy of GENERAL MOTORS COMPANY
  5. Remove the power brake booster vacuum sensor and hose (1) from the power brake booster.

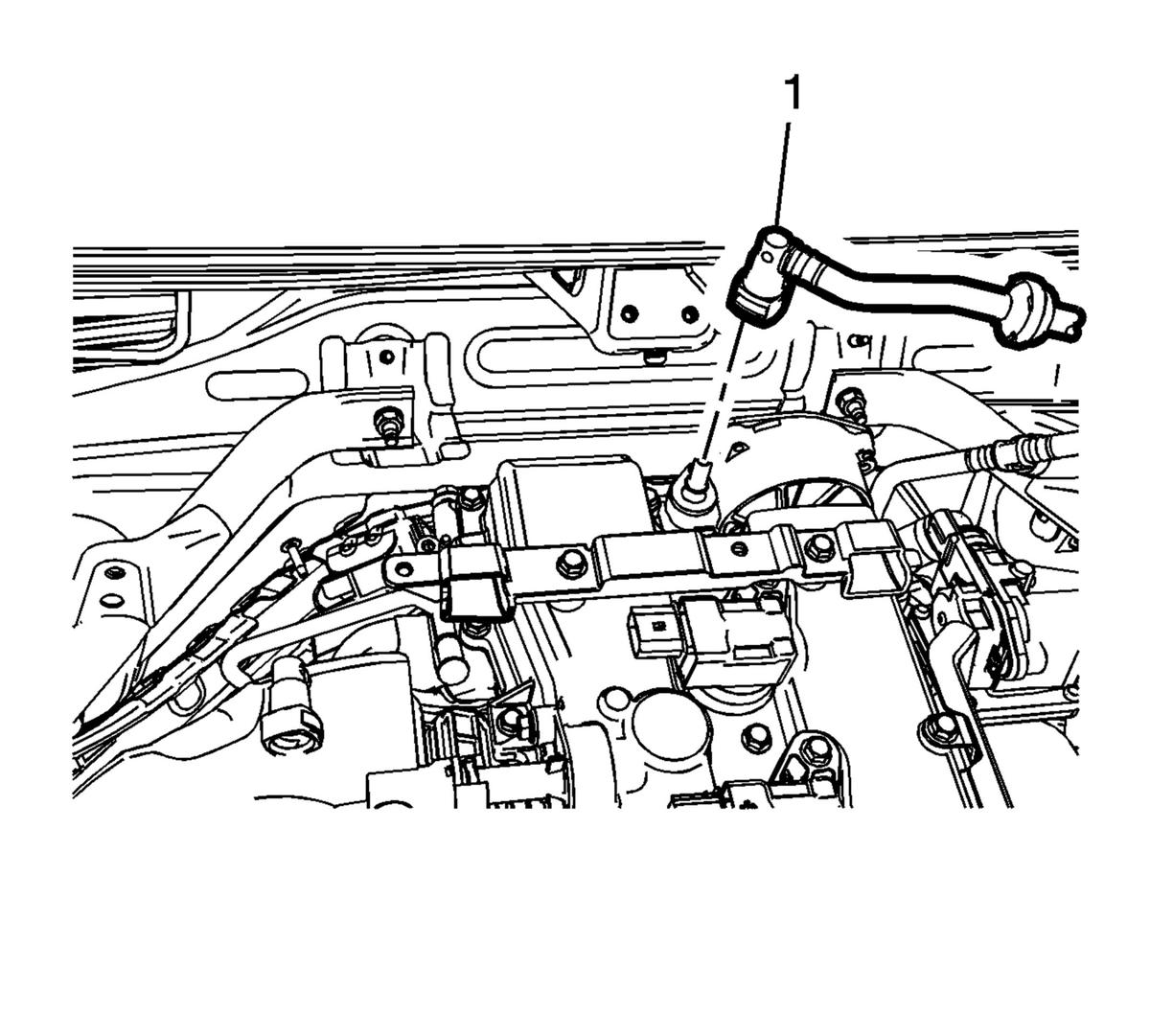

    6. Fig 2: Power Brake Booster Vacuum Hose Quick Connect
    GM2835143Courtesy of GENERAL MOTORS COMPANY
  6. Release the power brake booster vacuum hose quick connect (1) from the power brake booster vacuum pump.

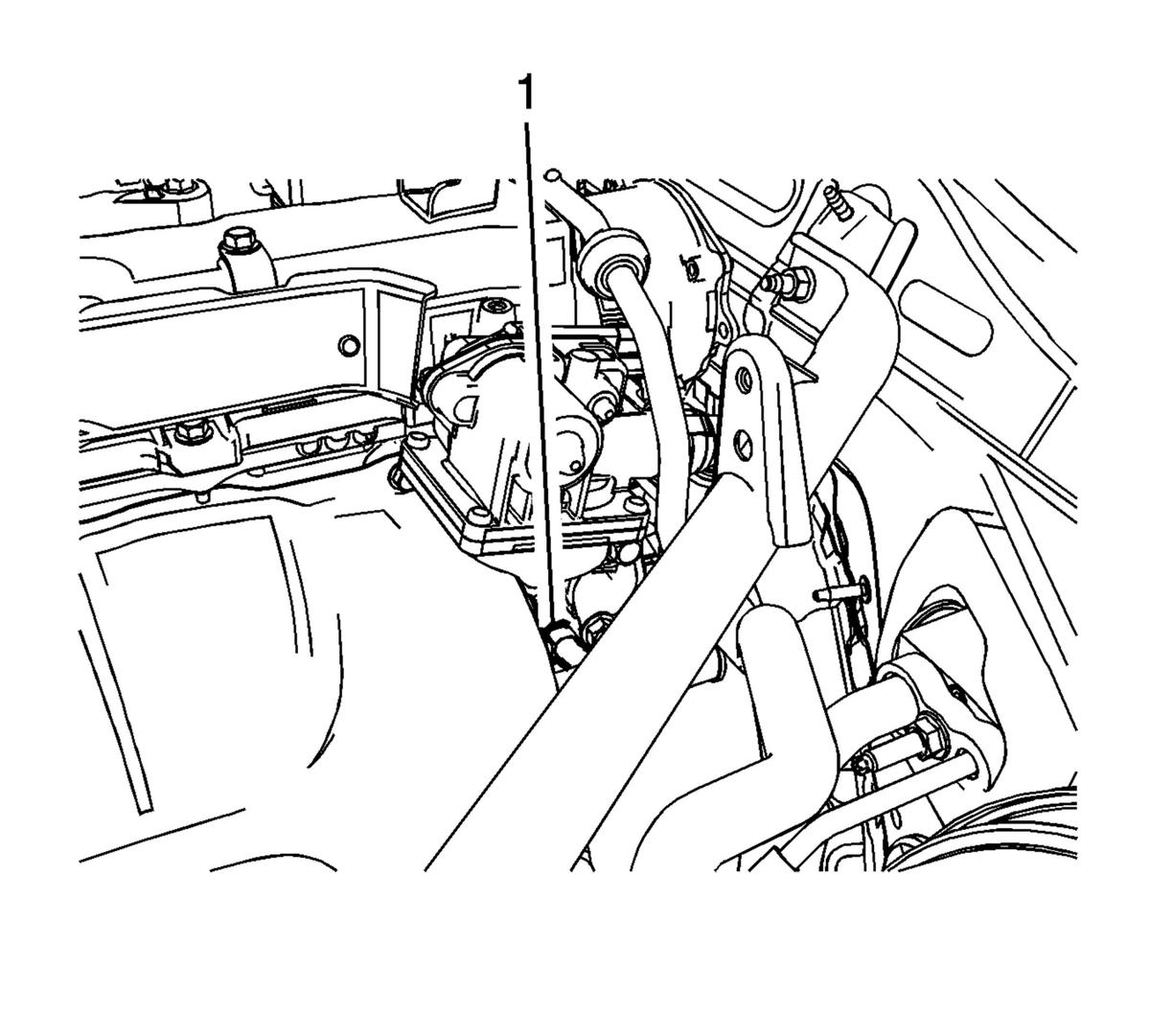

    7. Fig 3: Power Brake Booster Vacuum Hose
    GM2835307Courtesy of GENERAL MOTORS COMPANY
  7. Release the power brake booster vacuum hose from the clip (1).

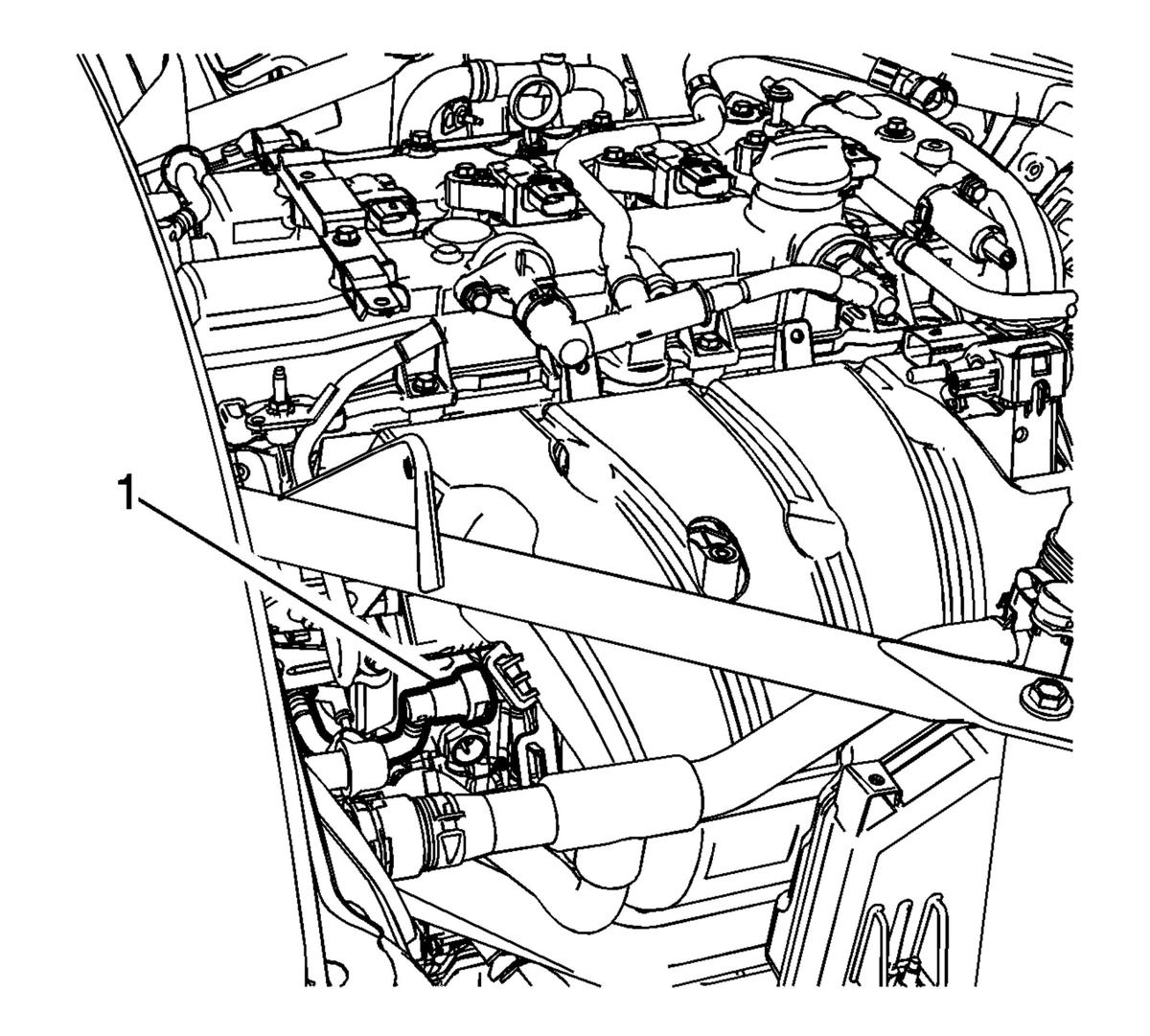

    8. Fig 4: Quick Connect At Intake Manifold
    GM2835322Courtesy of GENERAL MOTORS COMPANY
  8. Release the quick connect (1) and remove the power brake booster vacuum hose from the vacuum port on the intake manifold.

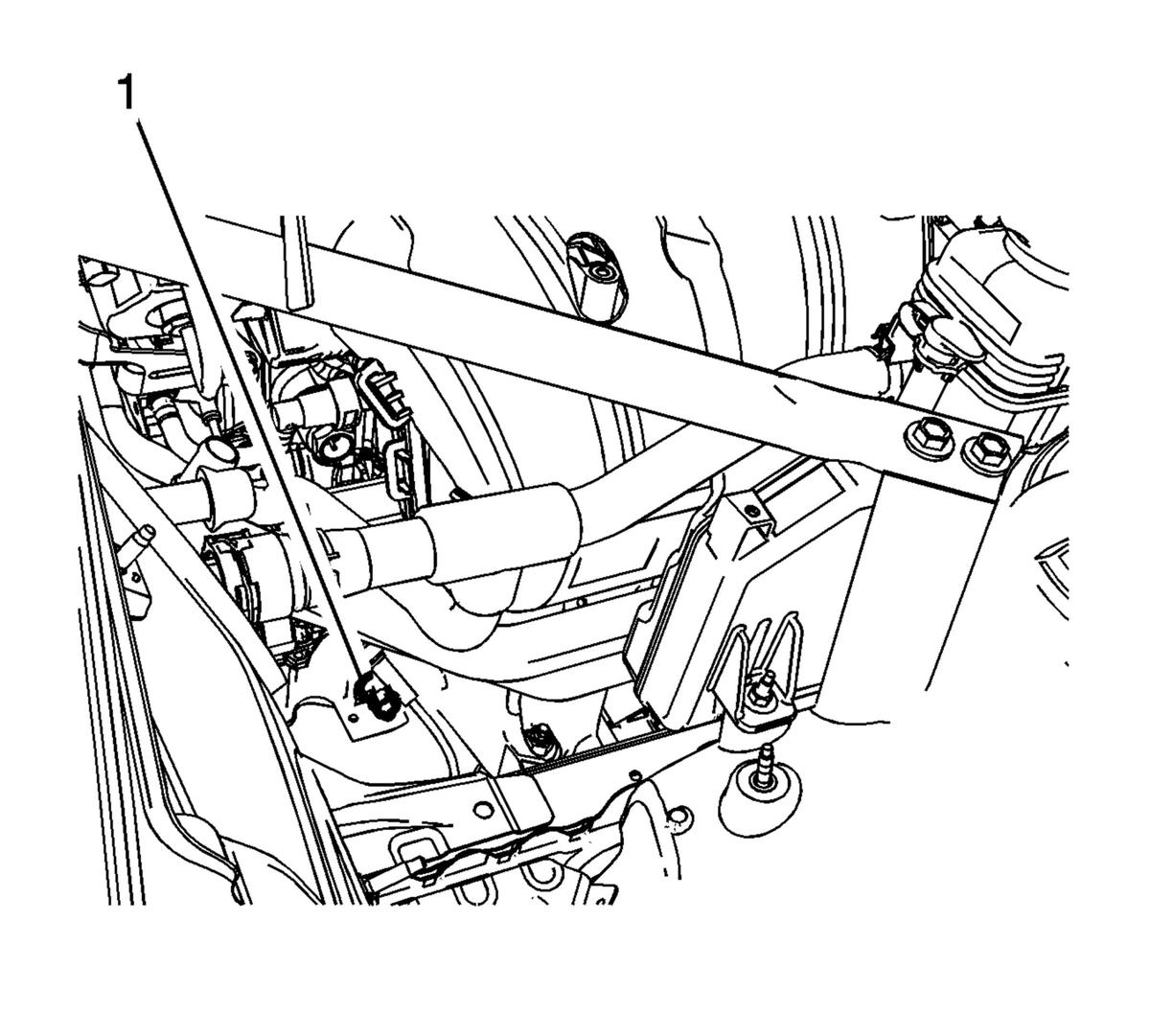

    9. Fig 5: Vacuum Pipe At Power Brake Booster Vacuum Hose
    GM2835357Courtesy of GENERAL MOTORS COMPANY
  9. Disconnect the vacuum pipe (1) from the power brake booster vacuum hose.
  10. Remove the power brake booster vacuum hose and check valve assembly from the vehicle.
