Removal Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Instrument Panel Tie Bar

Courtesy of GENERAL MOTORS COMPANY

Remove the instrument panel tie bar (1). Refer to Instrument Panel Tie Bar Replacement .

Fig 2: Brake Pedal Position Sensor

Courtesy of GENERAL MOTORS COMPANY

Remove the brake pedal position sensor (1). Refer to Brake Pedal Position Sensor Replacement .

Fig 3: Brake Pedal

Courtesy of GENERAL MOTORS COMPANY

Pull the brake pedal (1) rearward to release the power vacuum brake booster pushrod retainer.

Fig 4: Power Vacuum Brake Booster Pushrod Retainer

Courtesy of GENERAL MOTORS COMPANY

NOTE:

Do not reuse the power vacuum brake booster pushrod retainer.

Remove and discard the power vacuum brake booster pushrod retainer (1).

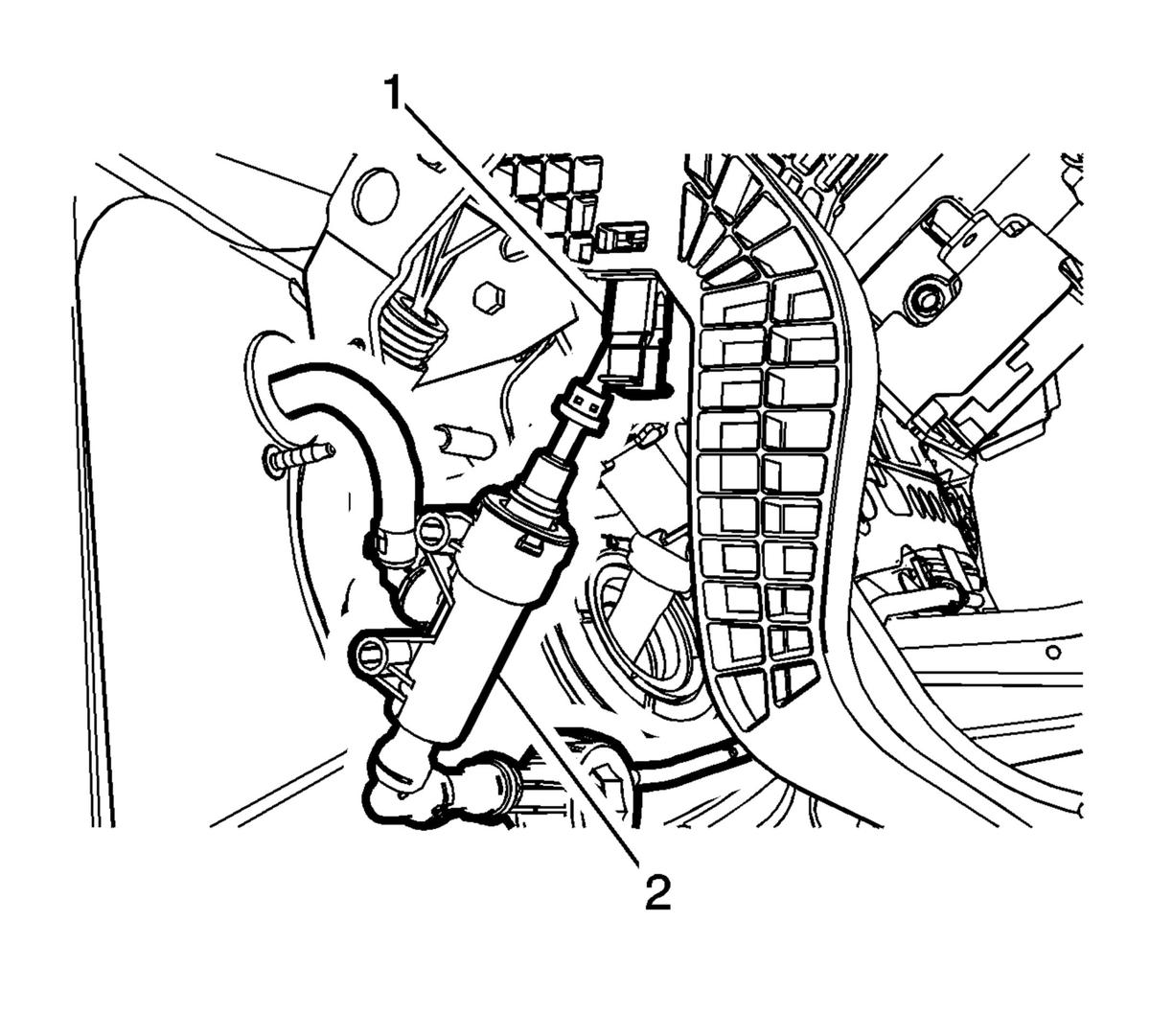

Fig 5: Clutch Master Cylinder & Pushrod Retainer

Courtesy of GENERAL MOTORS COMPANY

NOTE:

Do not disconnect the clutch master cylinder hydraulic hose or pipe from the clutch master cylinder.

Disconnect the clutch master cylinder pushrod retainer (1), remove the nuts and position aside the clutch master cylinder (2). Refer to Clutch Pedal Replacement .

Fig 6: Power Vacuum Brake Booster Nuts

Courtesy of GENERAL MOTORS COMPANY

Remove the power vacuum brake booster nuts (1).

Fig 7: Brake Pedal Assembly Nuts

Courtesy of GENERAL MOTORS COMPANY

Remove the brake pedal assembly nuts (1).
Remove the brake pedal assembly.
