Rear Bumper Lower Fascia Replacement

WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

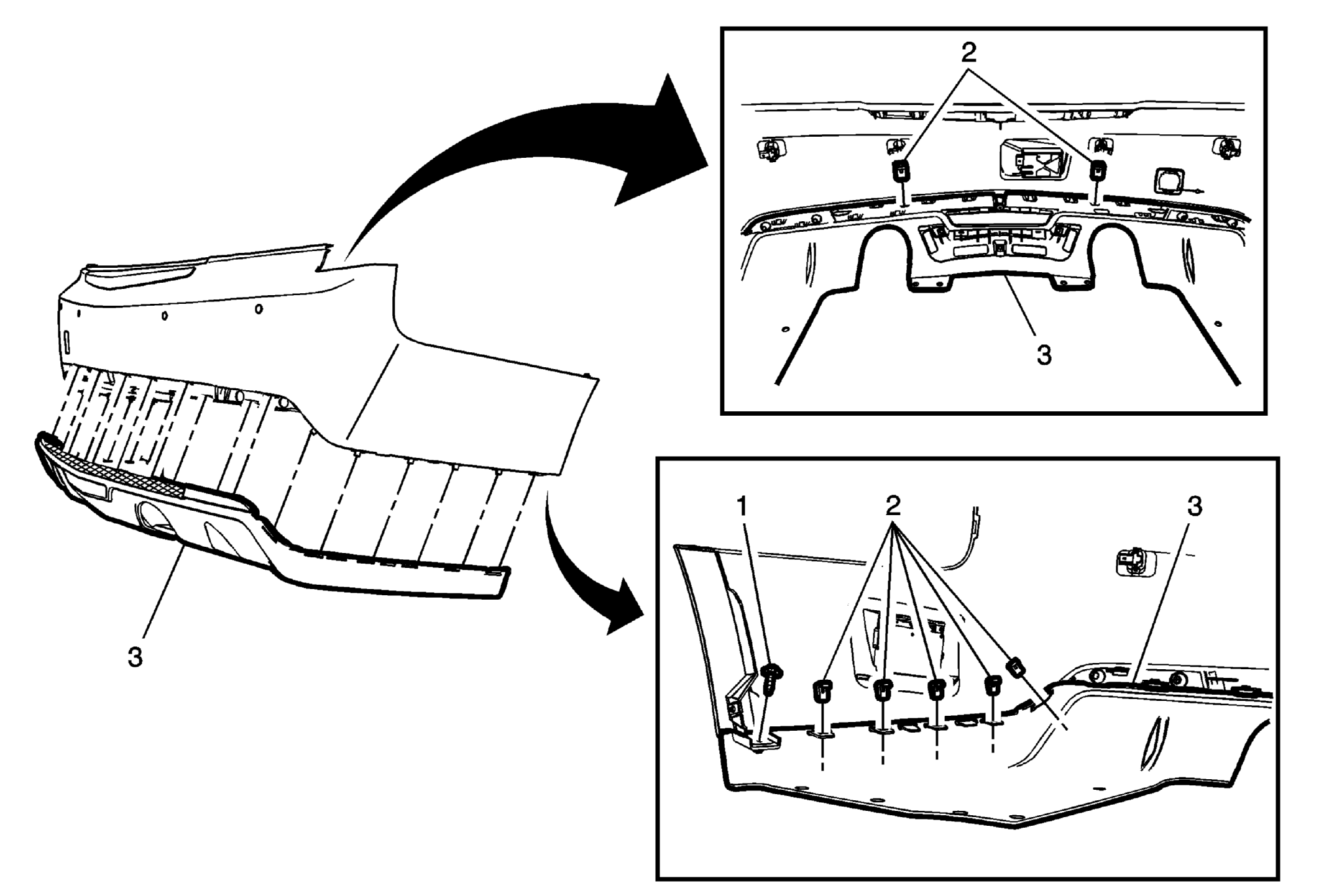

Fig 1: Rear Bumper Lower Fascia

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear bumper energy absorber. Refer to Rear Bumper Energy Absorber Replacement Rear Bumper Energy Absorber Replacement (Coupe) .
1	Rear Bumper Lower Fascia Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Rear Bumper Lower Fascia Push-In Retainer (Qty: 10)
3	Rear Bumper Lower Fascia Procedure Carefully push a small nylon wedge between the upper fascia and the lower fascia. Insert a small flat-bladed tool into the fascia slot and depress the snaps one at a time and pull on the fascia at the same time to gradually remove the lower fascia from the upper fascias. Transfer parts as needed.
