Electric Park Brake (J77+M5T/M5N/M5U)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

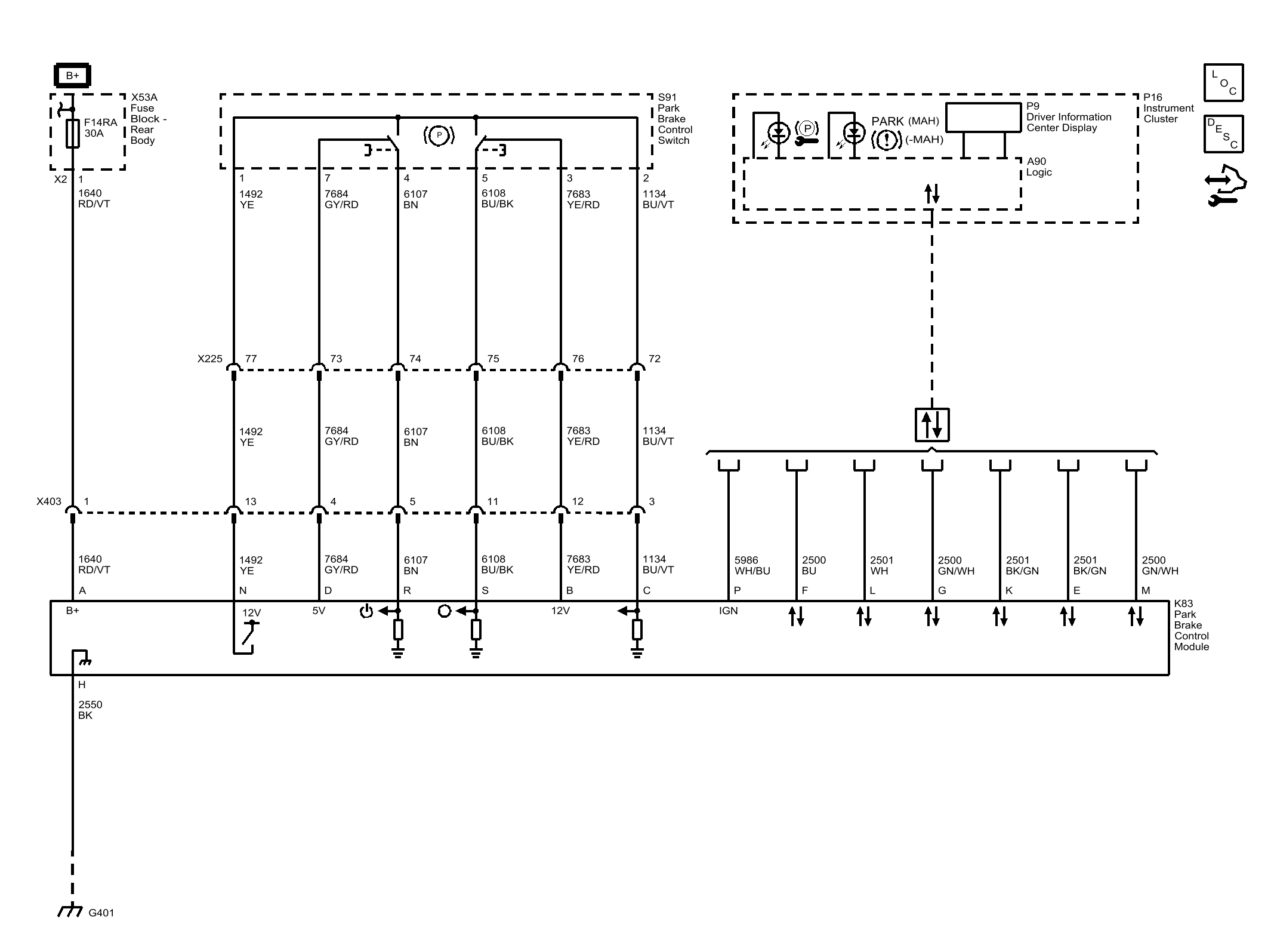

Fig 1: Electric Park Brake (J77+M5T/M5N/M5U)
GM4491269Courtesy of GENERAL MOTORS COMPANY
