Theft Deterrent Sensor Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

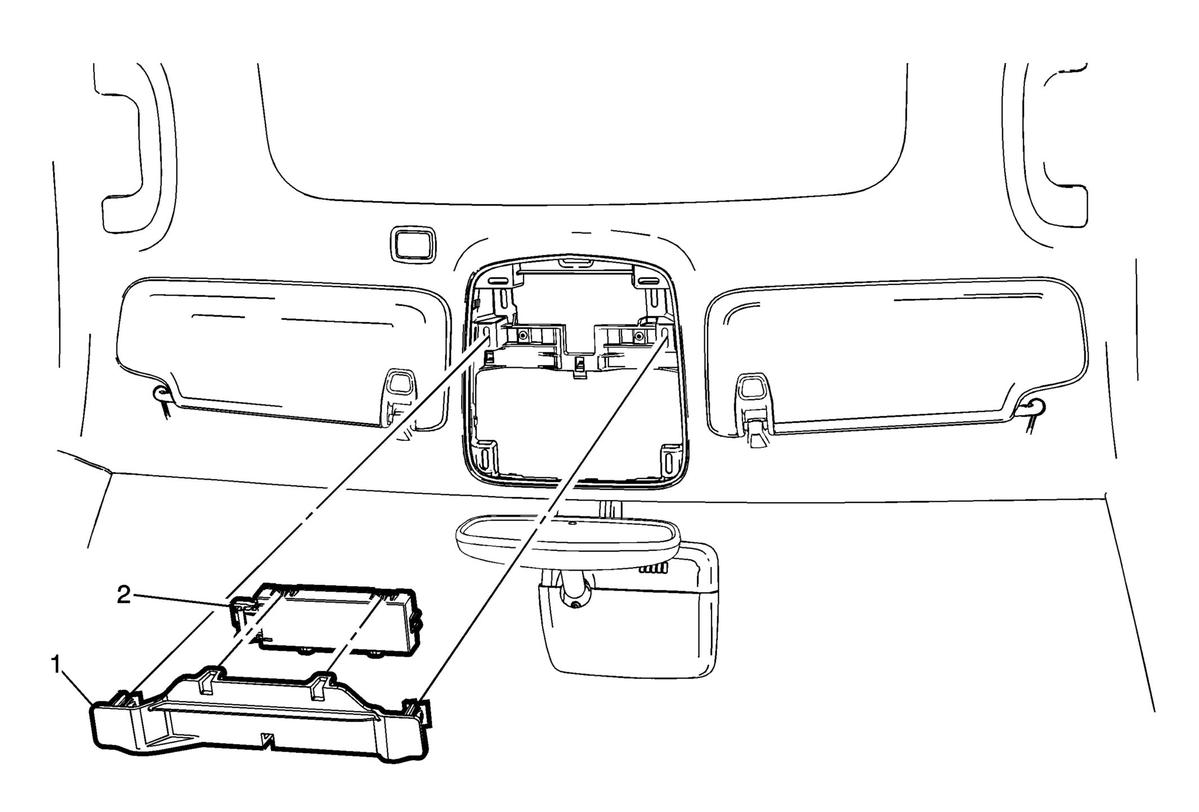

Fig 1: Theft Deterrent Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the roof console. Refer to Roof Console Replacement .
1	Theft Deterrent Sensor Bracket
2	Theft Deterrent Sensor Procedure Disconnect the electrical connector. Depress tabs to remove the sensor from the bracket.

Callout

Component Name

Preliminary Procedure
Remove the roof console. Refer to Roof Console Replacement .

Theft Deterrent Sensor Bracket

Theft Deterrent Sensor

Procedure

Disconnect the electrical connector.
Depress tabs to remove the sensor from the bracket.
