Rear Side Door Inside Handle Cable Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

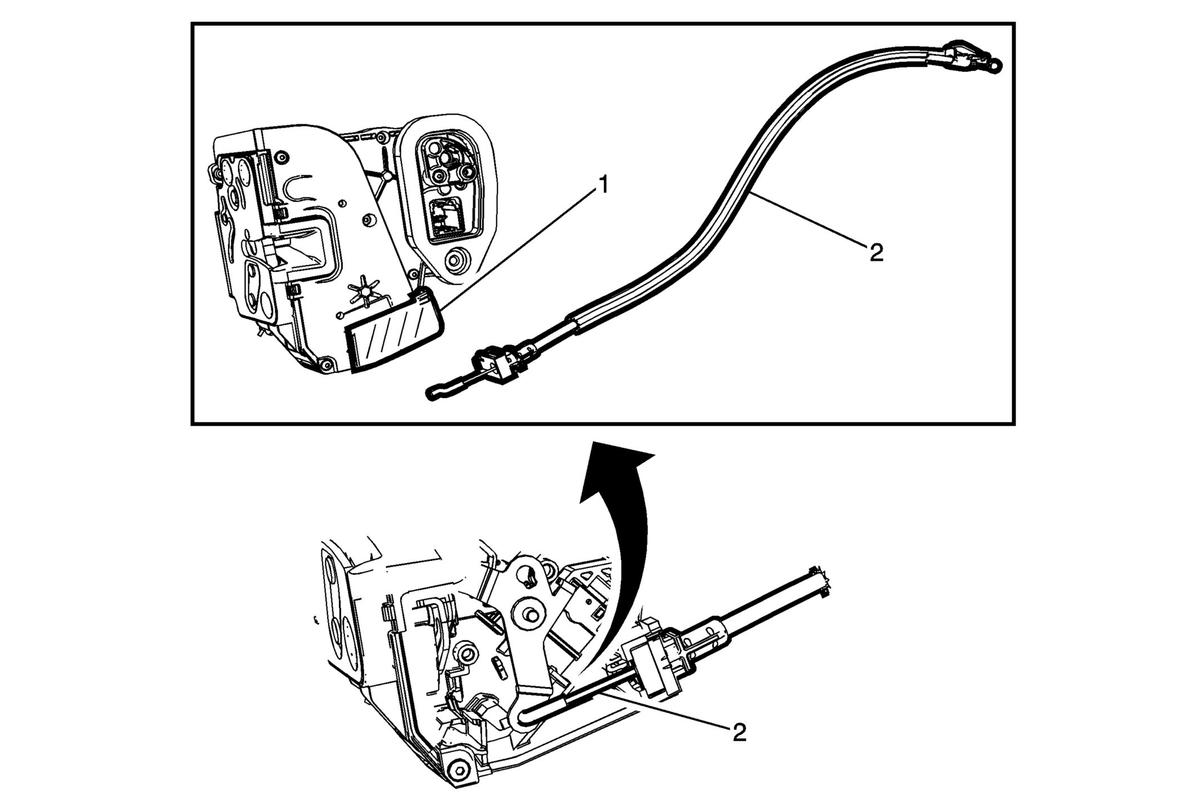

Fig 1: Side Door Inside Handle Cable & Access Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear side door latch and handle bracket assembly from the door. Refer to Rear Side Door Latch Replacement .
1	Rear Side Door Inside Handle Cable Cover Procedure Use a suitable tool, open the access cover to view the cable end. Release the cable end from the latch assembly.
2	Rear Side Door Inside Handle Cable NOTE: Ensure that the door lock system operates properly before installing the trim.

Callout

Component Name

Preliminary Procedure
Remove the rear side door latch and handle bracket assembly from the door. Refer to Rear Side Door Latch Replacement .

Rear Side Door Inside Handle Cable Cover

Procedure

Use a suitable tool, open the access cover to view the cable end.
Release the cable end from the latch assembly.

Rear Side Door Inside Handle Cable

NOTE:

Ensure that the door lock system operates properly before installing the trim.
