Rear Compartment Lid Release Switch Replacement (Front Door)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

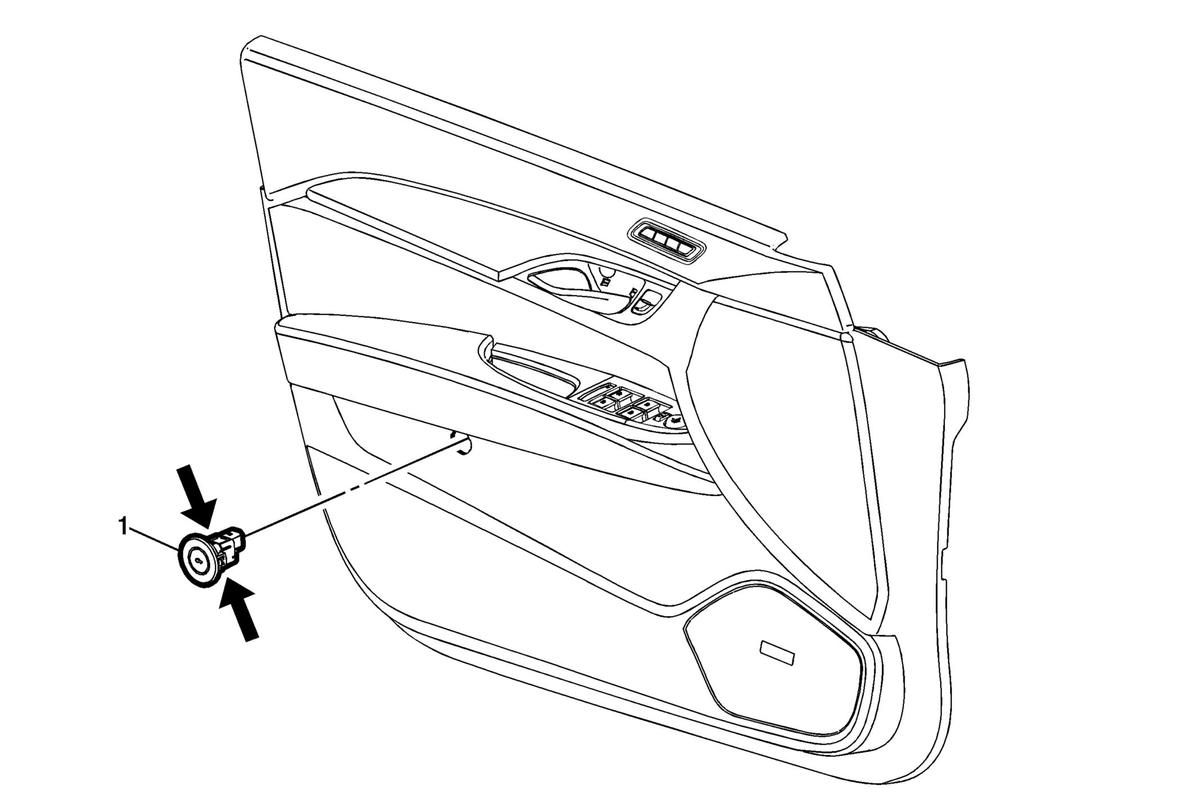

Fig 1: Rear Compartment Lid Release Switch (Front Door)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front side door trim. Refer to Front Side Door Trim Replacement (Sedan)Front Side Door Trim Replacement (Coupe) .
1	Rear Compartment Lid Release Switch Assembly Procedure Disconnect the electrical connector. Push the 2 tabs in to release the switch from the front side door trim.

Callout

Component Name

Preliminary Procedure
Remove the front side door trim. Refer to Front Side Door Trim Replacement (Sedan)Front Side Door Trim Replacement (Coupe) .

Rear Compartment Lid Release Switch Assembly

Procedure

Disconnect the electrical connector.
Push the 2 tabs in to release the switch from the front side door trim.
