Rear Compartment Lid Latch Striker Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

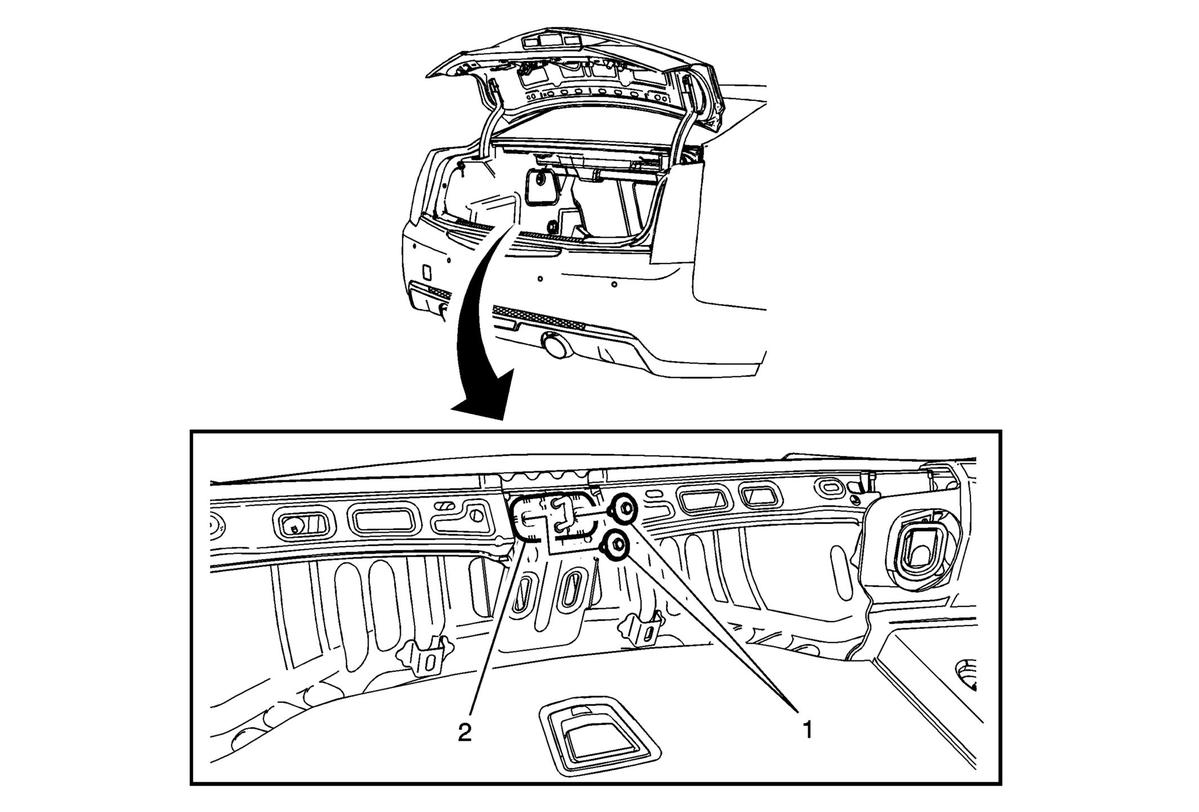

Fig 1: Rear Compartment Lid Latch Striker

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear end trim finish panel. Refer to Rear End Trim Finish Panel Replacement .
1	Rear Compartment Lid Latch Striker Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure Use a grease pencil to outline the striker before removing the bolts. Tighten 9 N.m (80 lb in)
2	Rear Compartment Lid Latch Striker Procedure Adjust the rear compartment lid, if needed. Refer to Rear Compartment Lid Adjustment Rear Compartment Lid Adjustment (ATS-V) .
