Front Side Door Outside Handle Insert Replacement
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

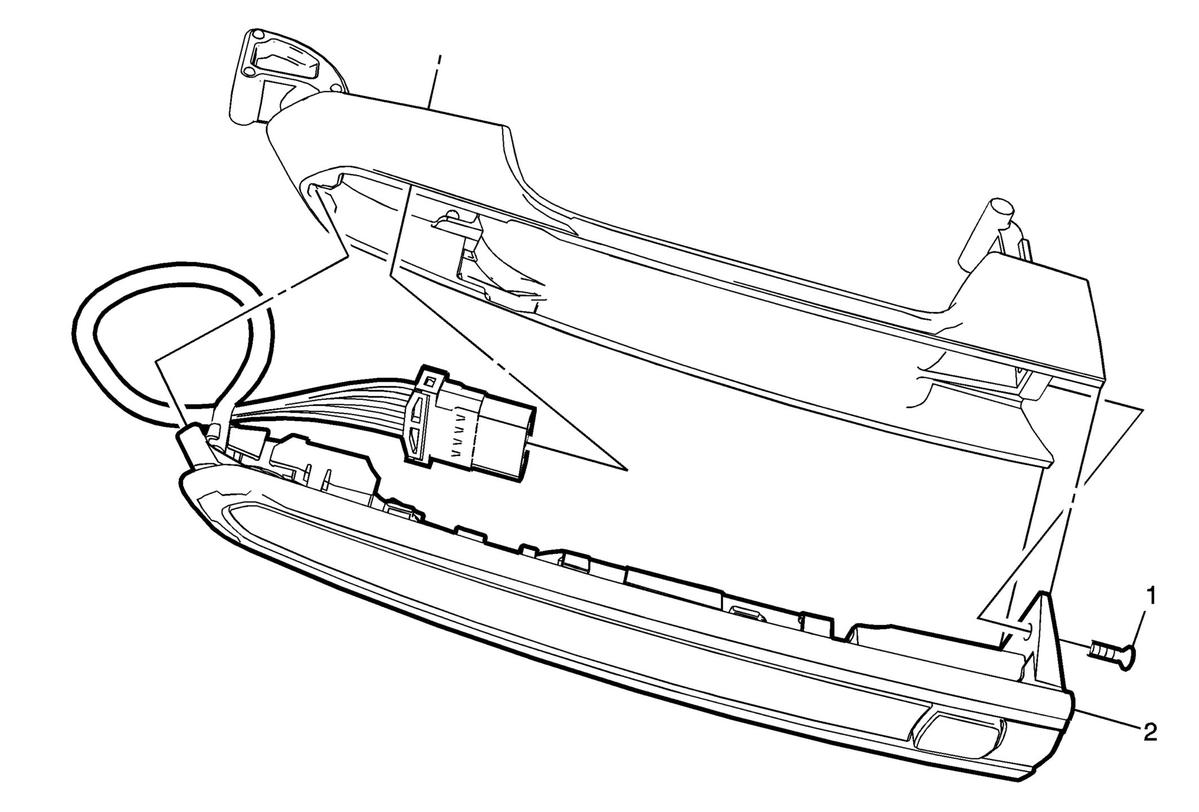

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front side door outside handle. Refer to Front Side Door Outside Handle Replacement (Sedan) Front Side Door Outside Handle Replacement (Coupe) . |
|
| 1 | Front Side Door Outside Handle Insert Screw
CAUTION:
Refer to Fastener Caution .
NOTE:
Use care when hand tightening the outside handle insert screw Not to over tighten. Tighten 1.5 N.m (13 lb in) |
| 2 | Front Side Door Outside Handle Insert
NOTE:
Ensure that the door lock system and the luminous reflecting light is operates properly before installing the trim. |
