Removal Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front side door outside handle. Refer to Front Side Door Outside Handle Replacement (Coupe) .
    2. Fig 1: Front Side Door Outside Bracket & Screws
    GM2755842Courtesy of GENERAL MOTORS COMPANY
  2. Remove the front side door outside handle bracket screw (1) from the door (2).

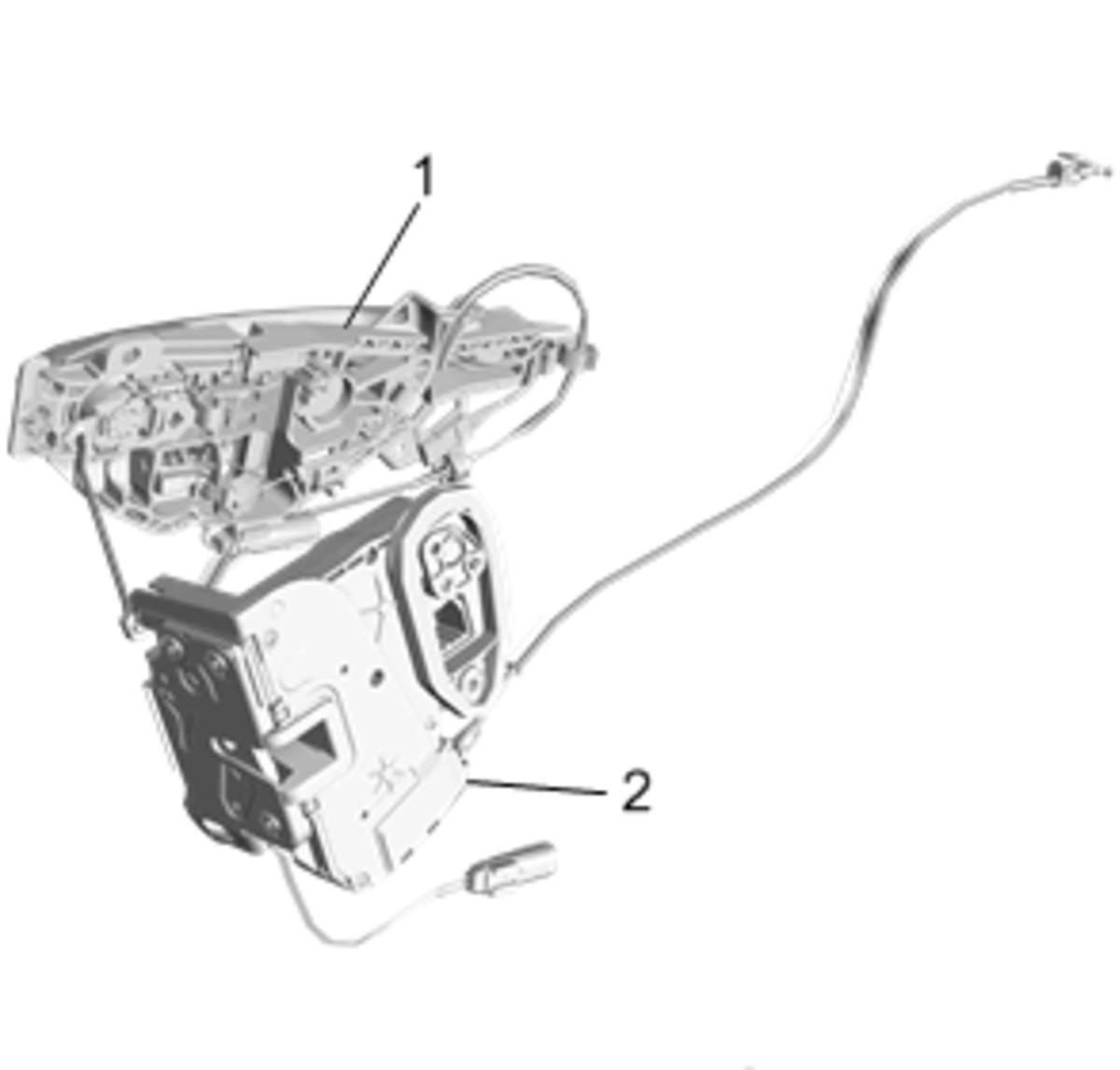

    3. Fig 2: Front Side Door Latch Assembly
    GM3722147Courtesy of GENERAL MOTORS COMPANY
  3. Remove the door outside handle bracket (1) and the front side door latch assembly (2) from the vehicle as one. Refer to Front Side Door Latch Replacement (Coupe) .
  4. Keeping the door lock rod attached to the lock cylinder and the latch, remove the front side door lock cylinder from the handle bracket. Refer to Front Side Door Lock Cylinder Replacement (Coupe) .

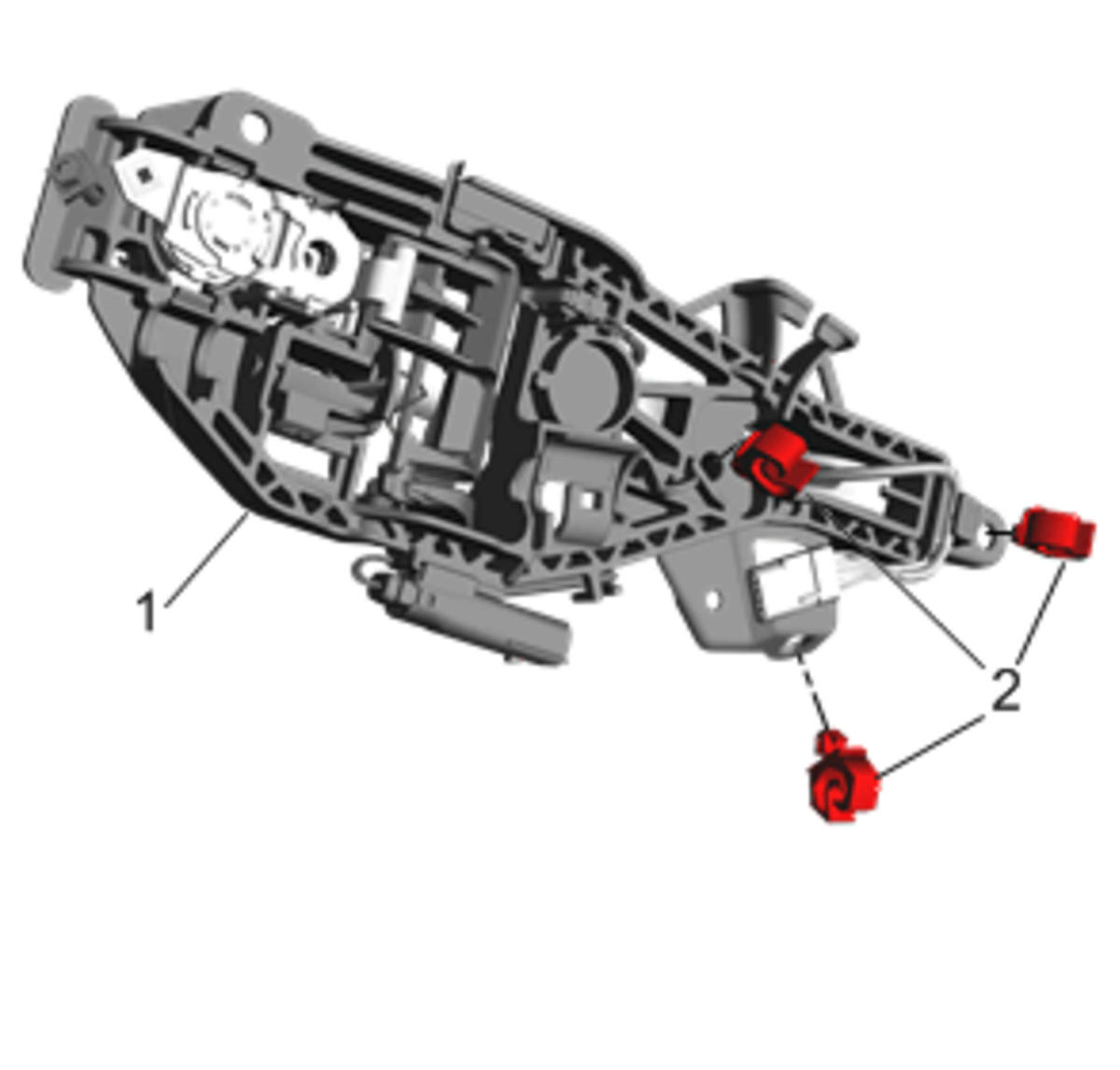

    5. Fig 3: Front Side Door Outside Handle Bracket Cable Retainers
    GM3722155Courtesy of GENERAL MOTORS COMPANY
  5. Keeping the cable inserted into the retainers, remove the front side door outside handle bracket cable retainers (2) from the bracket (1).
  6. Remove the front side door outside handle cable from the bracket. Refer to Front Side Door Outside Handle Cable Replacement (Coupe) .
