Installation Procedure
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
- Install the front side door outside handle cable to the bracket, then install the cable retainers to the bracket. Refer to Front Side Door Outside Handle Cable Replacement (Coupe) .
- Install the front side door lock cylinder to the handle bracket. Refer to Front Side Door Lock Cylinder Replacement (Coupe) .

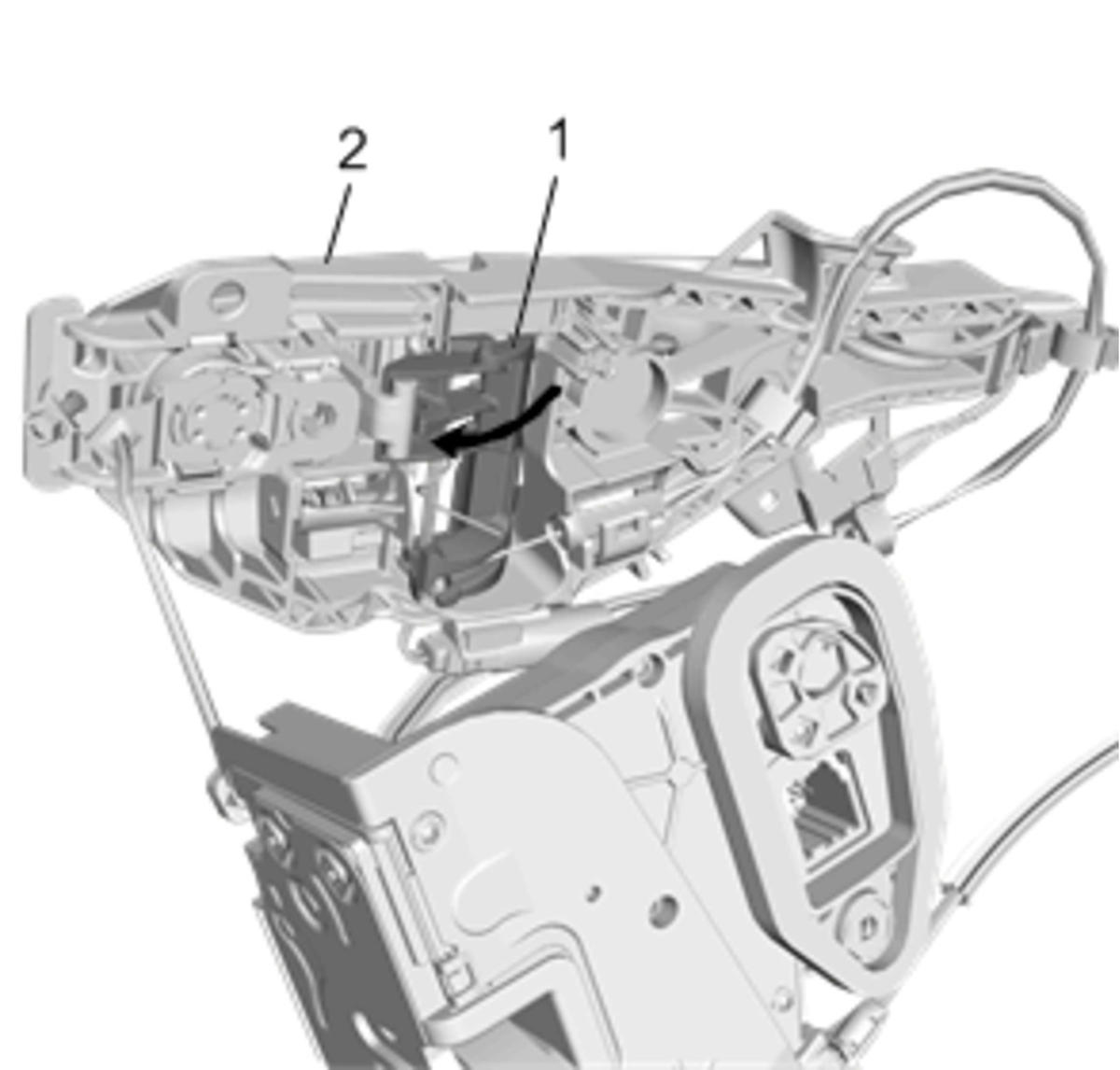

- Reset the front side door outside handle bracket (2) counter balance (1) as follows:
- The outside door handle can Not be install until the counter balance (1) is reset.
- Grasp the front side door outside handle bracket (2) with one hand.
- From the back side of the counter balance (1), push forward on the counter balance until it locks into the detent of the handle bracket.
- Install the outside handle bracket (1) and the front side door latch (2) assembly to the vehicle. Refer to Front Side Door Latch Replacement (Coupe) .
- Install the front side door outside handle bracket screw (1) to the door (2) and tighten screw to 5 N.m (44 lb in).
- Ensure that the door lock system operates properly before installing the trim.
NOTE:
It may be necessary to transfer the wire harness retainers (2) from the old handle bracket.
NOTE:
Ensure that the counter balance is reset and locked in the detent of the handle bracket. The counter balance can't Not be reset after the latch and handle bracket has been reinstalled in the door.
NOTE:
Bracket should be slid full rearward prior to tightening bracket screw.
