Front Side Door Lock Cylinder Rod Replacement (Coupe)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

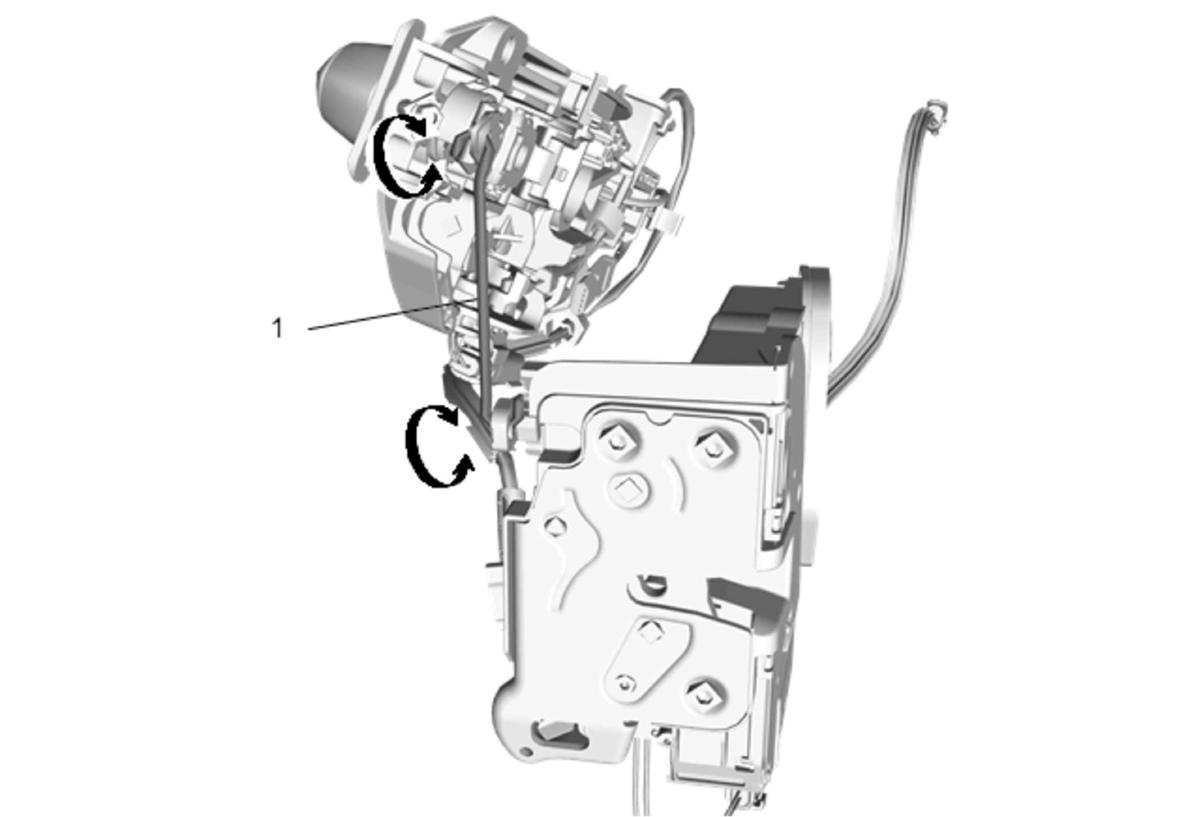

Fig 1: Front Side Door Lock Cylinder Rod (Coupe)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front side door latch and handle bracket assembly from the door. Refer to Front Side Door Latch Replacement (Coupe) .
1	Front Side Door Lock Cylinder Rod Procedure Remove the front side door lock cylinder rod from the lock cylinder by turning the housing bracket counterclockwise. Remove the front side door lock cylinder rod from the latch by turning the latch counterclockwise. Release the lock cylinder rod from the latch only, do not remove the handle cables from the latch. NOTE: DO NOT remove the handle cables from the front side door latch. Ensure that the door lock system operates properly before installing the trim.

Callout

Component Name

Preliminary Procedure
Remove the front side door latch and handle bracket assembly from the door. Refer to Front Side Door Latch Replacement (Coupe) .

Front Side Door Lock Cylinder Rod

Procedure

Remove the front side door lock cylinder rod from the lock cylinder by turning the housing bracket counterclockwise.
Remove the front side door lock cylinder rod from the latch by turning the latch counterclockwise.
Release the lock cylinder rod from the latch only, do not remove the handle cables from the latch.

NOTE:

DO NOT remove the handle cables from the front side door latch.
Ensure that the door lock system operates properly before installing the trim.
