Removal Procedure
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the front side door latch and door outside handle bracket assembly as one from the door. Refer to Front Side Door Latch Replacement (Sedan) Front Side Door Latch Replacement (Coupe) .

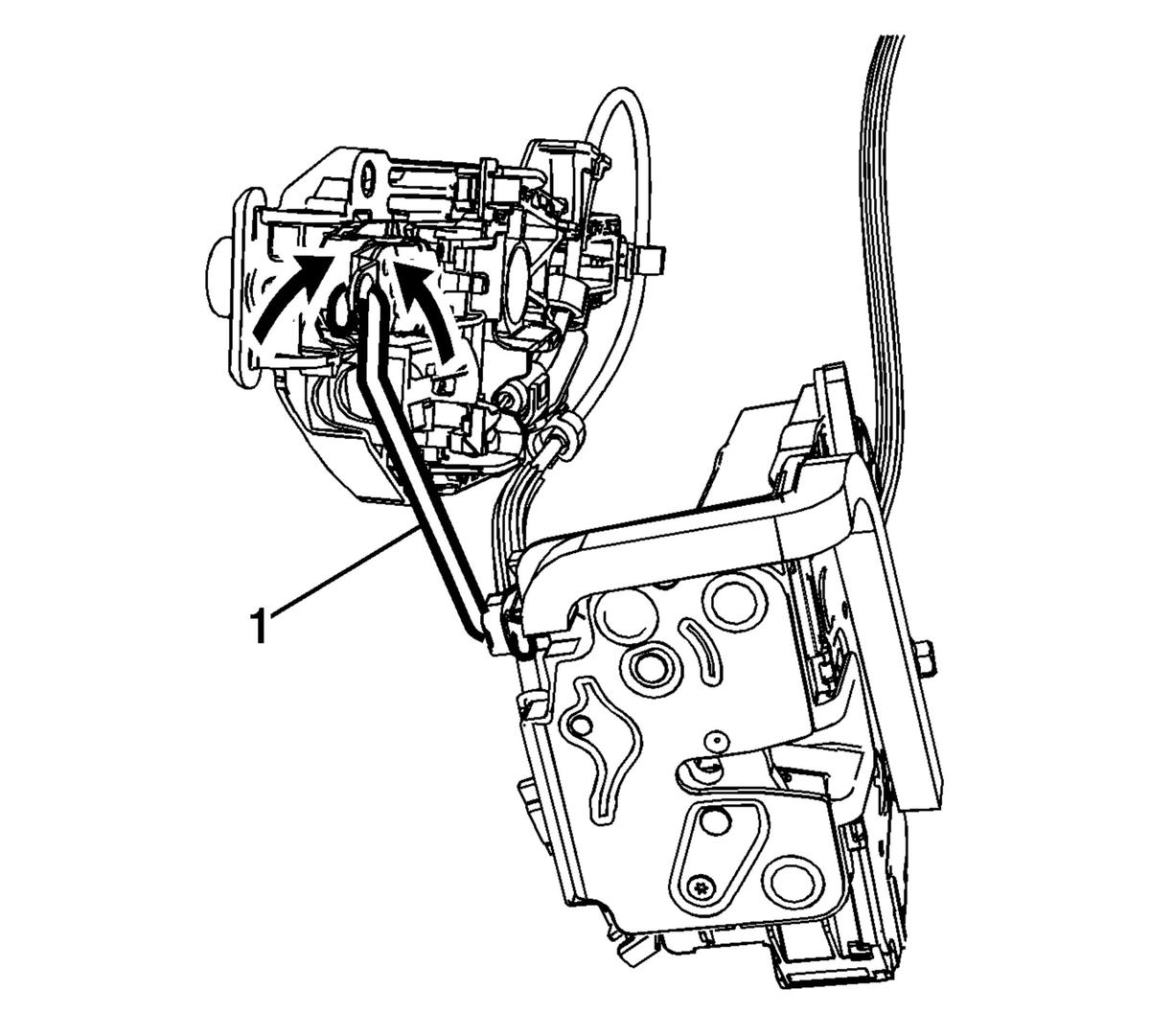

- Disconnect the front side door lock cylinder rod (1) from the lock cylinder.

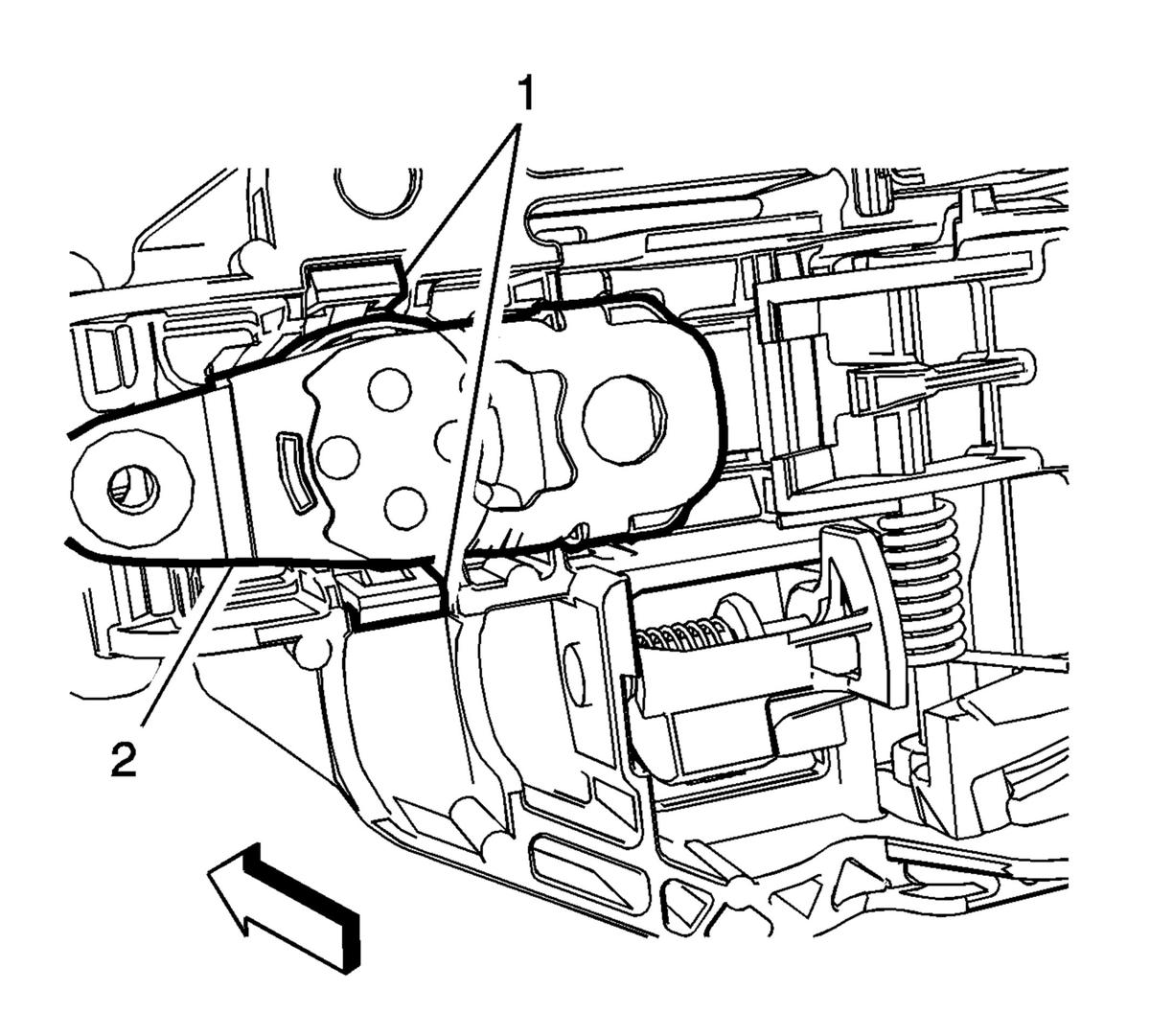

- From the back side of the outside handle bracket, use a suitable tool, push up and down on the lock cylinder retainers (1) releasing the retainer from the cylinder.

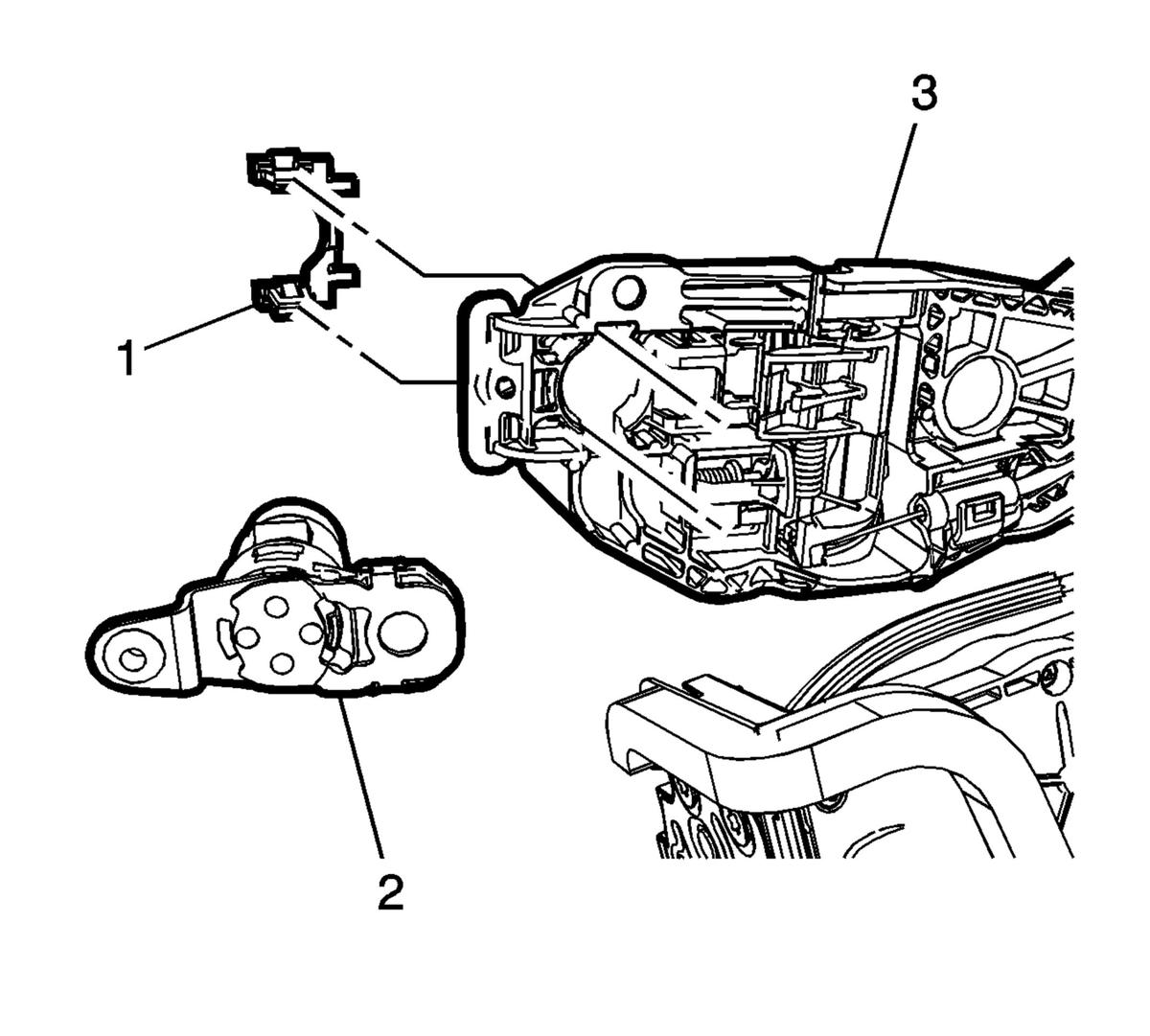

- With the lock cylinder retainer (1) removed pull the lock cylinder (2) rearward releasing it from the handle bracket (3).
NOTE:
When performing this procedure the latch and handle bracket assembly Must be removed from the vehicle to replace the door lock cylinder assembly.
NOTE:
Its not necessary to disconnect the inside or outside handle cables to replace the door lock cylinder.
