Door Lock Switch Replacement - Driver Side (Coupe)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

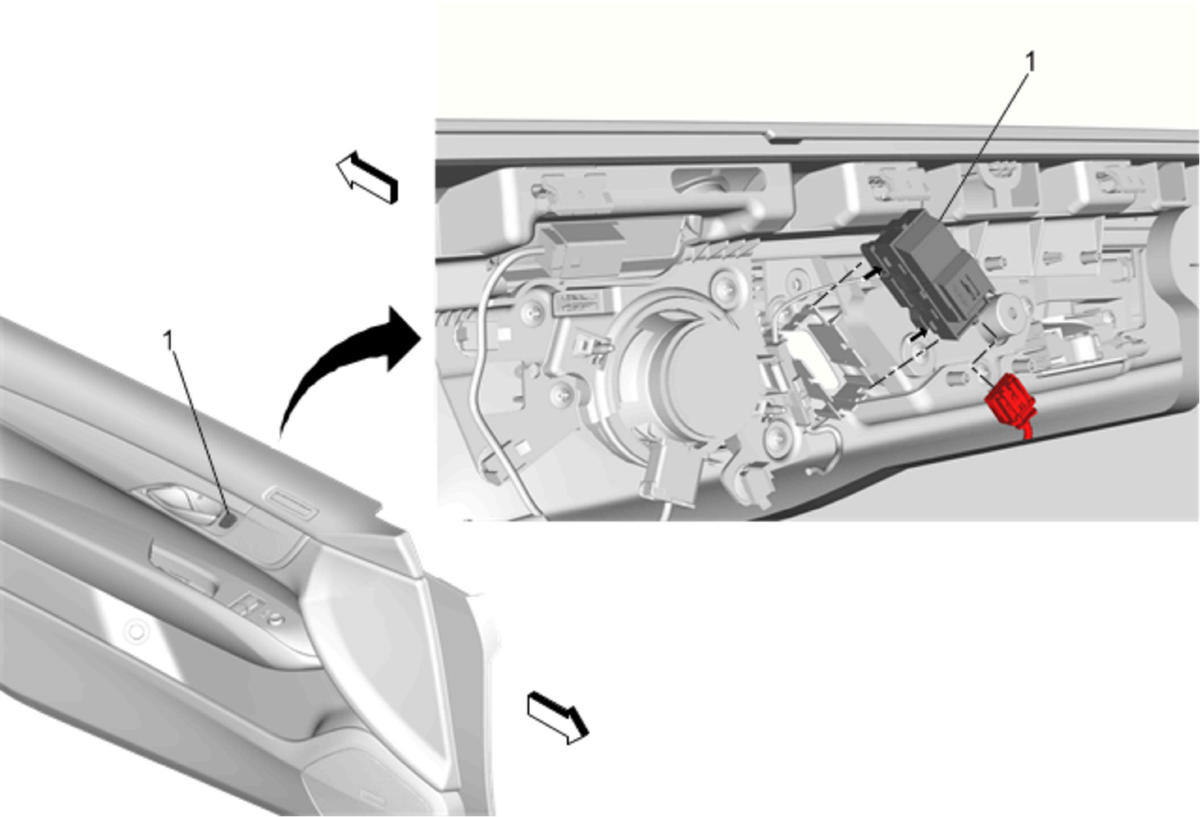

Fig 1: Door Lock Switch - Driver Side (Coupe)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front side door trim. Refer to Front Side Door Trim Replacement (Coupe) .
1	Door Lock Switch Driver Side Assembly Procedure From the backside of the door trim panel, use a plastic pry tool to gently pry on the side tabs to release the switch from the door trim panel. Disconnect the electrical connector. Refer to Control Module References for programming and set up procedures, if required.

Callout

Component Name

Preliminary Procedure
Remove the front side door trim. Refer to Front Side Door Trim Replacement (Coupe) .

Door Lock Switch Driver Side Assembly

Procedure

From the backside of the door trim panel, use a plastic pry tool to gently pry on the side tabs to release the switch from the door trim panel.
Disconnect the electrical connector.
Refer to Control Module References for programming and set up procedures, if required.
