Retained Accessory Power Description and Operation: Notes
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

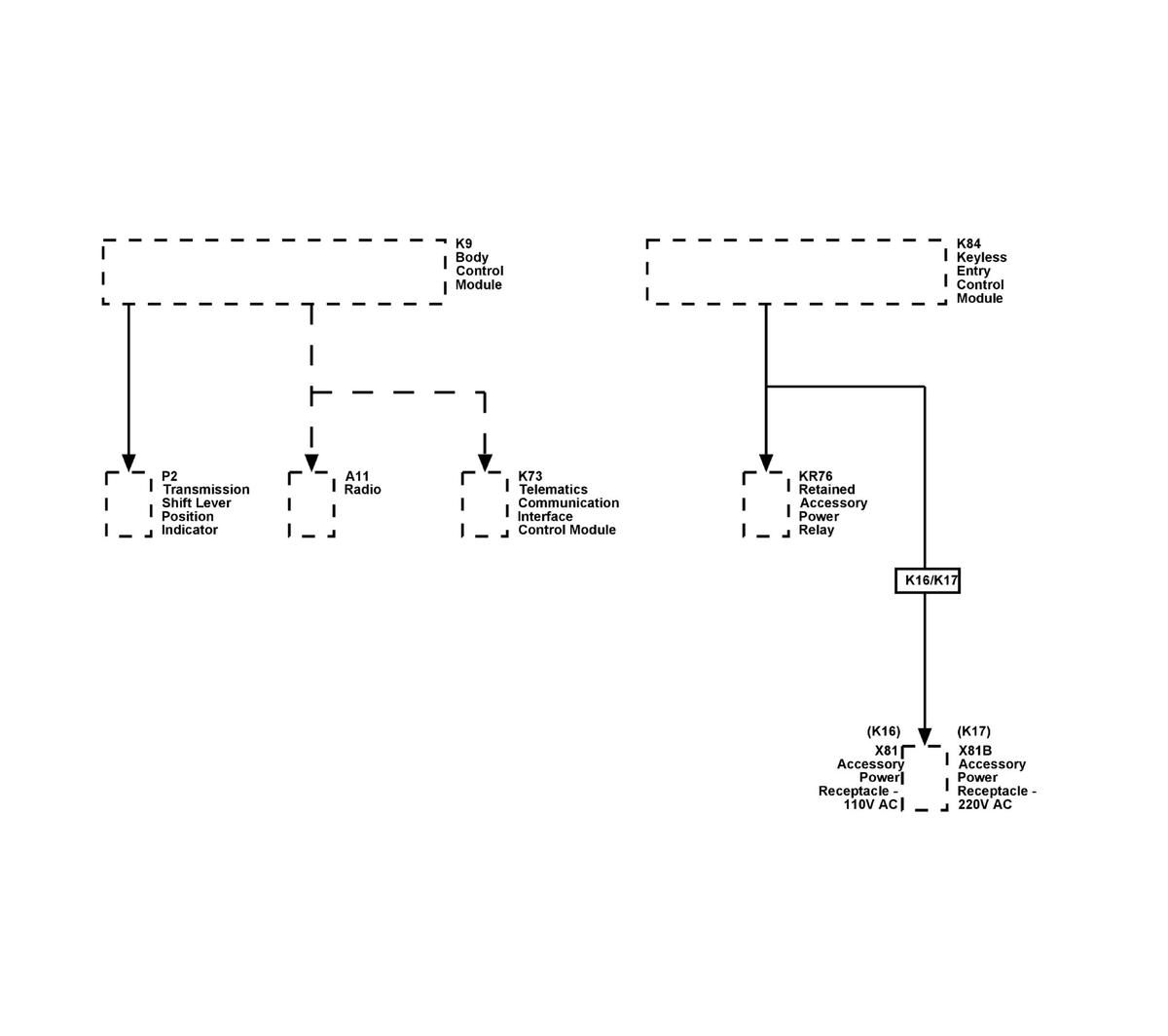

| Callout | Component Name |
|---|---|
| K9 | K9 Body Control Module |
| K84 | K84 Keyless Entry Control Module |
| P2 | P2 Transmission Shift Lever Position Indicator |
| A11 | A11 Radio |
| K73 | K73 Telematics Communication Interface Control Module |
| KR76 | KR76 Retained Accessory Power Relay |
| X81B | X81B Accessory Power Receptacle - 220V AC |
| X81 | X81 Accessory Power Receptacle - 110V AC |
