Radio, Mobile Telephone, and Vehicle Location Antenna Cable Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

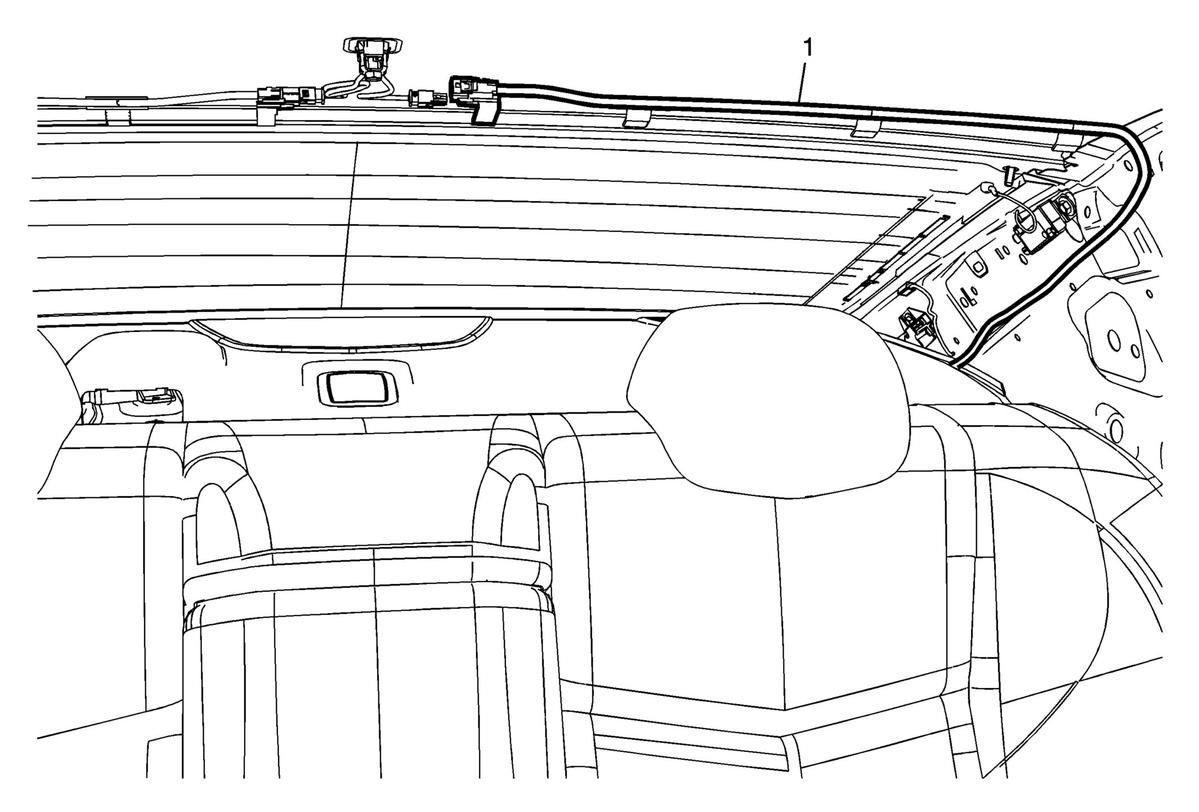

Fig 1: Radio, Mobile Telephone, and Vehicle Location Antenna Cable

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear window trim panel. Refer to Rear Window Panel Trim Replacement (Sedan)Rear Window Panel Trim Replacement (Coupe) . Lower the rear of the headliner as needed. Refer to Headlining Trim Panel Replacement (Sedan With Sunroof)Headlining Trim Panel Replacement (Sedan Without Sunroof)Headlining Trim Panel Replacement (Coupe) .
1	Radio, Mobile Telephone, and Vehicle Location Antenna Cable Procedure Disconnect the electrical connectors at each end of the antenna. If the antenna cable is taped into the wiring harness then cut the ends off the old antenna and route the new antenna as close to the old one as possible using tie straps to secure the new cable.

Callout

Component Name

Preliminary Procedures

Remove the rear window trim panel. Refer to Rear Window Panel Trim Replacement (Sedan)Rear Window Panel Trim Replacement (Coupe) .
Lower the rear of the headliner as needed. Refer to Headlining Trim Panel Replacement (Sedan With Sunroof)Headlining Trim Panel Replacement (Sedan Without Sunroof)Headlining Trim Panel Replacement (Coupe) .

Radio, Mobile Telephone, and Vehicle Location Antenna Cable

Procedure

Disconnect the electrical connectors at each end of the antenna.
If the antenna cable is taped into the wiring harness then cut the ends off the old antenna and route the new antenna as close to the old one as possible using tie straps to secure the new cable.
