Radio Rear Speaker Replacement (Sedan UQS)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

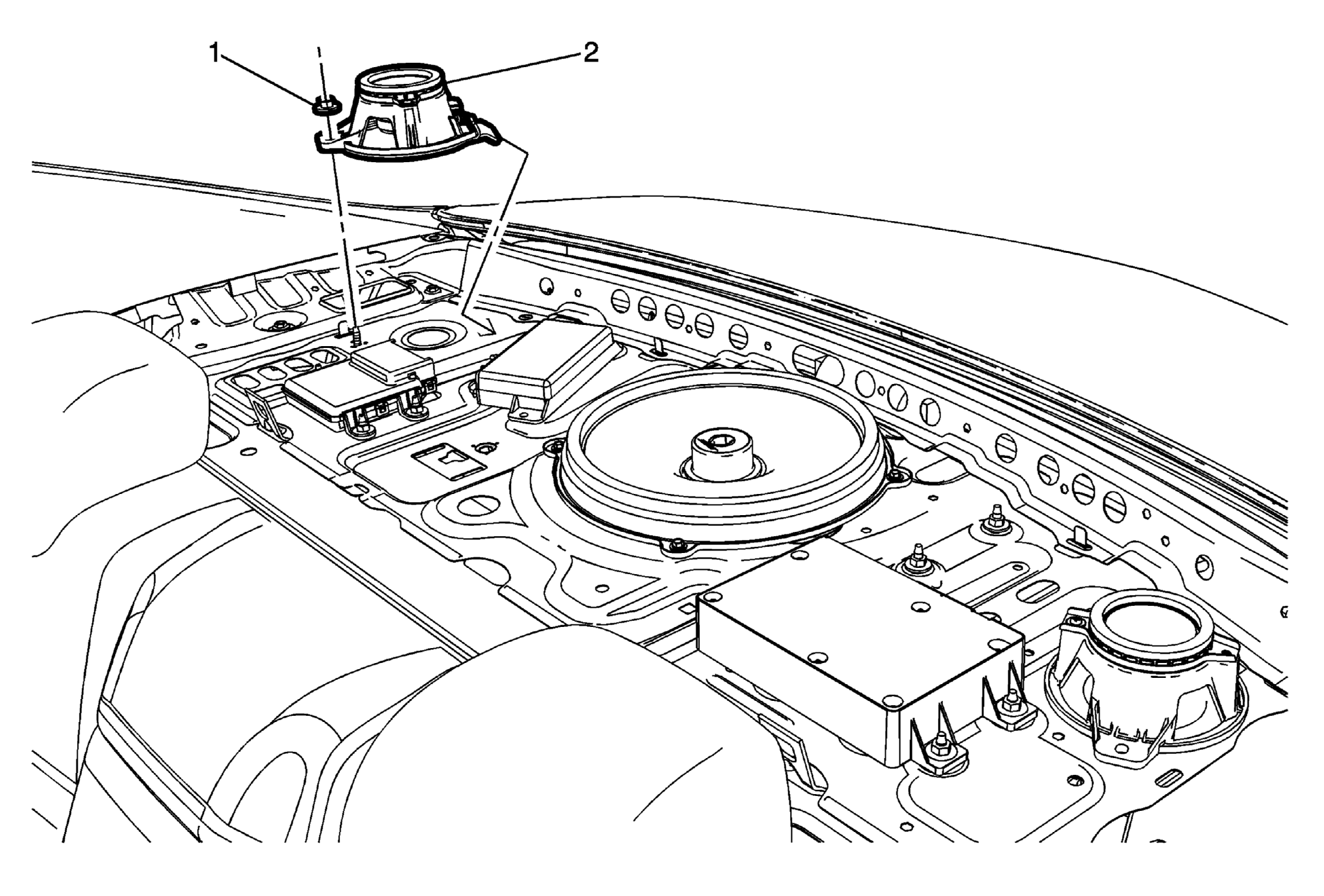

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear window panel trim. Refer to Rear Window Panel Trim Replacement (Sedan) . |
|
| 1 | Radio Rear Speaker Fastener
CAUTION:
Refer to Fastener Caution . |
| 2 | Radio Rear Speaker Procedure Disconnect the electrical connector. |
