Radio Quarter Speaker Grille Replacement (Coupe)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

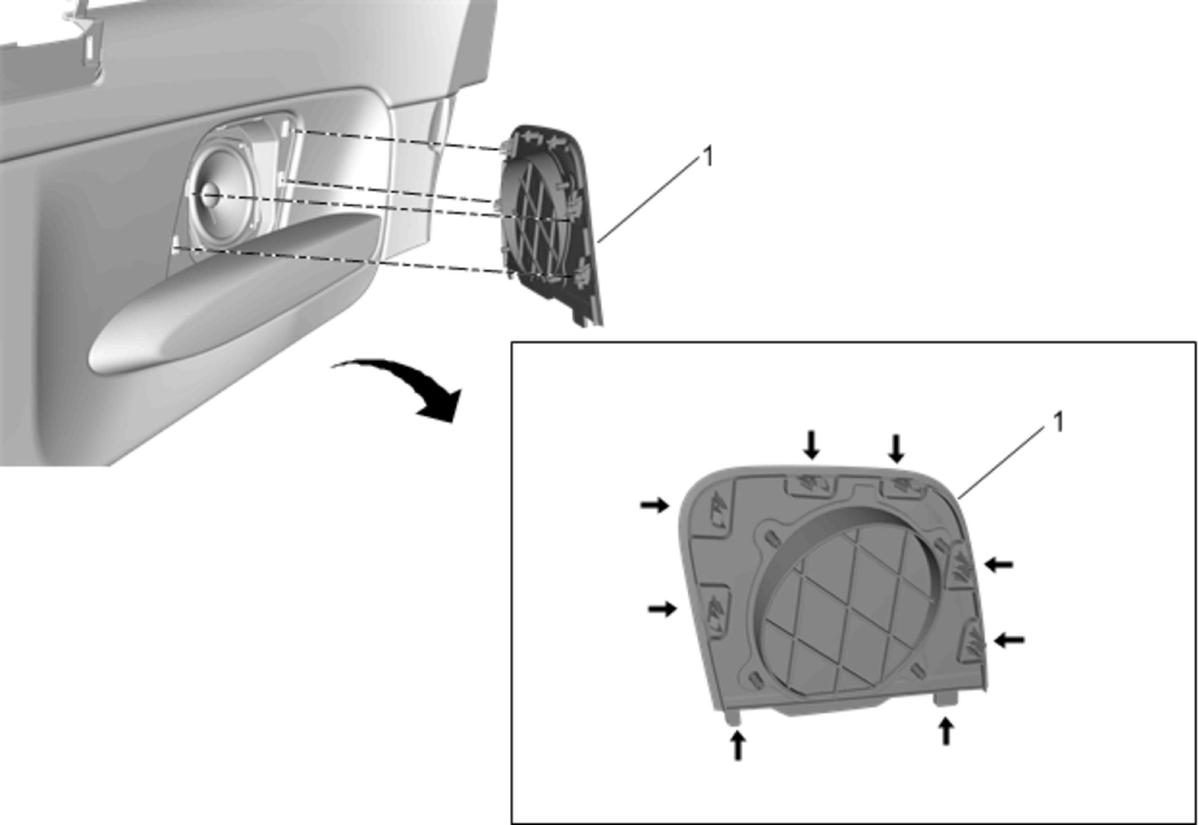

| Callout |
Component Name |
| 1 |
Radio Quarter Speaker Grille
Procedure
Using the appropriate tool, release the two tabs on the top and the two tabs on each side of the grille. Gently pull the grille upward to release the two bottom tabs from behind the armrest. |
