Radio Antenna Ground Coil Replacement
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

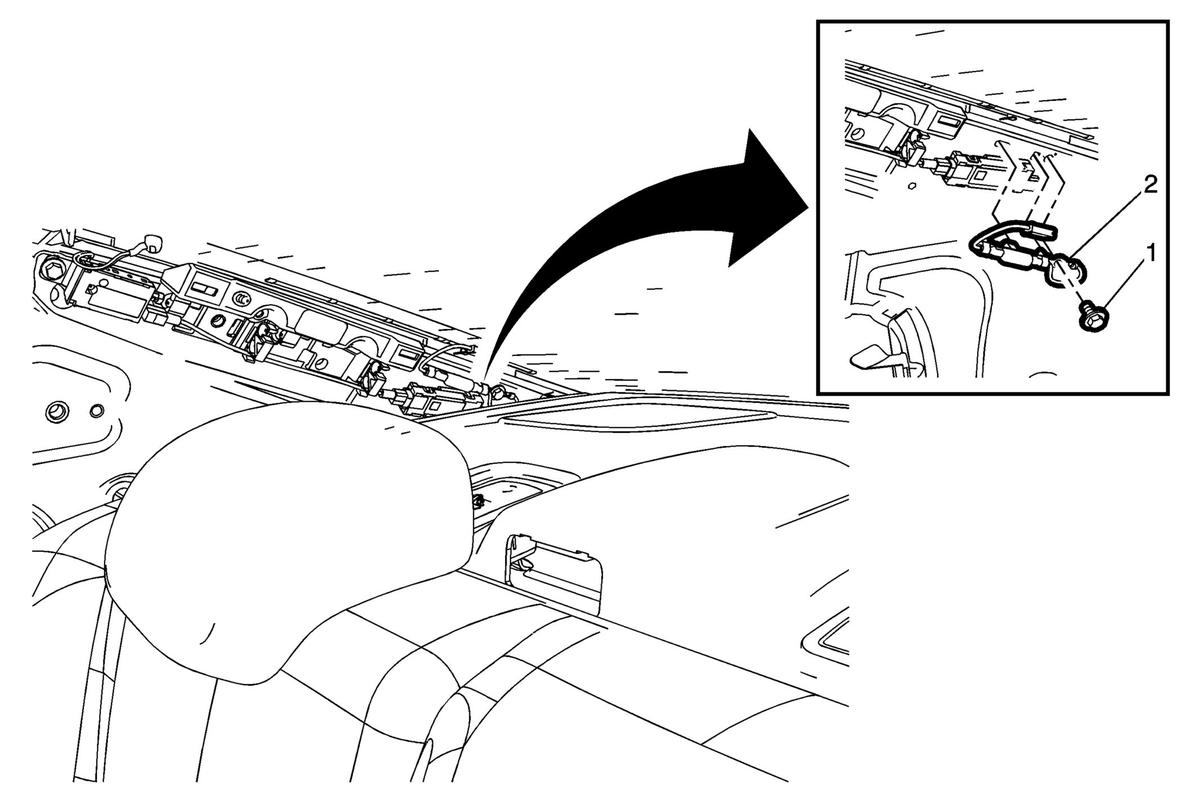

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear window trim panel. Refer to Rear Window Panel Trim Replacement (Sedan)Rear Window Panel Trim Replacement (Coupe) . |
|
| 1 | Radio Antenna Ground Coil Fastener
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 2 | Radio Antenna Ground Coil Procedure Disconnect the electrical connector. |
