Radio Antenna Amplifier Replacement (Left Side)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

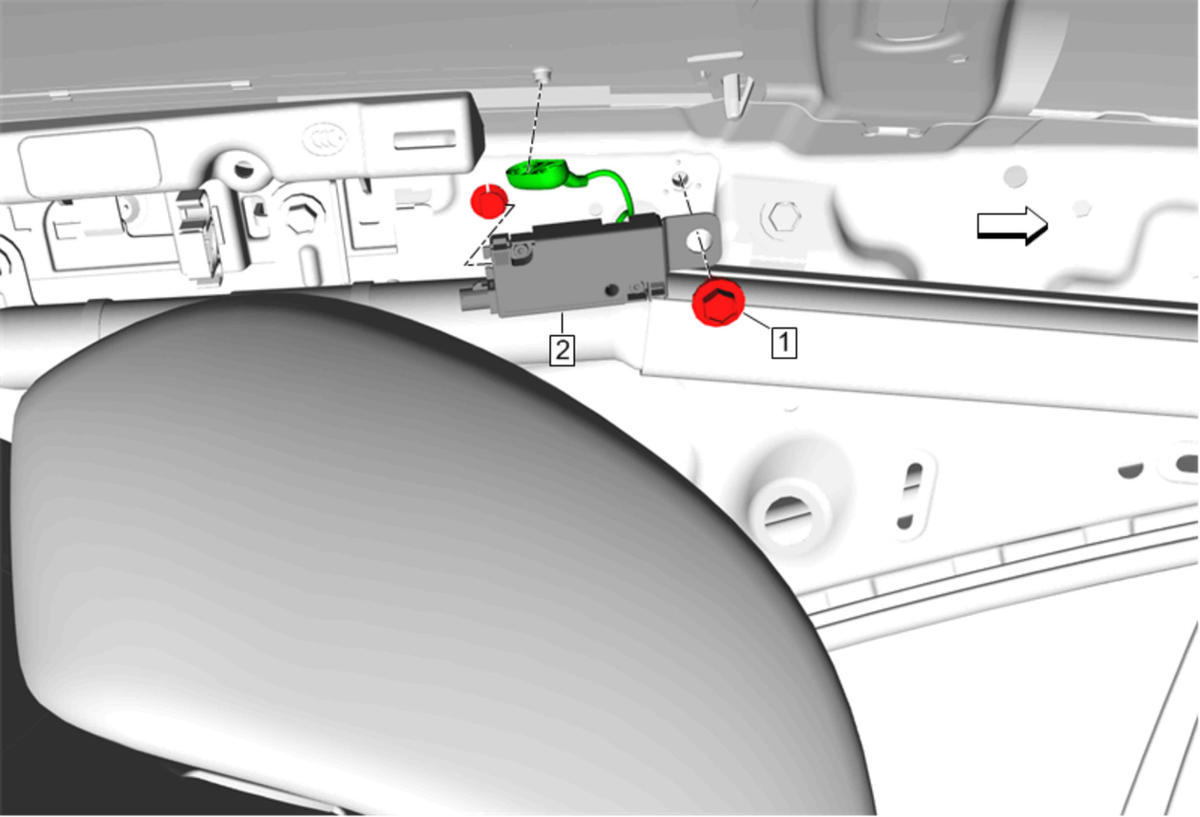

Fig 1: Radio Antenna Amplifier (Left Side)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the left side quarter upper trim panel. Refer to Quarter Upper Trim Panel Replacement Lower the rear of the headliner enough to gain access to the amplifier fastener. Headlining Trim Panel Replacement (Sedan With Sunroof)Headlining Trim Panel Replacement (Sedan Without Sunroof)Headlining Trim Panel Replacement (Coupe)
1	Radio Antenna Amplifier Fastener CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Radio Antenna Amplifier Procedure Disconnect all electrical connectors. Unsnap the wire from the glass.

Callout

Component Name

Preliminary Procedures

Remove the left side quarter upper trim panel. Refer to Quarter Upper Trim Panel Replacement
Lower the rear of the headliner enough to gain access to the amplifier fastener. Headlining Trim Panel Replacement (Sedan With Sunroof)Headlining Trim Panel Replacement (Sedan Without Sunroof)Headlining Trim Panel Replacement (Coupe)

Radio Antenna Amplifier Fastener

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Radio Antenna Amplifier

Procedure

Disconnect all electrical connectors.
Unsnap the wire from the glass.
