Active Noise Cancellation Microphone Grille Replacement
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

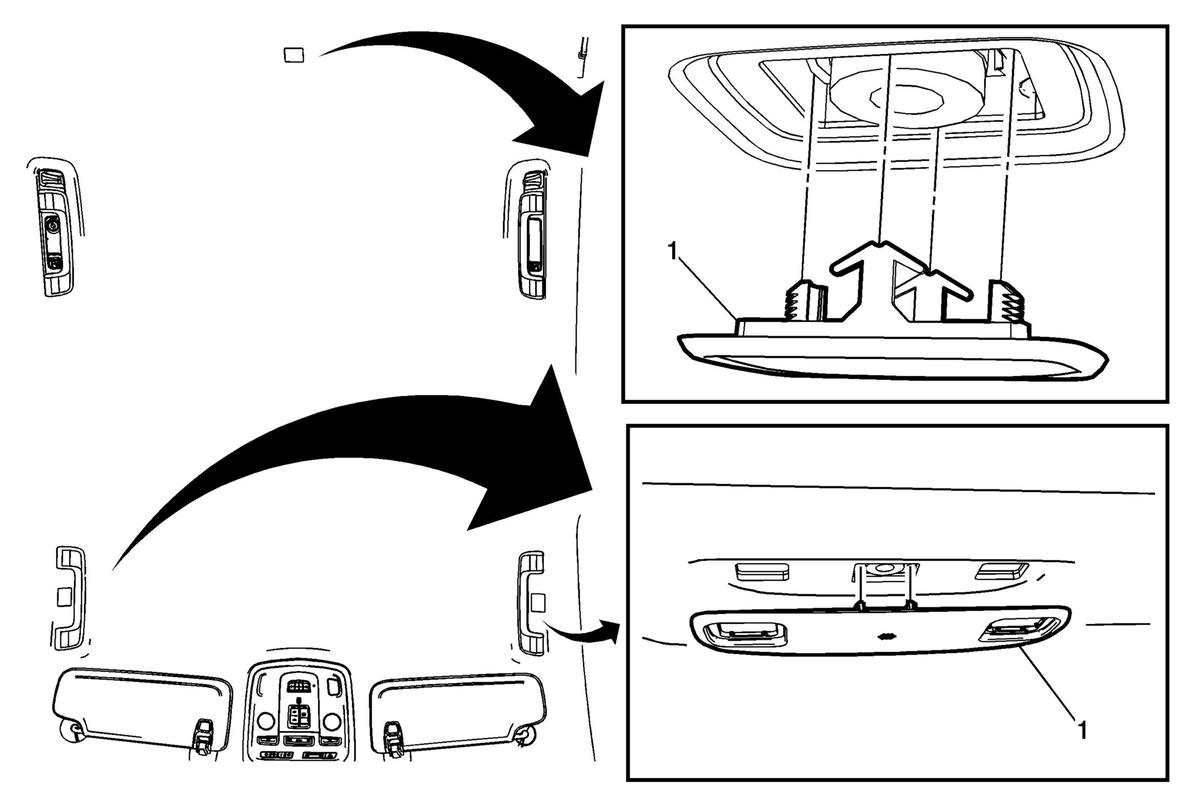

| Callout | Component Name |
|---|---|
| Preliminary Procedure Lower the headlining trim panel in the location of the microphone grille to be replaced. Refer to Headlining Trim Panel Replacement (Sedan With Sunroof)Headlining Trim Panel Replacement (Sedan Without Sunroof)Headlining Trim Panel Replacement (Coupe) . |
|
| 1 | Active Noise Cancellation Microphone Grille (Qty: 3) Procedure Using the appropriate tool, gently remove grille from the headlining trim panel. |
