Lane Keep Assist (UHX-UGN) and Forward Collision Alert (UEU)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

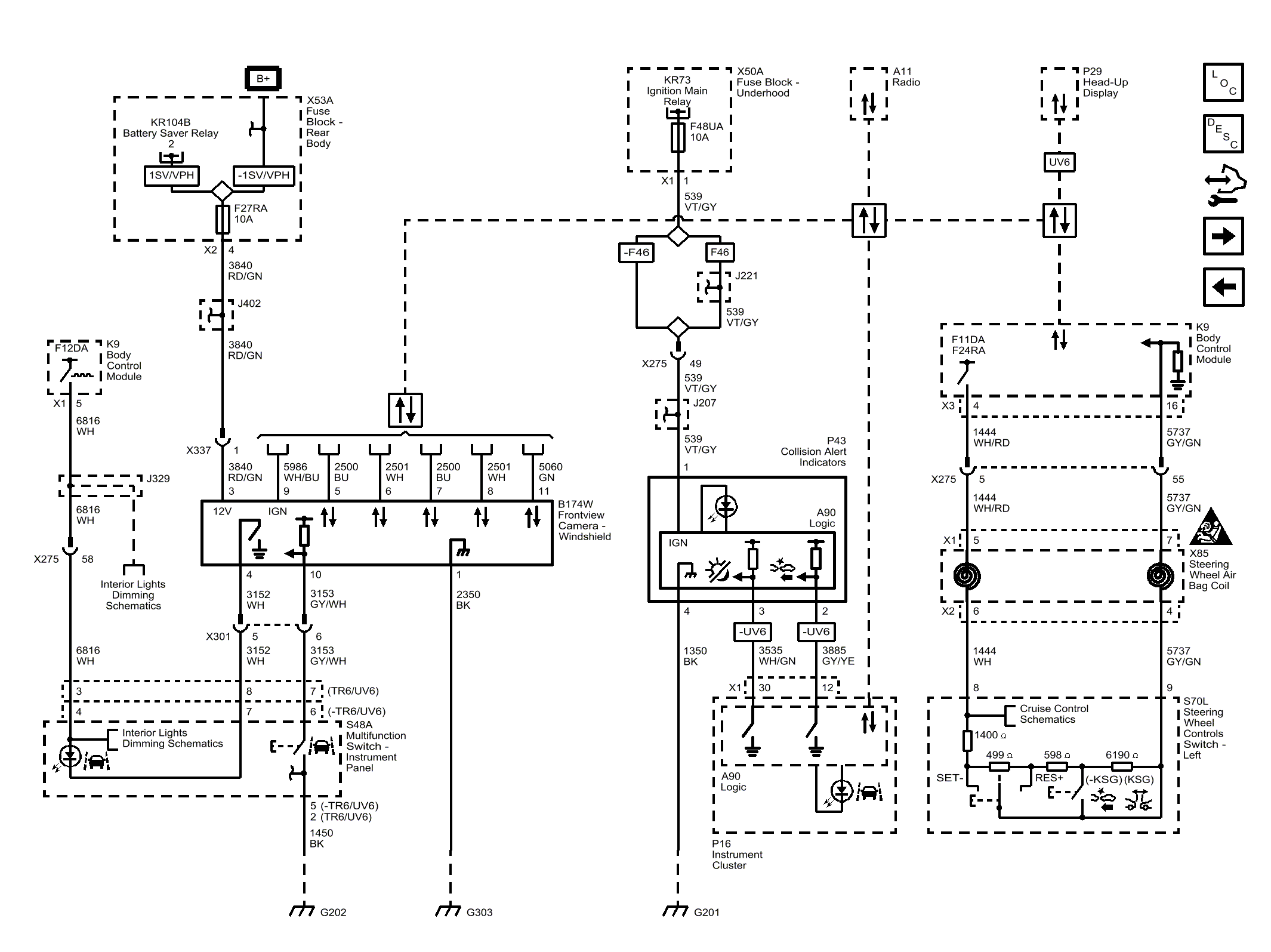

Fig 1: Lane Keep Assist (UHX-UGN) and Forward Collision Alert (UEU)
GM4492328Courtesy of GENERAL MOTORS COMPANY
