Temperature Valve Actuator Replacement - Left Side

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

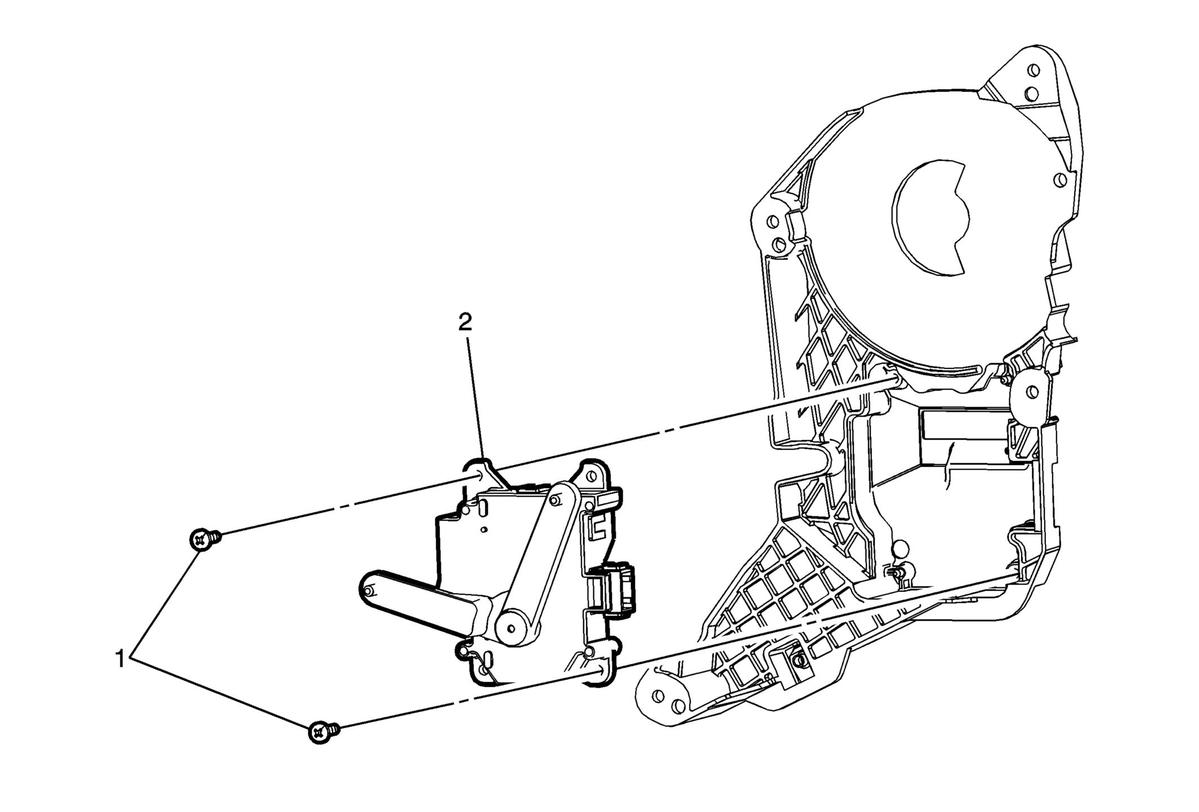

Fig 1: Temperature Valve Actuator - Left Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the heater and air conditioning mode control cam cover assembly. Refer to Mode Control Cam Cover Replacement .
1	Temperature Valve Actuator Fastener (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Temperature Valve Actuator - Left Side Procedures Disconnect the left side temperature valve actuator connector. Perform the actuator calibration procedure. Refer to Actuator Recalibration .

Callout

Component Name

Preliminary Procedure
Remove the heater and air conditioning mode control cam cover assembly. Refer to Mode Control Cam Cover Replacement .

Temperature Valve Actuator Fastener (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Temperature Valve Actuator - Left Side

Procedures

Disconnect the left side temperature valve actuator connector.
Perform the actuator calibration procedure. Refer to Actuator Recalibration .
