Mode Control Cam Actuator Lever Replacement
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

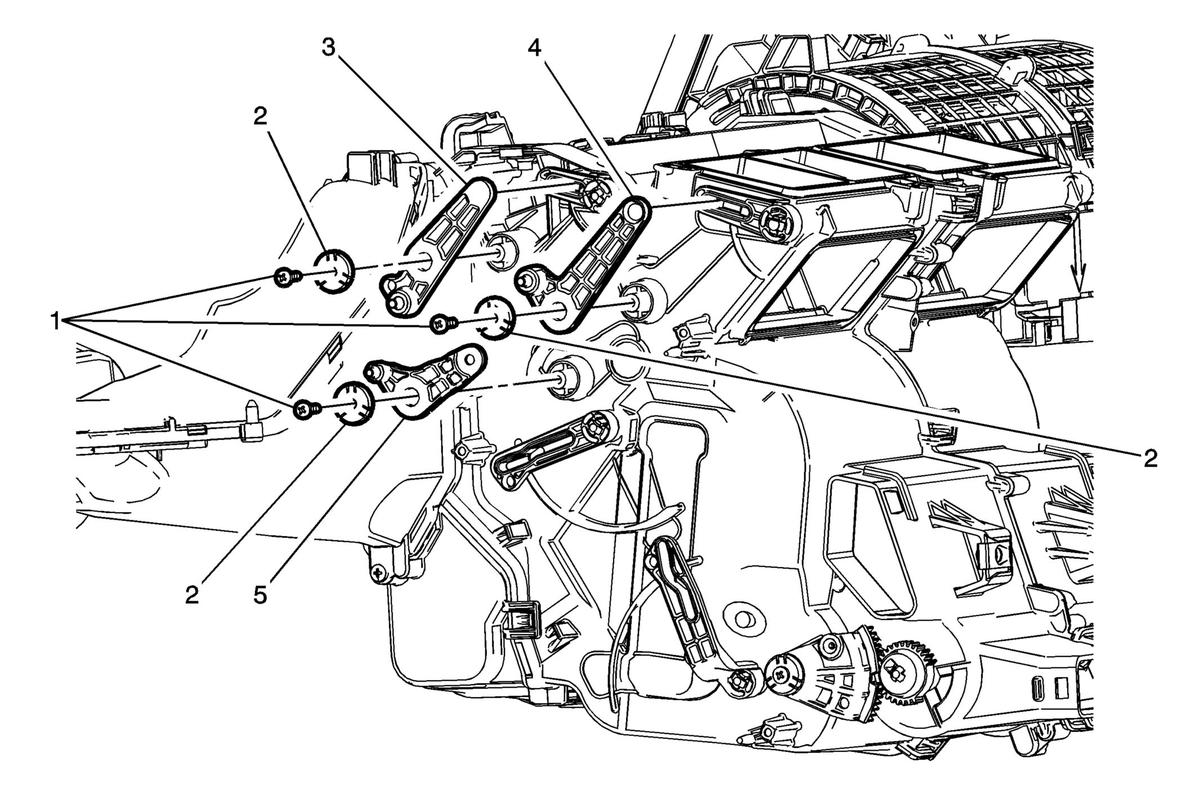

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the heater and air conditioning mode control cam cover assembly. Refer to Mode Control Cam Cover Replacement . |
|
| 1 | Mode Control Cam Actuator Lever Fastener (Qty: 3)
CAUTION:
Refer to Fastener Caution . |
| 2 | Mode Control Cam Actuator Lever Washer (Qty: 3) |
| 3 | Mode Control Cam Actuator Lever - Defroster Sub |
| 4 | Mode Control Cam Actuator Lever - Face Sub |
| 5 | Mode Control Cam Actuator Lever - Rear Mode Sub Procedures Remove the heater and air conditioning control temperature rod. Refer to Heater and Air Conditioning Control Temperature Rod Replacement . |
