Evaporator Air Temperature Sensor Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

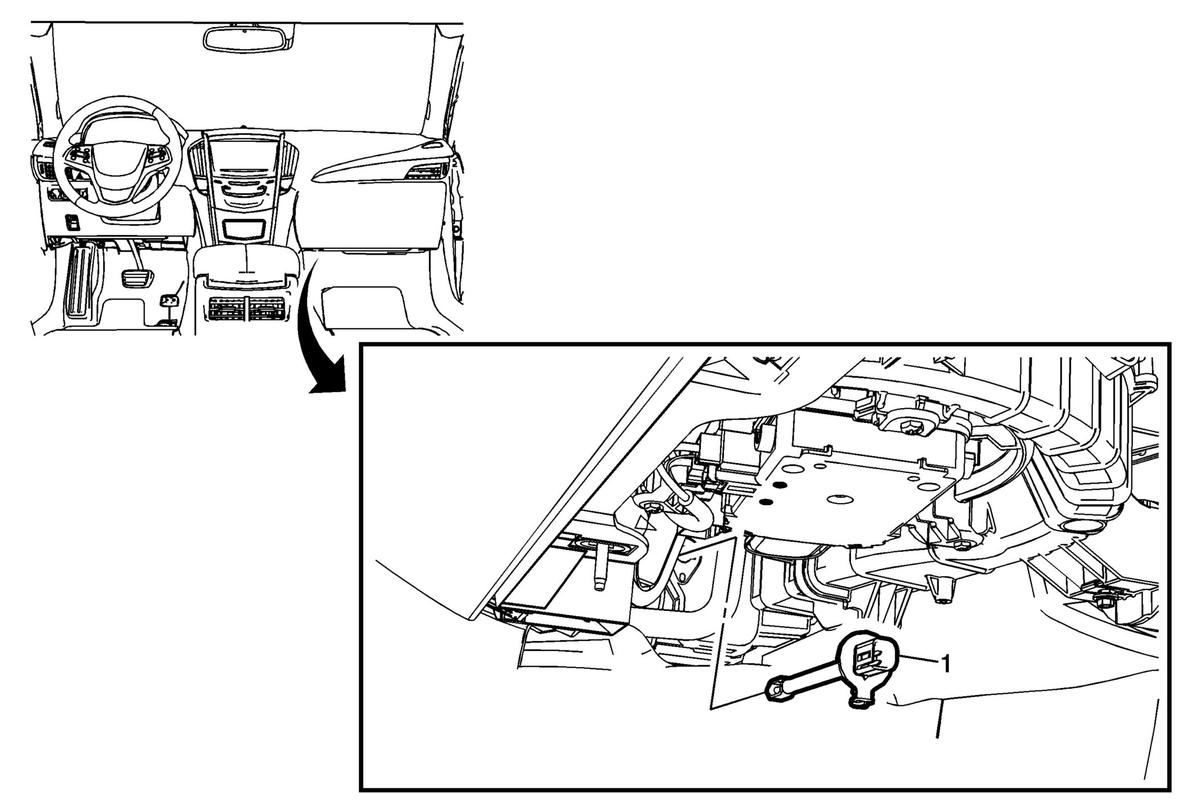

Fig 1: Evaporator Air Temperature Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the passenger side instrument panel lower air bag module. Refer to Instrument Panel Lower Airbag Replacement - Passenger Side . Remove the right front floor air outlet duct. Refer to Floor Front Air Outlet Duct Replacement - Right Side .
1	Air Conditioning Evaporator Air Temperature Sensor Procedures Disconnect the air conditioning evaporator air temperature sensor connector. To remove the air conditioning evaporative temperature sensor, release the locking tab, and turn the air conditioning evaporative temperature sensor counter clock wise a quarter of a turn.

Callout

Component Name

Preliminary Procedures

Remove the passenger side instrument panel lower air bag module. Refer to Instrument Panel Lower Airbag Replacement - Passenger Side .
Remove the right front floor air outlet duct. Refer to Floor Front Air Outlet Duct Replacement - Right Side .

Air Conditioning Evaporator Air Temperature Sensor

Procedures

Disconnect the air conditioning evaporator air temperature sensor connector.
To remove the air conditioning evaporative temperature sensor, release the locking tab, and turn the air conditioning evaporative temperature sensor counter clock wise a quarter of a turn.
