Duct Air Temperature Sensor Replacement - Lower Right Side
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY
| Callout |
Component Name |
|
Preliminary Procedures
- Remove the instrument panel compartment assembly. Refer to Instrument Panel Compartment Replacement
.
- Remove the right side front floor console extension panel. Refer to Front Floor Console Extension Panel Replacement - Right Side
.
|
| 1 |

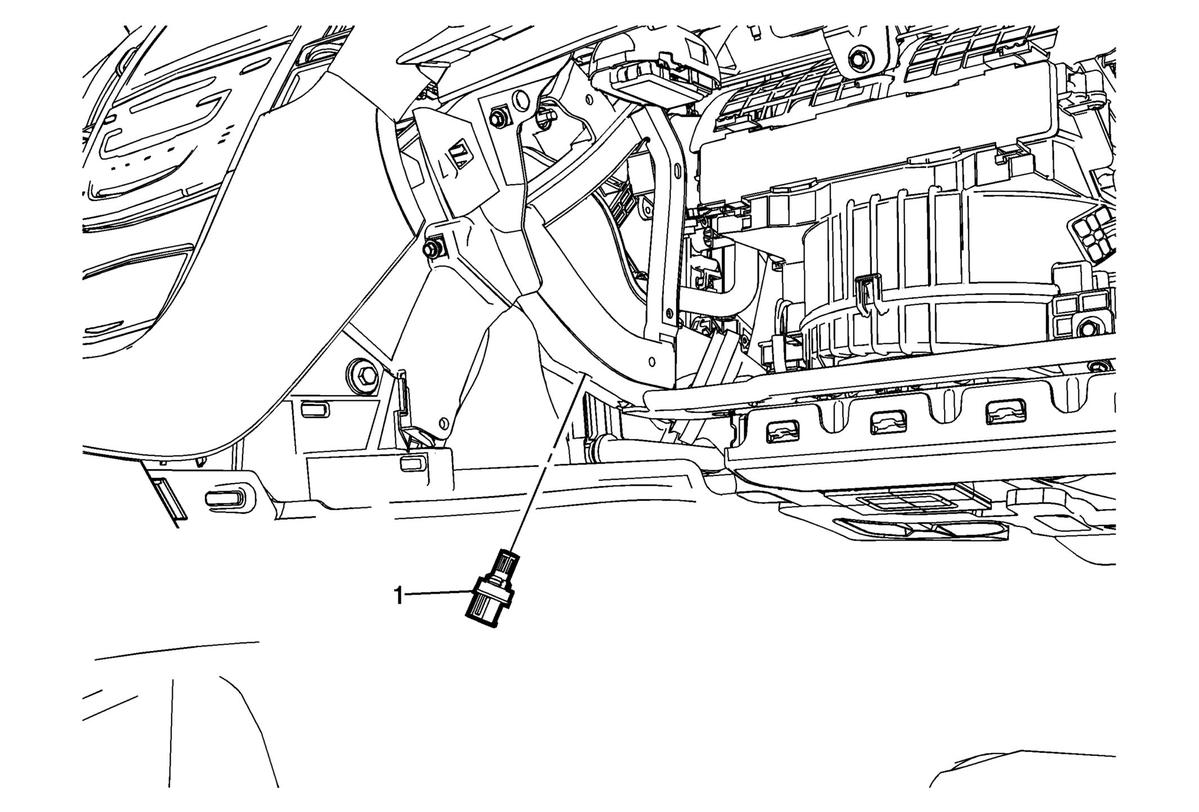

Duct Air Temperature Sensor - Lower Right Side Procedures
- Disconnect the right lower duct air temperature sensor connector.
- To remove the right lower duct air temperature sensor, pull the right lower duct air temperature sensor out of the air distributor lower duct.
|
