Duct Air Temperature Sensor Replacement - Lower Left Side

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

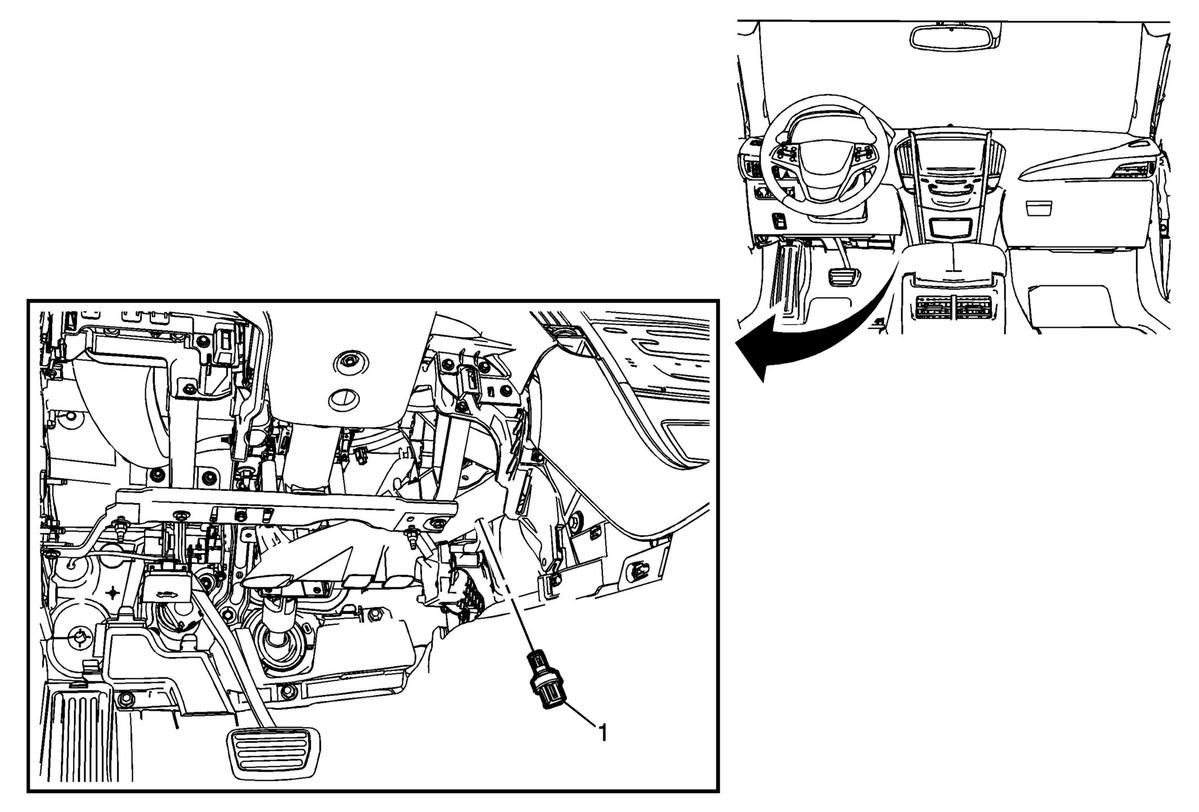

Fig 1: Duct Air Temperature Sensor - Lower Left Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the instrument panel knee bolster assembly. Refer to Instrument Panel Knee Bolster Replacement .
1	Duct Air Temperature Sensor - Lower Left Side Procedures Disconnect the left lower duct air temperature sensor connector. To remove the left lower duct air temperature sensor, pull the left lower duct air temperature sensor out of the air distributor lower duct.

Callout

Component Name

Preliminary Procedures
Remove the instrument panel knee bolster assembly. Refer to Instrument Panel Knee Bolster Replacement .

Duct Air Temperature Sensor - Lower Left Side

Procedures

Disconnect the left lower duct air temperature sensor connector.
To remove the left lower duct air temperature sensor, pull the left lower duct air temperature sensor out of the air distributor lower duct.
