Sunroof Panel Side Opening Closeout Cover Replacement
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

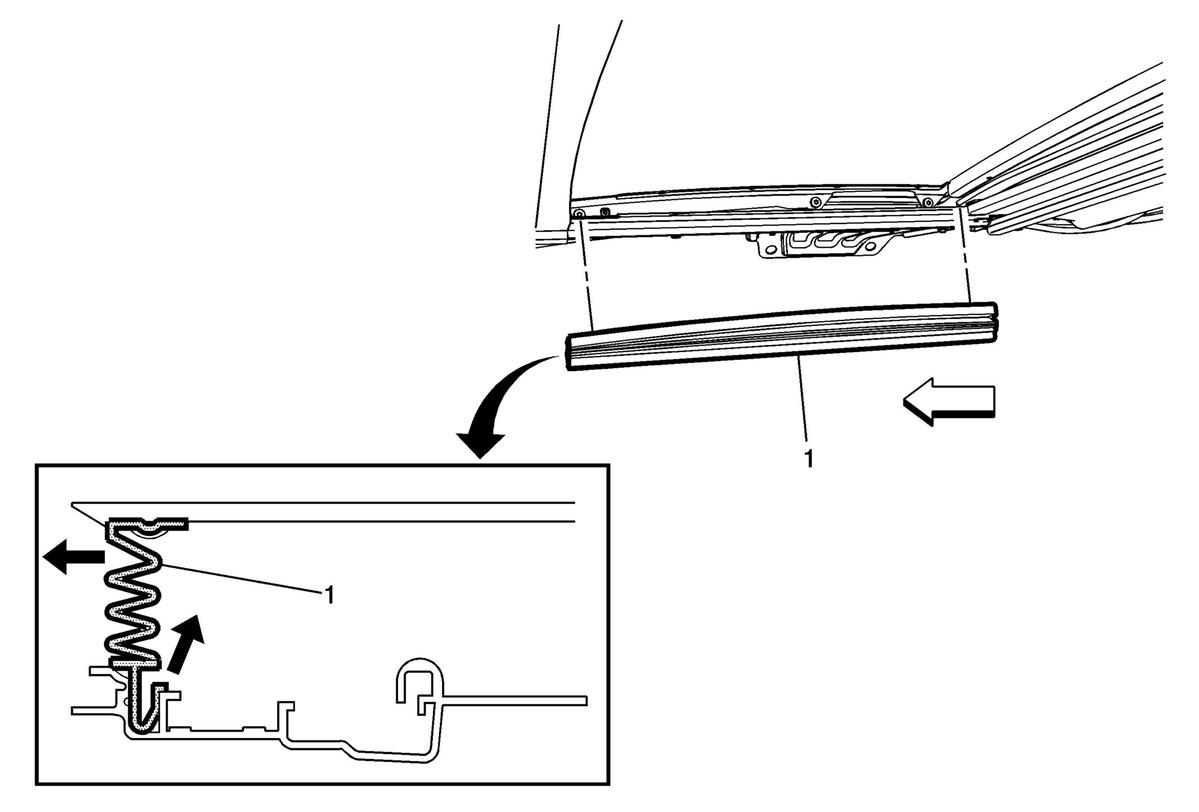

| Callout |
Component Name |
| 1 |
Sunroof Panel Side Opening Closeout Cover Procedure
- Place the sunshade in the full open position.
- Position the sunroof window in the vent position.
- Remove the sunroof side opening closeout panel covers, grasp the top corner working it rearward releasing it from the frame.
|
