Sunroof Air Deflector Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

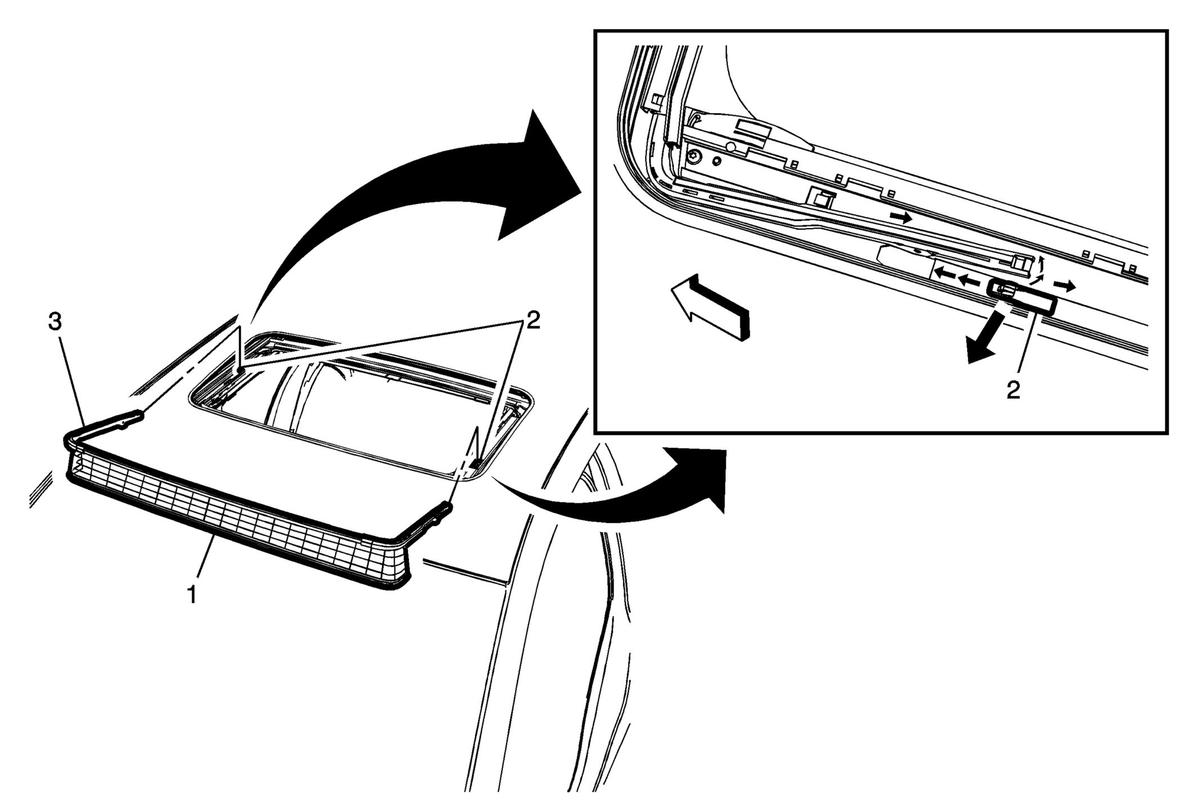

Fig 1: Sunroof Air Deflector

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Sunroof Air Deflector Lower Retainer Rubber Strip to Frame Procedure Place the sunshade in the full open position. Cycle the sunroof window to the fully open position. With the air deflector in the full up position. Grasp the lower retainer rubber strip that attaches the air deflector to the sunroof front frame. Pull upward on the lower retainer rubber strip until fully released.
2	Sunroof Air Deflector Guide (Qty :2) Procedure With the air deflector in the full up position and the lower retainer rubber strip released. Slide the air deflector rearward in order to disengage air deflector from the guides on the left/right sides of the sunroof frame.
3	Sunroof Air Deflector

Callout

Component Name

Sunroof Air Deflector Lower Retainer Rubber Strip to Frame

Procedure

Place the sunshade in the full open position.
Cycle the sunroof window to the fully open position.
1. With the air deflector in the full up position.
2. Grasp the lower retainer rubber strip that attaches the air deflector to the sunroof front frame.
3. Pull upward on the lower retainer rubber strip until fully released.

Sunroof Air Deflector Guide (Qty :2)

Procedure

With the air deflector in the full up position and the lower retainer rubber strip released.
Slide the air deflector rearward in order to disengage air deflector from the guides on the left/right sides of the sunroof frame.

Sunroof Air Deflector
