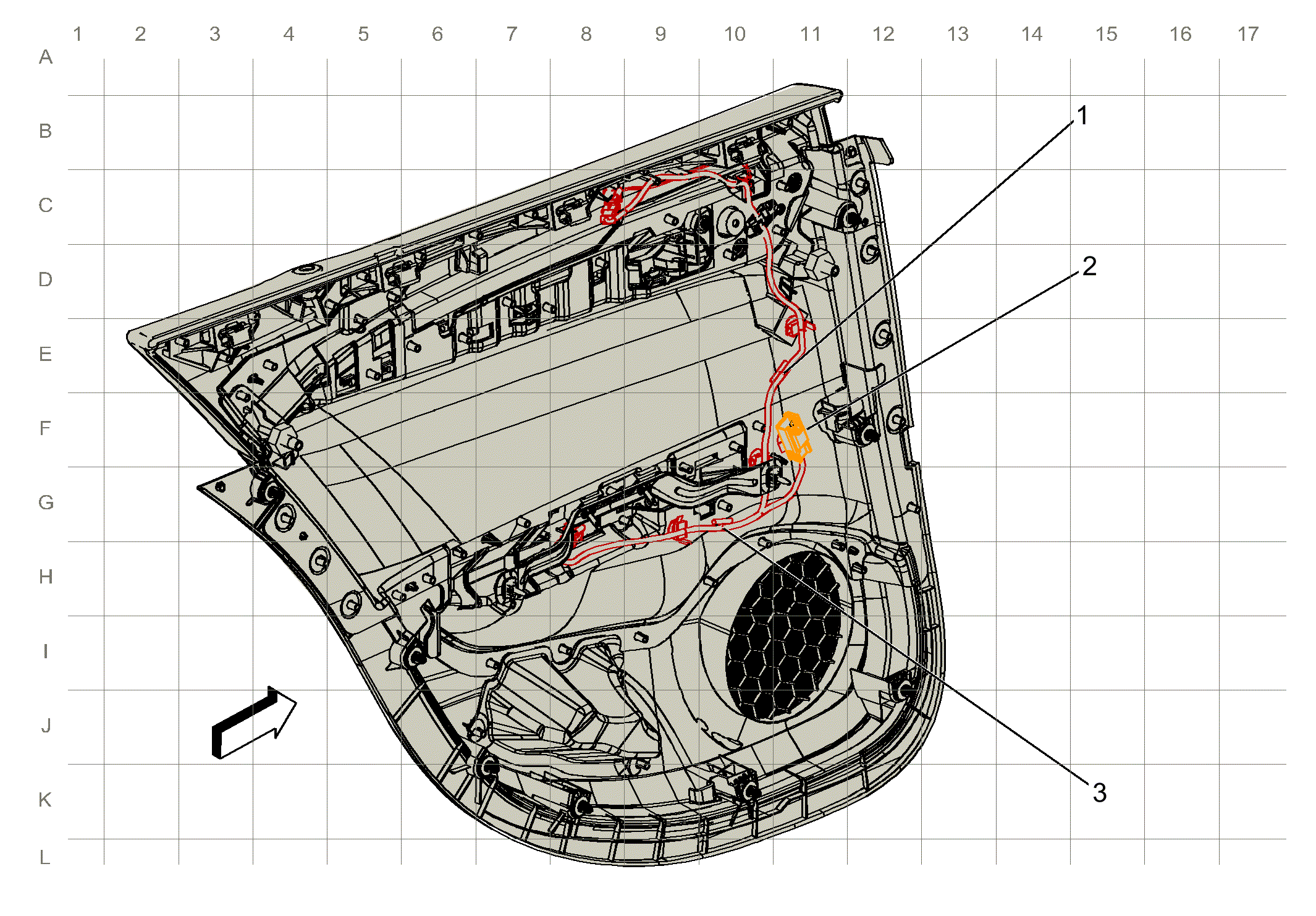

Right Rear Door Trim Harness Routing (Sedan)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. J805 Right Rear Door Trim Harness (Sedan) |
| 2. X805 Right Rear Door Harness to Right Rear Door Trim Harness (3 cavities) (Sedan) X805 Right Rear Door Harness to Right Rear Door Trim Harness (Sedan) |
| 3. J806 Right Rear Door Trim Harness (Sedan) |
