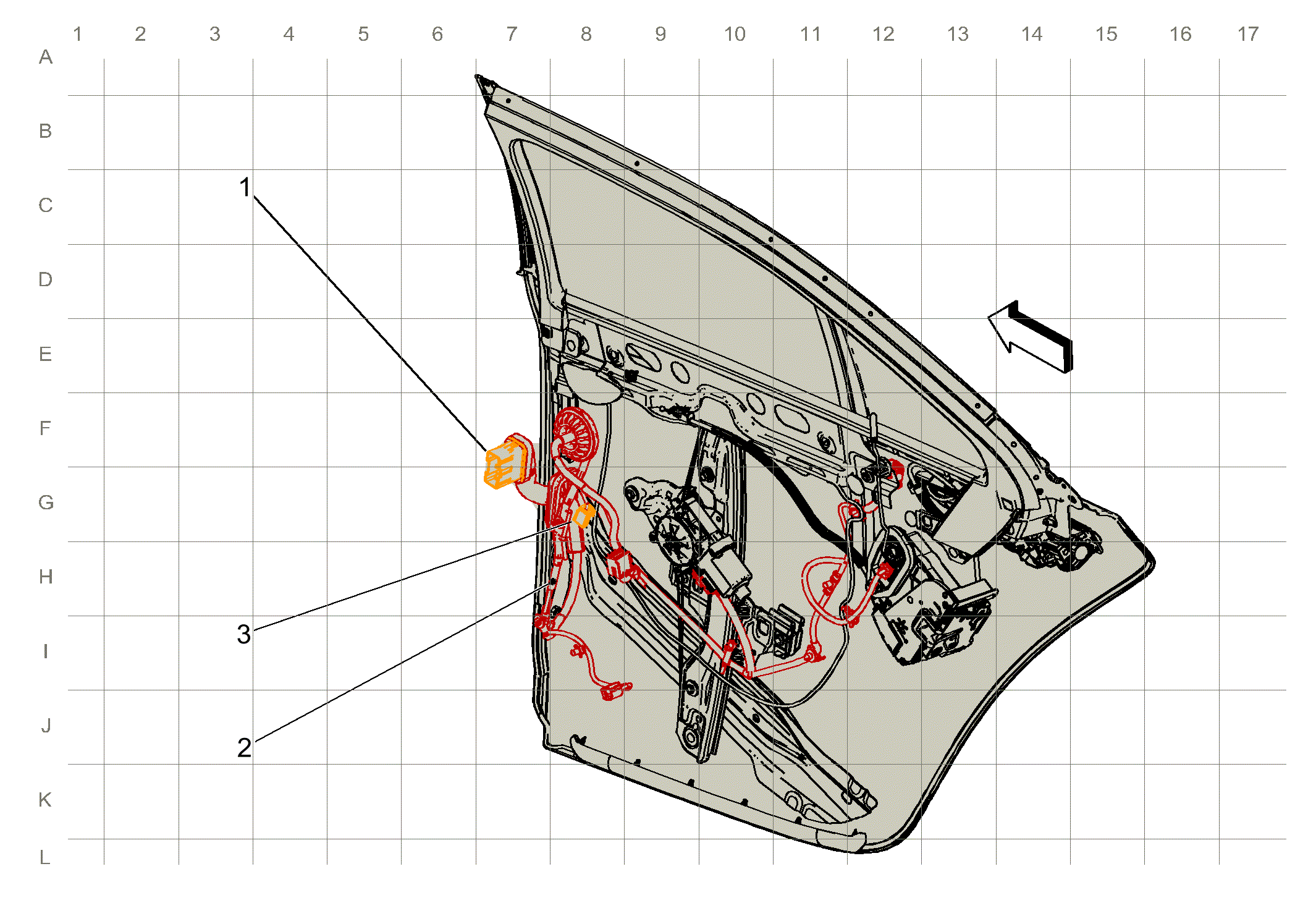

Right Rear Door Harness Routing (Sedan)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. X800 Body Harness to Right Rear Door Harness (24 cavities) (Sedan) X800 Body Harness to Right Rear Door Harness (Sedan) |
| 2. J800 Right Rear Door Harness (Sedan) |
| 3. X805 Right Rear Door Harness to Right Rear Door Trim Harness (3 cavities) (Sedan) X805 Right Rear Door Harness to Right Rear Door Trim Harness (Sedan) |
