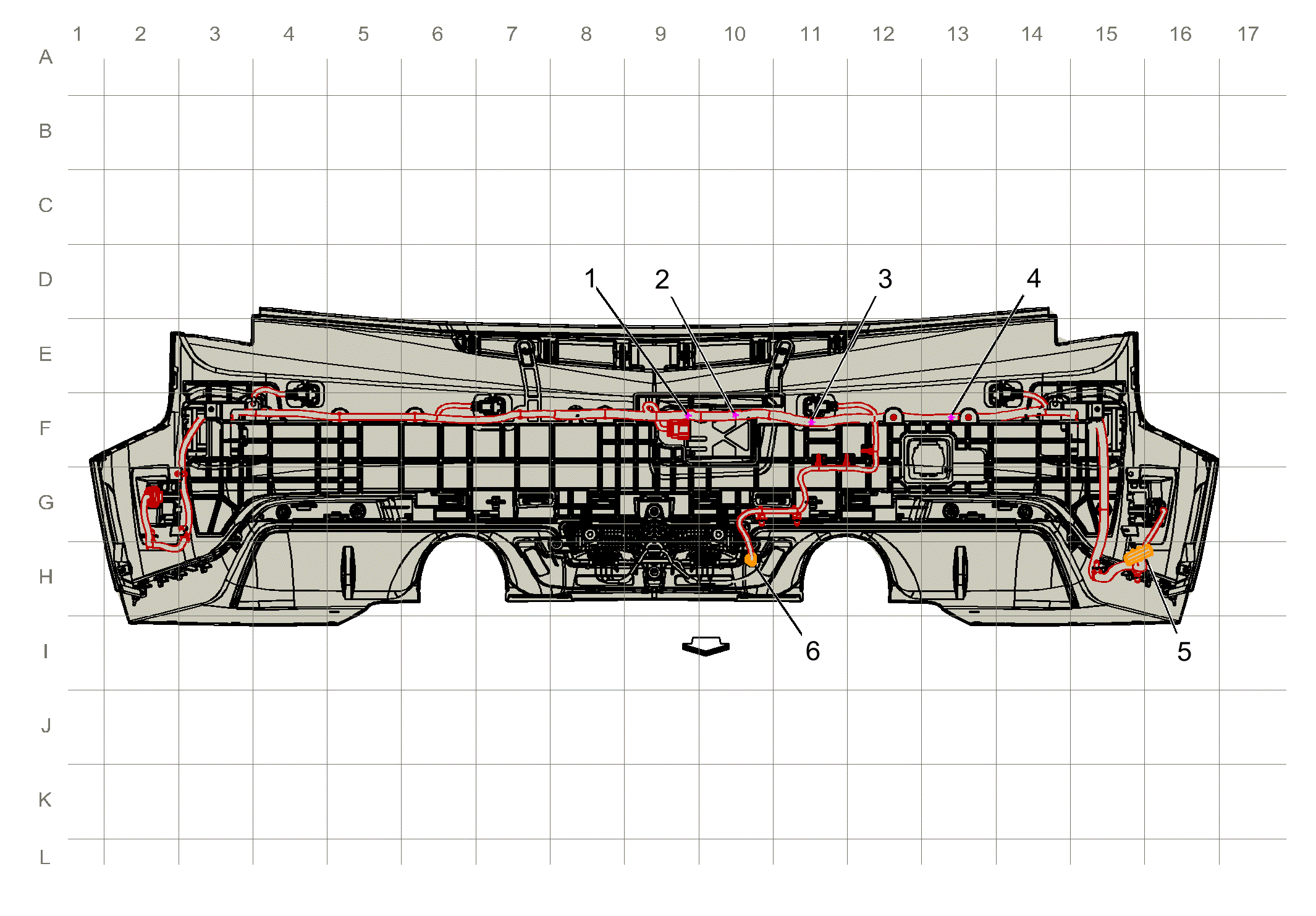

Rear Fascia Harness Routing
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. J415 Rear Fascia Harness (UKC/UVZ) |
| 2. J417 Rear Fascia Harness (UD5/UD7) |
| 3. J418 Rear Fascia Harness (UD5/UD7) |
| 4. J416 Rear Fascia Harness (UKC) |
| 5. X415 Body Harness to Rear Fascia Harness (20 cavities) X415 Body Harness to Rear Fascia Harness |
| 6. X416 Body Harness to Backup Lamp Assembly Harness (3 Cavities) X416 Rear Fascia Harness to Backup Lamp Harness (-T79)X416 Rear Fascia Harness to Backup Lamp Harness (T79) |
