Passenger Door Trim Harness Routing (Sedan)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

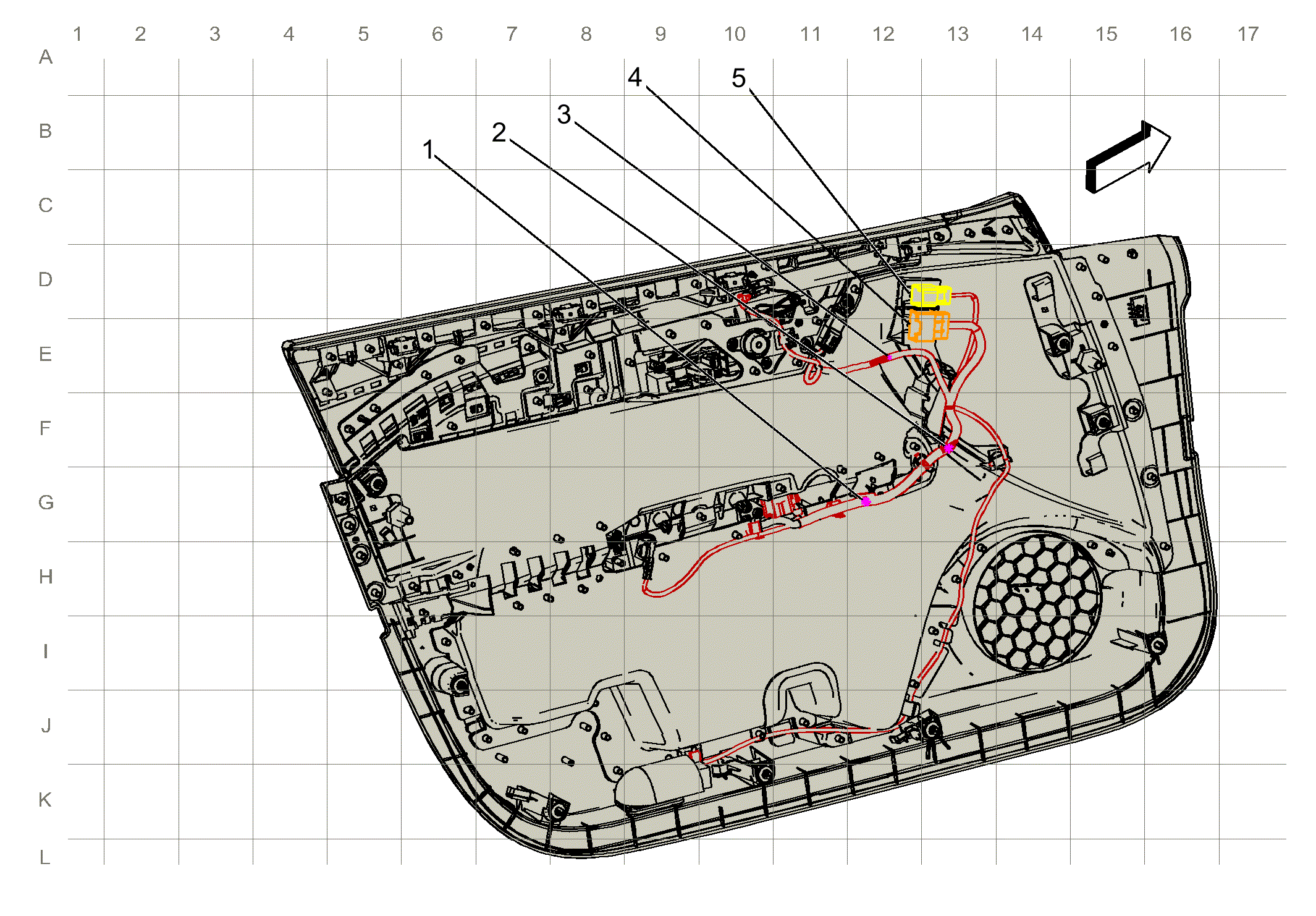

Fig 1: Passenger Door Trim Harness Routing (Sedan)

Courtesy of GENERAL MOTORS COMPANY

Items
1. J607 Passenger Door Trim Harness
2. J609 Passenger Door Trim Harness
3. J605 Passenger Door Trim Harness
4. X606 Passenger Door Harness to Passenger Door Trim Harness (20 Cavities) X606 Passenger Door Harness to Passenger Door Trim Harness
5. X605 Passenger Door Harness to Passenger Door Trim Harness (12 Cavities) X605 Passenger Door Harness to Passenger Door Trim Harness (Sedan/A45+DR4)
