Passenger Door Harness Routing (Sedan)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

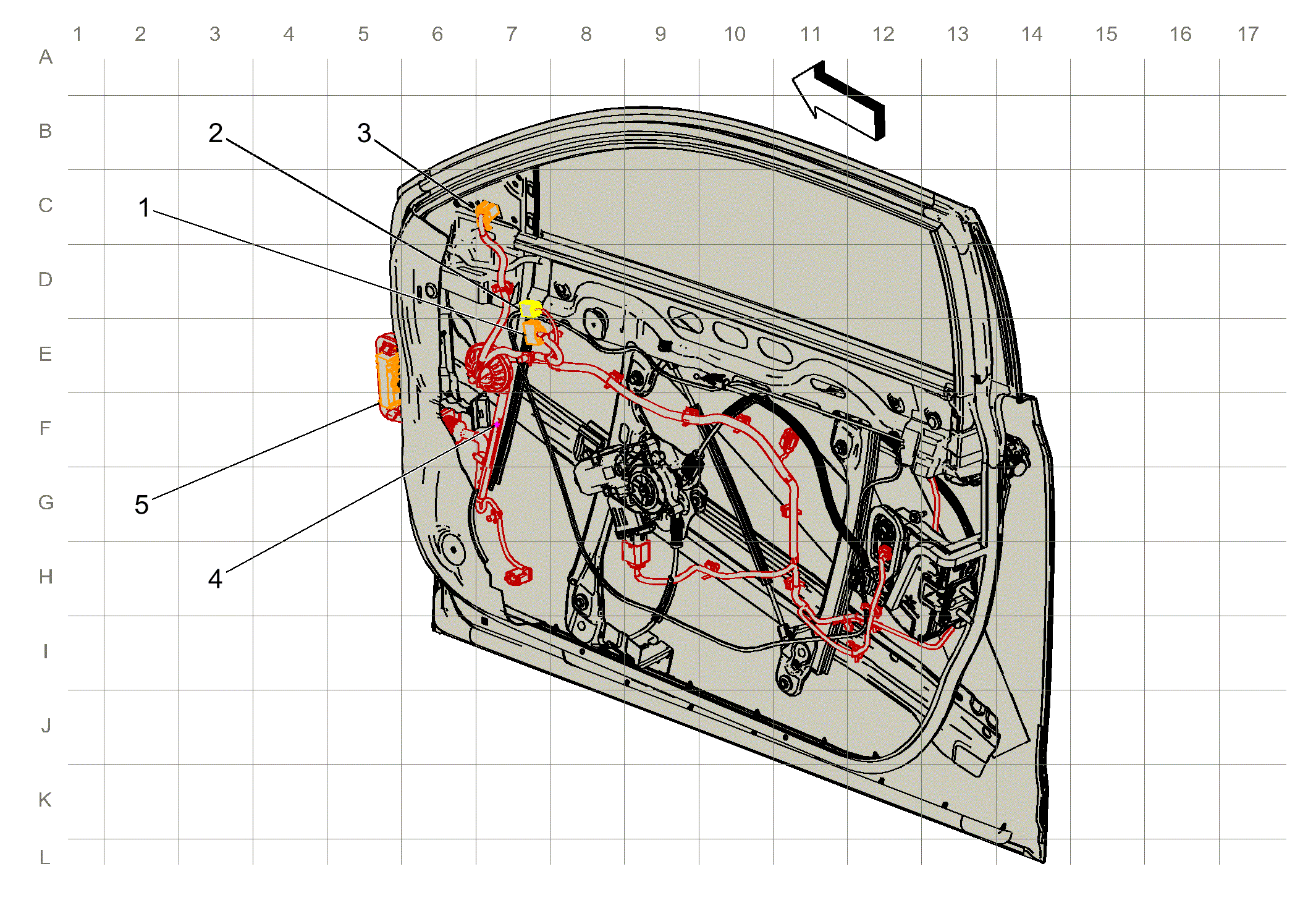

Fig 1: Passenger Door Harness Routing (Sedan)
GM4055833Courtesy of GENERAL MOTORS COMPANY
Items
1. X606 Passenger Door Harness to Passenger Door Trim Harness (20 Cavities) X606 Passenger Door Harness to Passenger Door Trim Harness
2. X605 Passenger Door Harness to Passenger Door Trim Harness (12 Cavities) X605 Passenger Door Harness to Passenger Door Trim Harness (Sedan/A45+DR4)
3. X610 Passenger Door Harness to Passenger Outside Rearview Mirror Harness (18 Cavities) X610 Passenger Door Harness to Outside Rearview Mirror Harness
4. J600 Passenger Door Harness
5. X600 Passenger Door Harness to Body Harness (48 Cavities) X600 Passenger Door Harness to Body Harness (Sedan)
