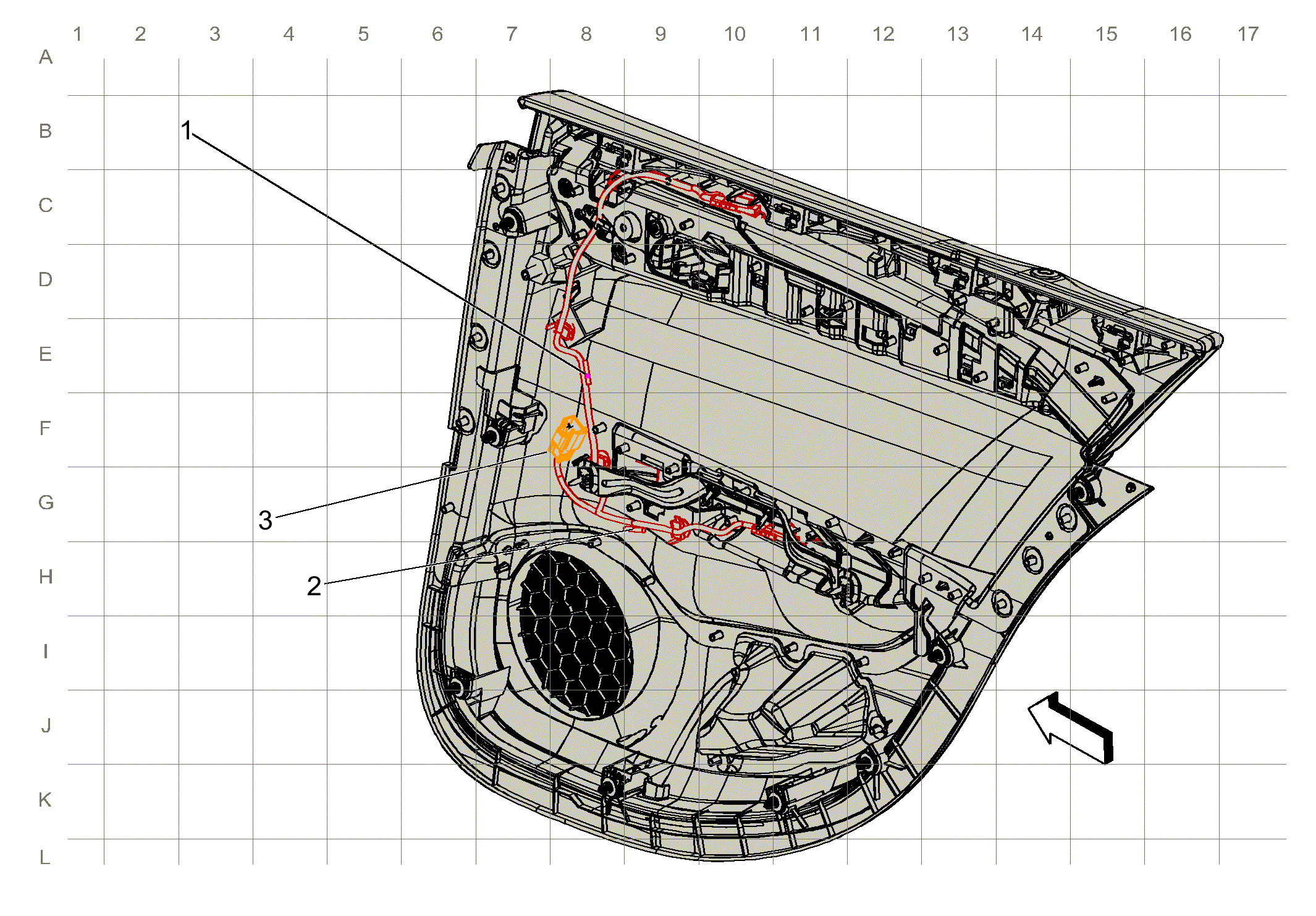

Left Rear Door Trim Harness Routing (Sedan)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. J705 Left Rear Door Trim Harness (Sedan) |
| 2. J706 Left Rear Door Trim Harness (Sedan) |
| 3. X705 Left Rear Door Harness to Left Rear Door Trim Harness (3 cavities) (Sedan) X705 Left Rear Door Harness to Left Rear Door Trim Harness (Sedan) |
