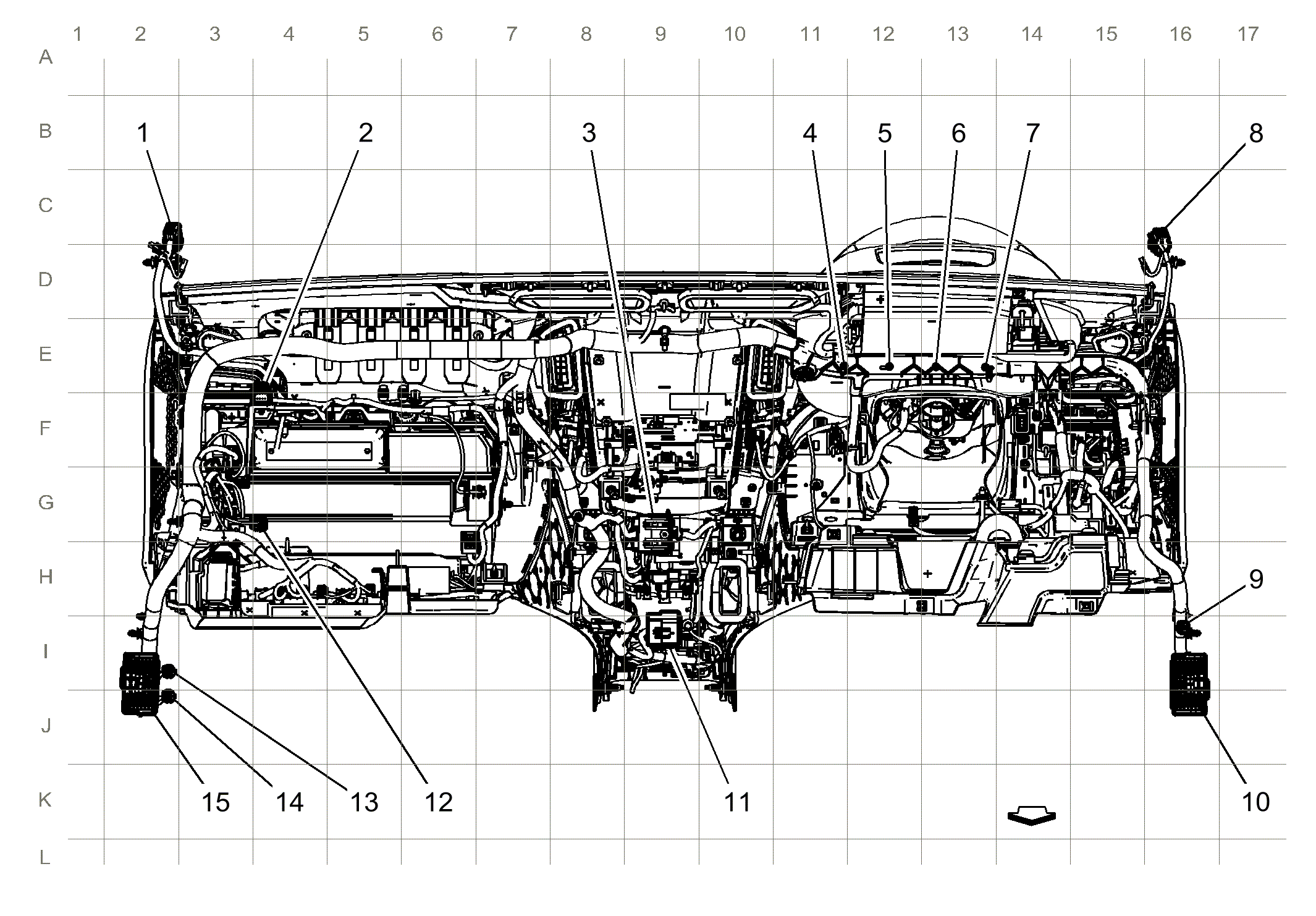

Instrument Panel Harness Routing - Rear of Instrument Panel (Sedan)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1, X301 Instrument Panel Harness to Headliner Harness (20 cavities) X301 Instrument Panel Harness to Headliner Harness |
| 2. X235 Media Disc Player Harness to Instrument Panel Harness (8 Cavities) X235 Media Disc Player Harness to Instrument Panel Harness (-WCN)X235 Media Disc Player Harness to Instrument Panel Harness (WCN) |
| 3. X206 Floor Console Harness to Instrument Panel Harness (26 cavities) X206 Floor Console Harness to Instrument Panel Harness |
| 4. J204 Instrument Panel Harness |
| 5. J203 Body Harness |
| 6. J202 Instrument Panel Harness |
| 7. J201 Instrument Panel Harness |
| 8. X302 Instrument Panel Harness to Headliner Harness (6 cavities) (UGN/UHX) X302 Instrument Panel Harness to Headliner Harness (UGN/UHX) |
| 9. X210 Body Harness COAX to Instrument Panel Harness COAX (1 Cavity) (UE1+IO6) X210 Body Harness to Instrument Panel Harness |
| 10. X225 Instrument Panel Harness to Body Harness (102 cavities) X225 Instrument Panel Harness to Body Harness |
| 11. X211 Floor Console Trim Harness to Instrument Panel Harness (14 cavities) X211 Floor Console Trim Harness to Instrument Panel Harness |
| 12. X309 Roof Antenna Harness COAX to Headliner Harness COAX (1 Cavity) (U2K/U2M) X309 Roof Antenna Harness to Headliner Harness (U2K/U2M) |
| 13. X221 Body Harness COAX to Instrument Panel Harness COAX (1 Cavity) X221 Body Harness to Instrument Panel Harness |
| 14. X222 Body Harness COAX to Instrument Panel Harness COAX (1 Cavity) X222 Body Harness to Instrument Panel Harness |
| 15. X275 Instrument Panel Harness to Body Harness (102 cavities) X275 Instrument Panel Harness to Body Harness |
