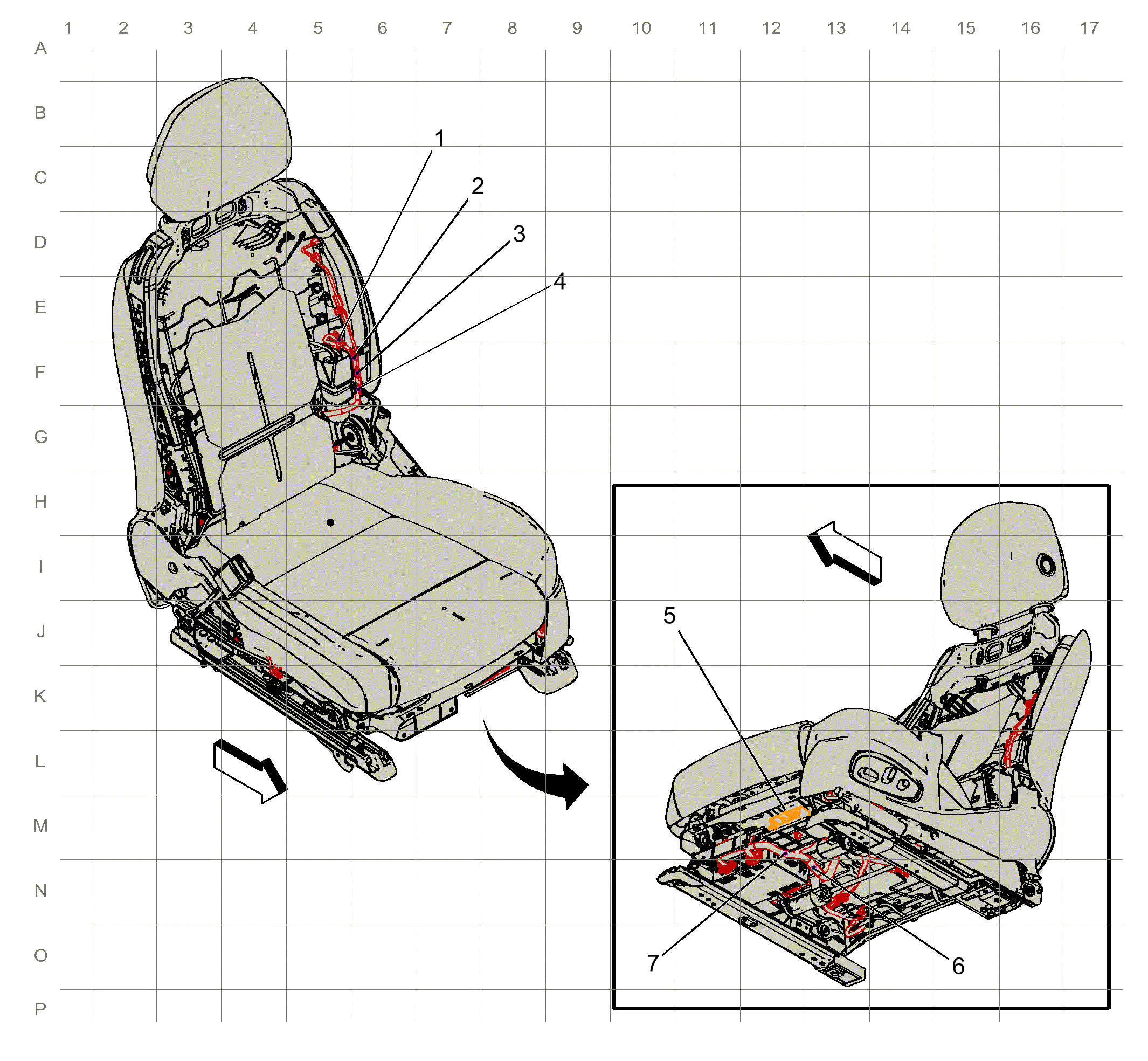

Driver Seat Harness Routing (Sedan+AE8)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. J353 Driver Seat Harness |
| 2. J354 Driver Seat Harness |
| 3. J357 Driver Seat Harness (AHE) |
| 4. J358 Driver Seat Harness (AHE) |
| 5. X310 Body Harness to Driver Seat Harness (42 cavities) X310 Body Harness to Driver Seat Harness |
| 6. J356 Driver Seat Harness |
| 7. J355 Driver Seat Harness (A45) |
