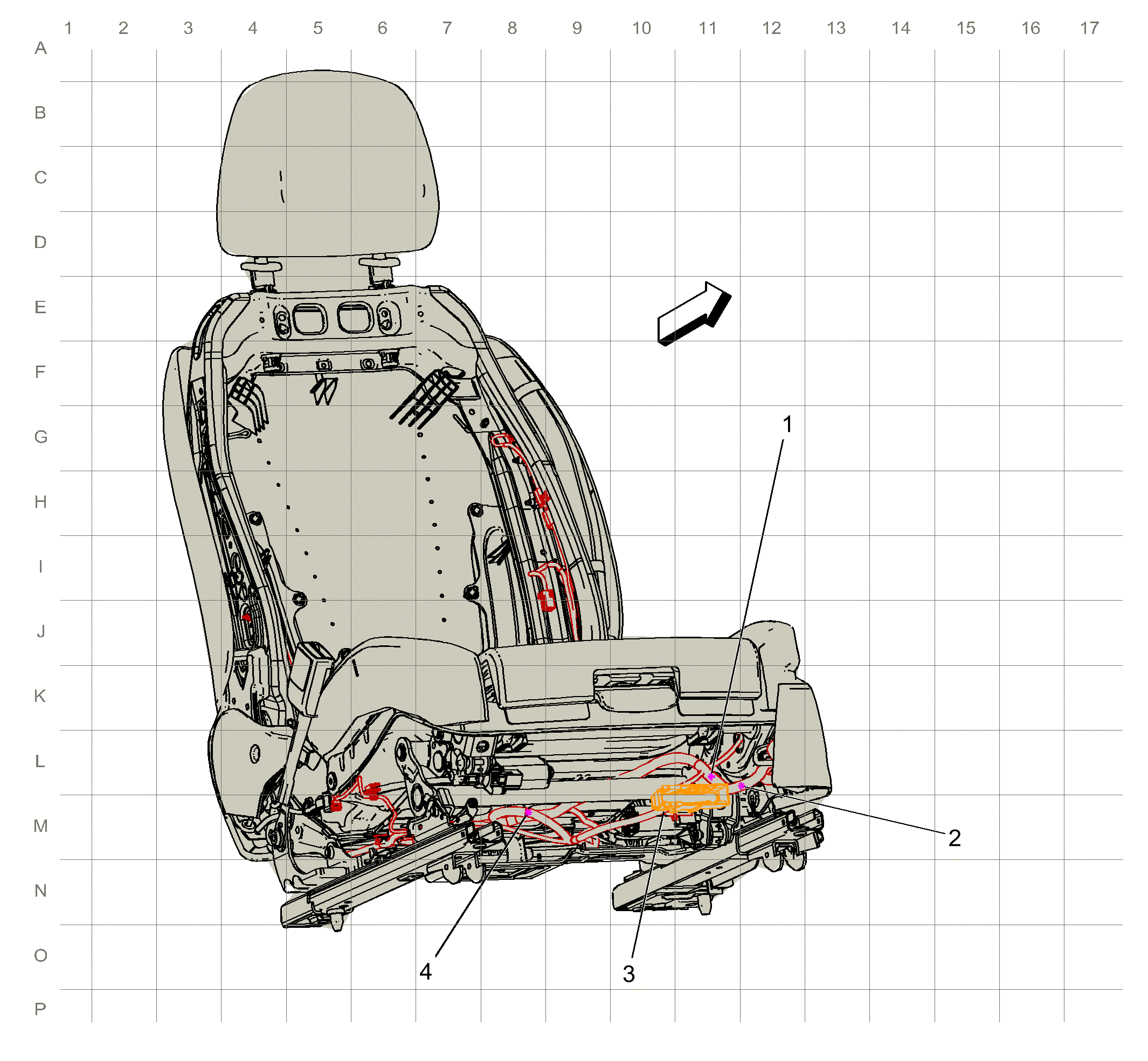

Driver Seat Harness Routing (-AE8/W2E)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. J354 Driver Seat Harness |
| 2. J353 Driver Seat Harness |
| 3. X310 Body Harness to Driver Seat Harness (42 cavities) X310 Body Harness to Driver Seat Harness |
| 4. J356 Driver Seat Harness |
