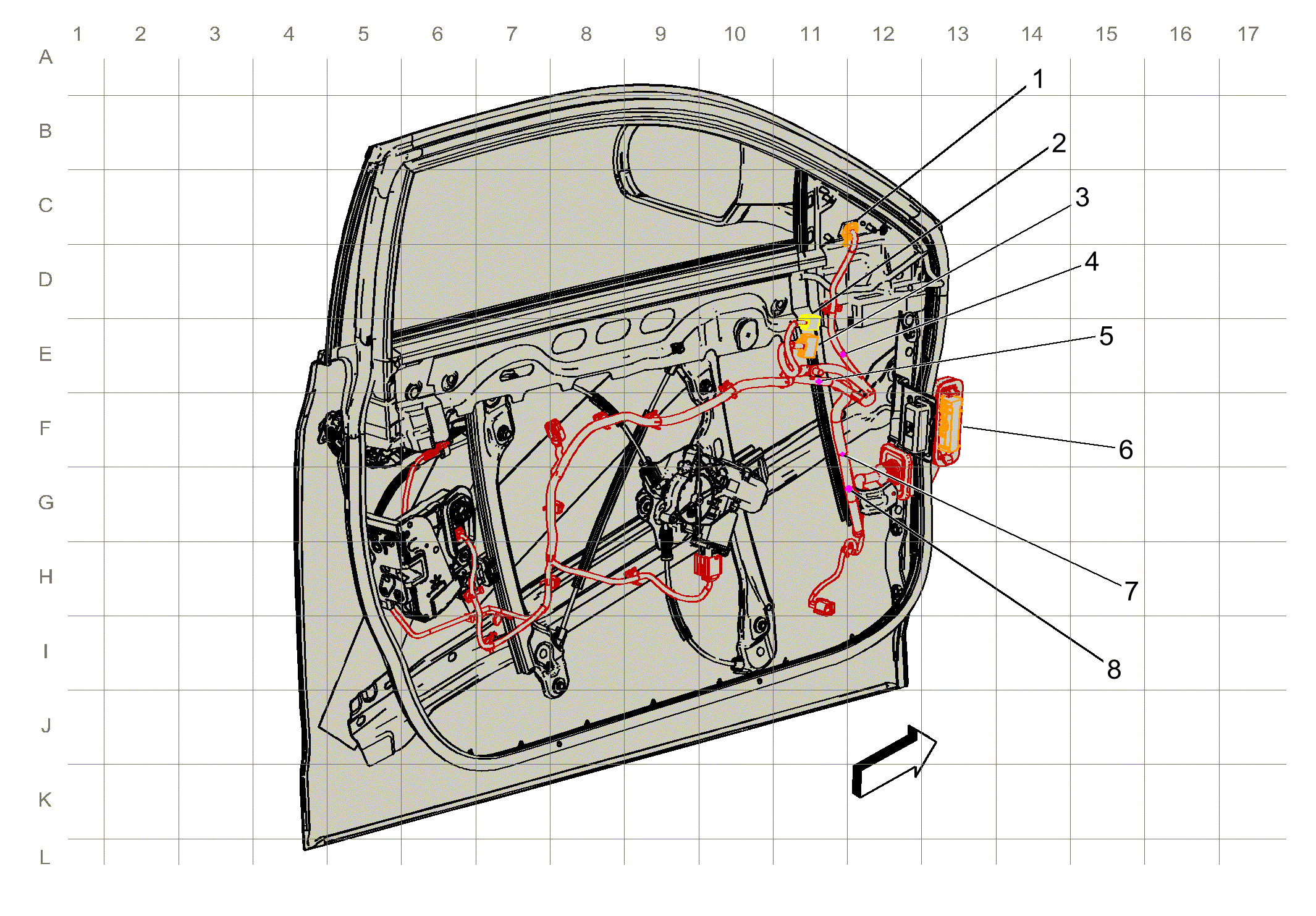

Driver Door Harness Routing (Sedan)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. X510 Driver Door Harness to Driver Outside Rearview Mirror Harness (18 Cavities) X510 Driver Door Harness to Outside Rearview Mirror Harness |
| 2. X506 Driver Door Harness to Driver Door Trim Harness (12 Cavities) X506 Driver Door Harness to Driver Door Trim Harness |
| 3. X505 Driver Door Harness to Driver Door Trim Harness (20 Cavities) X505 Driver Door Harness to Driver Door Trim Harness |
| 4. J502 Driver Door Harness |
| 5. J503 Driver Door Harness |
| 6. X500 Driver Door Harness to Body Harness (48 Cavities) X500 Driver Door Harness to Body Harness (Sedan) |
| 7. J500 Driver Door Harness |
| 8. J501 Driver Door Harness |
