Center Console Harness Routing

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

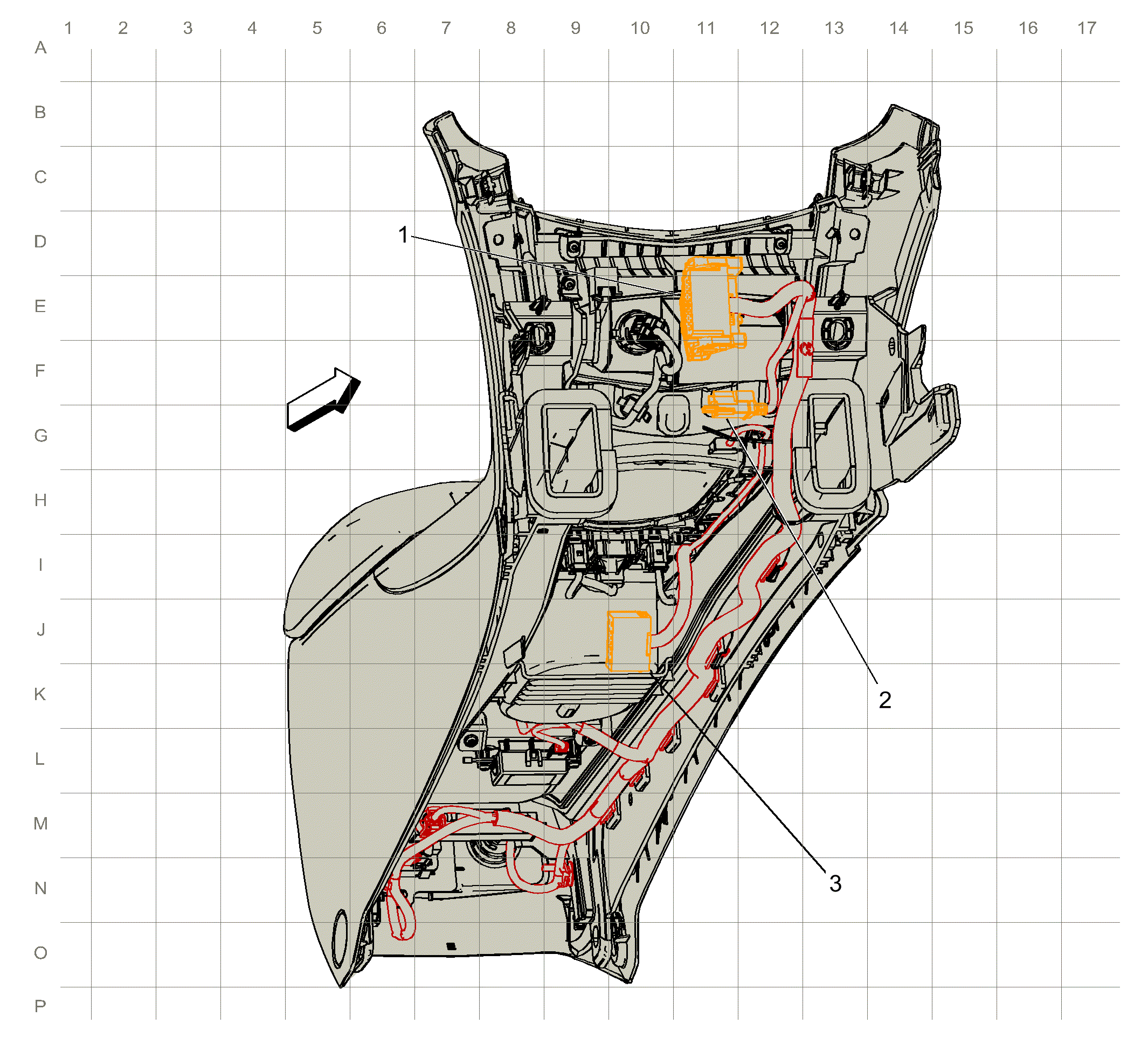

Fig 1: Center Console Harness Routing
GM4055795Courtesy of GENERAL MOTORS COMPANY
Items
1. X206 Floor Console Harness to Instrument Panel Harness (26 cavities) X206 Floor Console Harness to Instrument Panel Harness
2. X213 Instrument Panel Harness USB to Floor Console Harness USB X213 Instrument Panel Harness USB to Floor Console Harness USB
3. X211 Floor Console Trim Harness to Instrument Panel Harness (14 cavities) X211 Floor Console Trim Harness to Instrument Panel Harness
