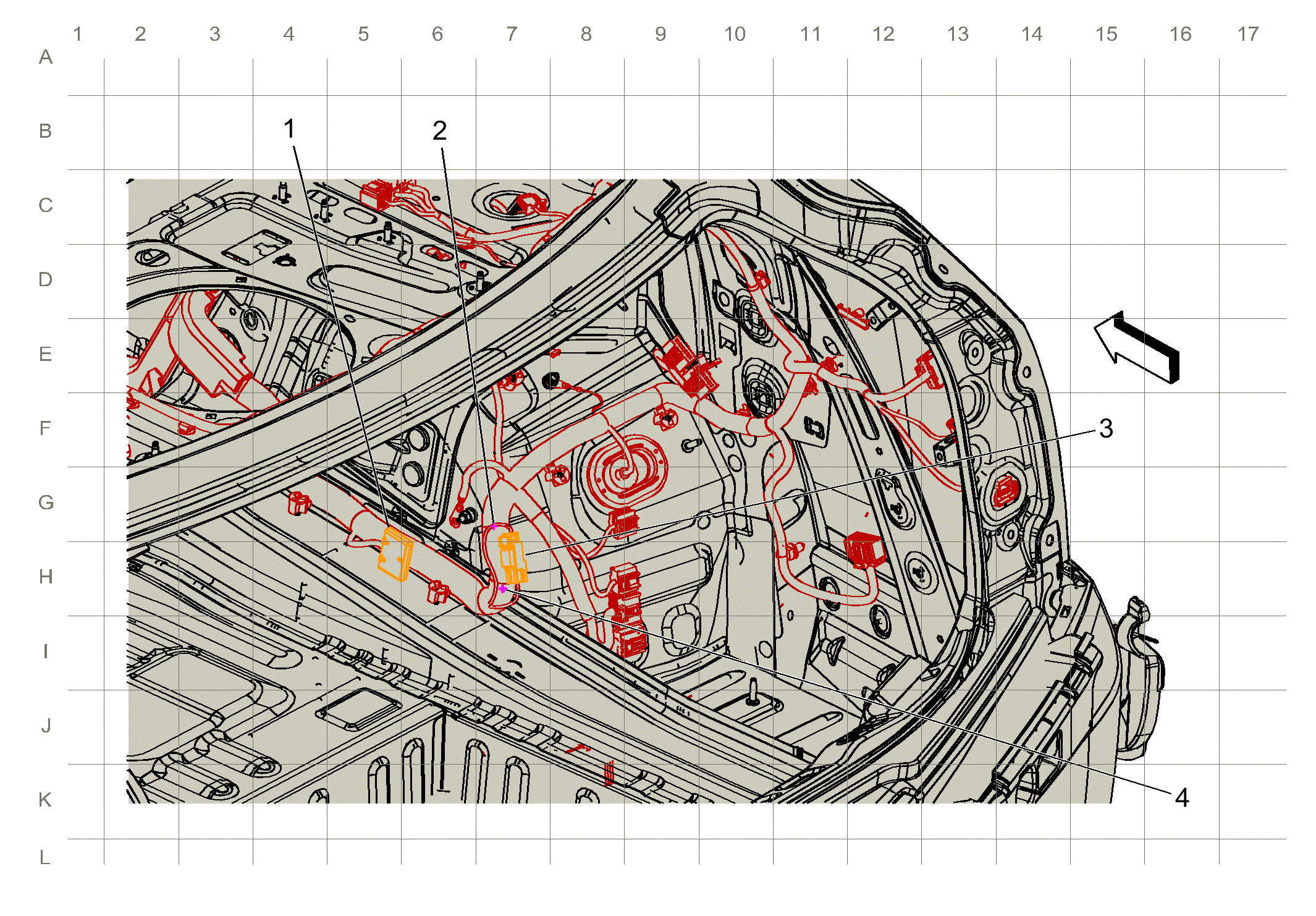

Body Harness Routing - Right Side of Rear Compartment (Sedan)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. JX400 Body Harness JX400 Splice Pack |
| 2. J407 Body Harness |
| 3. X495 Body Harness to Body Harness (2 cavities) X495 Body Harness to Body Harness |
| 4. J406 Body Harness |
