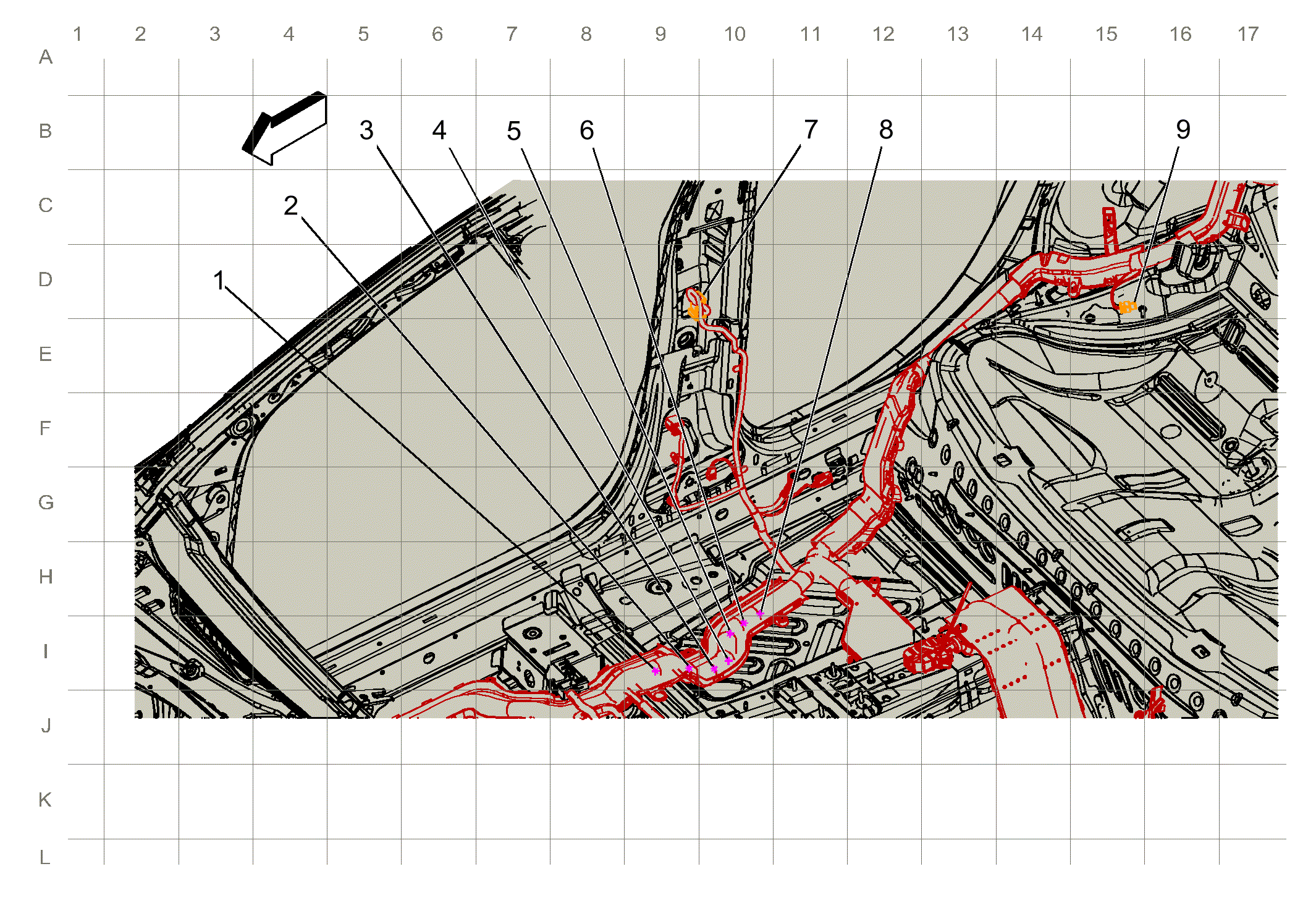

Body Harness Routing - Right Rear of Passenger Compartment (Sedan)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. J322 Body Harness |
| 2. J334 Body Harness (TR6/TUJ) |
| 3. J331 Body Harness (TVN) |
| 4. J335 Body Harness |
| 5. J340 Body Harness |
| 6. J336 Body Harness (Sedan) |
| 7. X800 Body Harness to Right Rear Door Harness (24 cavities) (Sedan) X800 Body Harness to Right Rear Door Harness (Sedan) |
| 8. J337 Body Harness (V2S) |
| 9. X353 Body Harness to Right Rear Seat Side Air Bag Harness (3 cavities) (AYF) X353 Body Harness to Right Rear Seat Side Air Bag Harness (AYF) |
