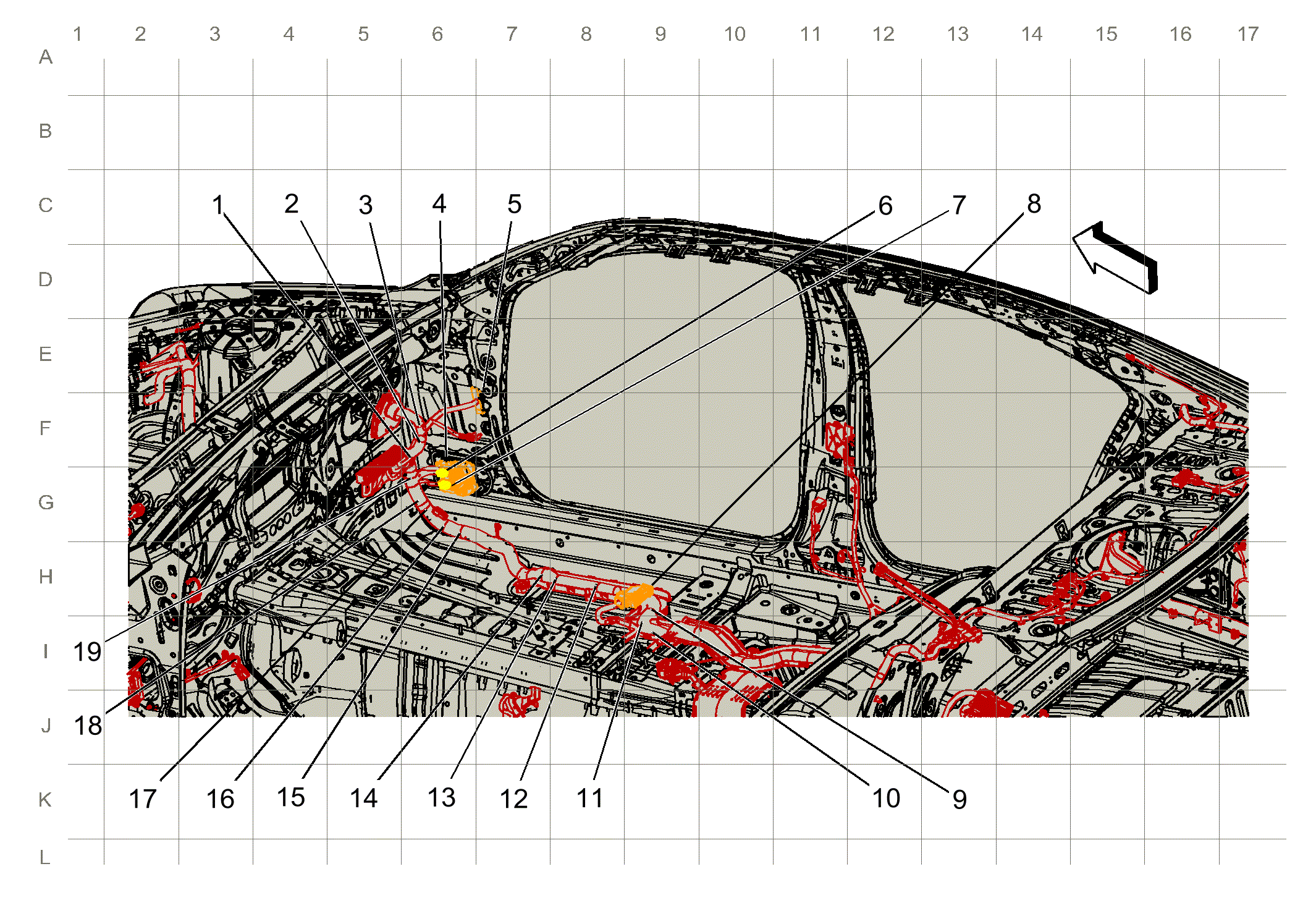

Body Harness Routing - Right Front of Passenger Compartment (Sedan)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. J227 Body Harness |
| 2. J221 Body Harness (F46) |
| 3. J220 Body Harness |
| 4. X275 Instrument Panel Harness to Body Harness (102 cavities) X275 Instrument Panel Harness to Body Harness |
| 5. X600 Passenger Door Harness to Body Harness (48 Cavities) X600 Passenger Door Harness to Body Harness (Sedan) |
| 6. X221 Body Harness COAX to Instrument Panel Harness COAX (1 Cavity) X221 Body Harness to Instrument Panel Harness |
| 7. X222 Body Harness COAX to Instrument Panel Harness COAX (1 Cavity) X222 Body Harness to Instrument Panel Harness |
| 8. X320 Body Harness to Passenger Seat Harness (42 cavities) X320 Body Harness to Passenger Seat Harness |
| 9. J333 Body Harness |
| 10. J330 Body Harness (KA1+(UVC/V2S)) |
| 11. J203 Body Harness |
| 12. J332 Body Harness (VPH) |
| 13. J328 Body Harness |
| 14. J329 Body Harness |
| 15. J327 Body Harness (VPH) |
| 16. J222 Body Harness |
| 17. J223 Body Harness |
| 18. J224 Body Harness |
| 19. J228 Body Harness |
