Body Harness Routing - Rear Window Shelf (Sedan)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

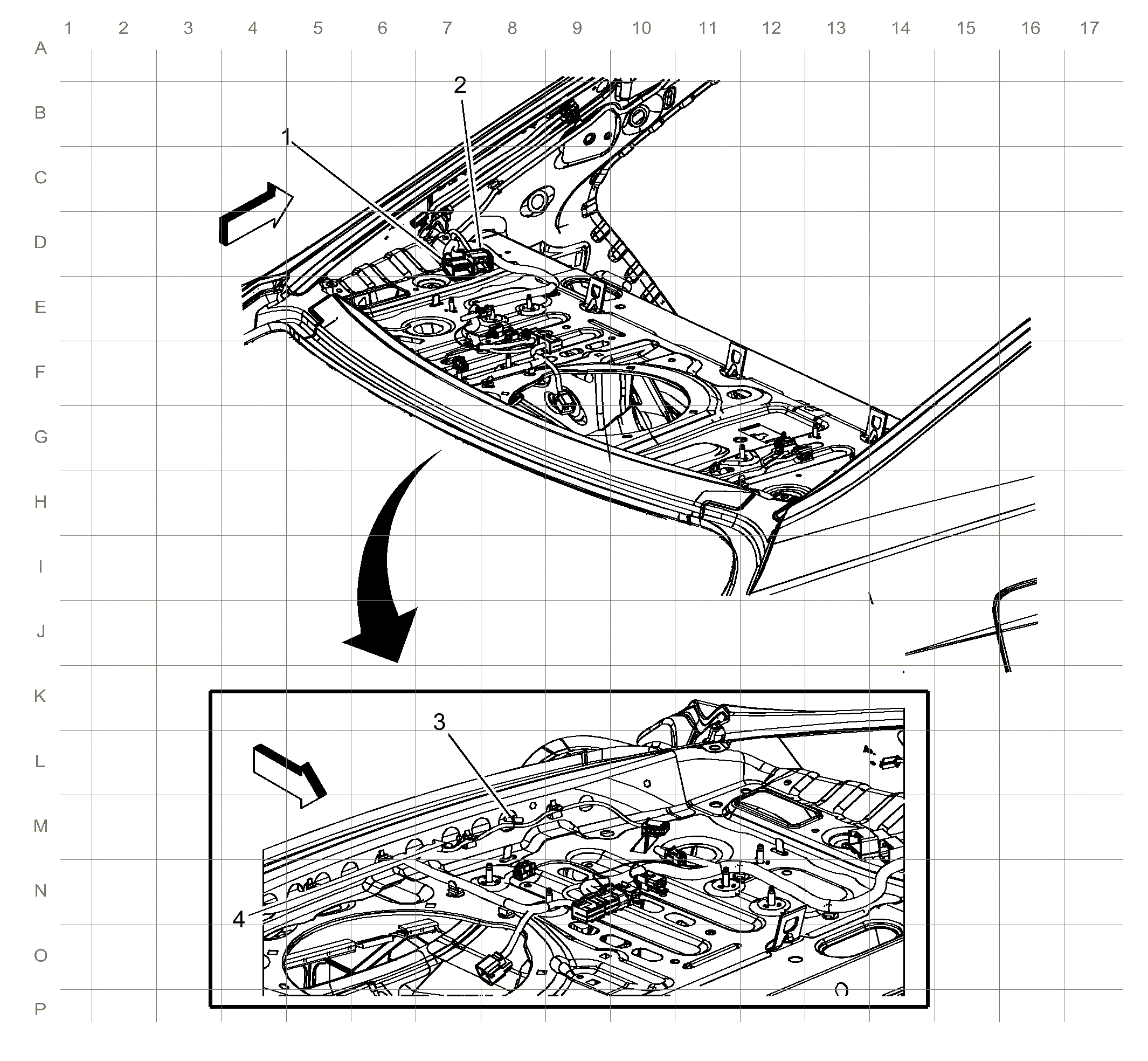

Fig 1: Body Harness Routing - Rear Window Shelf (Sedan)
GM4055824Courtesy of GENERAL MOTORS COMPANY
Items
1. X335 Headliner Harness to Body Harness (18 cavities) X335 Headliner Harness to Body Harness
2. X337 Headliner Harness to Body Harness (14 cavities) X337 Headliner Harness to Body Harness
3. J410 Body Harness
4. J409 Body Harness
